ENSP (Enterprise Network Simulation Platform) is Huawei's advanced network simulator, which provides realistic simulation of enterprise-level routers, switches, and firewalls. It supports drag-and-drop topology creation, Huawei VRP system command line (CLI), and packet capture and other protocol analysis tools. With cloud integration and distributed deployment capabilities, it can efficiently test complex configurations, troubleshoot faults, and verify network designs. It is suitable for education, certification training, and enterprise pre-deployment testing.
user community
Huawei ensp function introduction
1. It is a very good tool for TXs who want to learn network device configuration and management by themselves! It is a bit like GNS3. You can add AR1220 routers and S5700 and S3700 switches. It consumes a lot of memory and the CPU usage is very low. General experiments can be completed. It is another powerful tool for Huawei to learn and test before implementation.
2. It can simulate Huawei routers and switches, and can be bridged to physical network cards. It is a very good simulation software. The simulation can be done better. Huawei's simulator is really great. Can work with cisco Compare with the simulator, you can learn from cisco's PT in the subsequent development.
3. There are fewer devices, and it takes up more resources. It is really usable, and it has a graphical interface and can build your own topology. Huawei's simulator is similar to Cisco's Packettracer, but its functions are not very powerful. It's the router The model number of the switch is a bit missing.
4. It is indeed more user-friendly, similar to GNS3. The only disadvantage is that the memory usage is relatively high. Each device takes up more than 200 MB of memory. If the memory is small, the machine may be a little tight.
5. Although the current router only has AR1220 and the switch is 57003700...it is not like Cisco that provides many equipment models...but it has to be said that it has taken a very important step. I believe it will be continuously improved in the future.
Huawei ensp software features
Highly simulated
It can simulate most features of Huawei AR routers and x7 series switches.
Can simulate PC terminals, Hubs, clouds, Frame Relay switches, etc.
Simulate device configuration functions and quickly learn Huawei command line.
It can simulate large-scale equipment networking.
It can be connected to real network devices through real network cards.
will capture packets and visually display the protocol interaction process.
Graphical operation
Supports operations such as topology creation, modification, deletion, and saving.
Supports device dragging and interface connection operations.
Through different colors, the operating status of the equipment and interfaces can be intuitively reflected.
A large number of engineering cases are preset and can be opened directly for drill learning.
Distributed deployment
Supports single-machine version and multi-machine version, supporting networking training scenarios.
The multi-machine networking scenario can simulate a maximum network scale of 200 devices.
Free and open to the public
Huawei opens eNSP to the outside world for free. You can download and install it directly and use it without applying for a license.
It can be used by beginners, professionals, students, lecturers, and technicians, and everyone can use it according to their needs.
Introduction to new topology of Huawei ensp

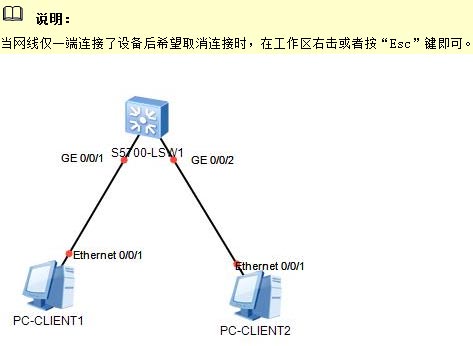

Topology is the basis for network experiments. This section uses a switch and two PCs to build a small topology as an example to introduce how to build a simple topology.
Operation steps
1. Start the eNSP client.
2. Add a switch and two PCs to the workspace.
Select in the device category area.
Select the specific model "S5700" in the device model area.
Click the left key in the workspace to complete, or drag the device directly to the workspace.
Refer to the above steps to add two PCs to the workspace. You can also add more devices to create a larger topology.
3. Add two network cables to the workspace to connect the two PCs to the switch.
Select in the device category area.
Select the specific model "Auto" in the device model area.
Click the switch and then a PC in the workspace.
Similar steps to connect the switch and another PC.
4. Start the equipment in the workspace. Right-click the device and select Start. You can also select an area in the workspace with the mouse and click on the toolbar to start the devices in this area in batches.
5. Double-click the switch icon in the workspace to directly enter the command line interface.
6. Click Save on the toolbar, enter a name, and save the topology.
Huawei ensp FAQ

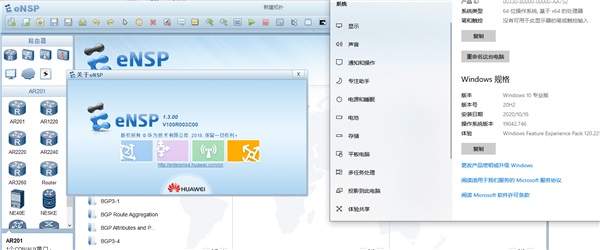

How to install on Win10?
What needs special reminder is:
Do not install the software in a Chinese directory, as it will fail to start and cause many inexplicable error messages. Remember this.
When installing a software package on win 10 64-bit system, click the installation package---right-click and run as administrator until the program installation is completed.
After installing the software, don’t rush to open it. Set the firewall’s permission rules as follows:
1. Open the win 10 control panel.
2. Click System and Security, select Allow applications through Windows Firewall, click Change Settings, and allow all application processes related to the ensp simulation main program to be allowed on the network.
3. Click OK to save the settings, and the router in the ensp simulator can be started.
4. If it cannot be started, restart the ENSP simulator and re-register AR_Base.
At this point, the above methods have been used, and the router should be able to get up.
Huawei ensp update log
BUG fixes:
1. Fixed the problem that the CE/NE/CX simulations could not be started the second time after they were successfully started for the first time.
2. Fixed the problem that the command line of CE/NE/CX simulations occasionally cannot be connected after frequent start and stop operations.
