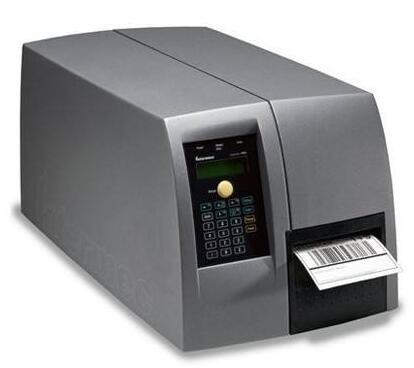

IntermecPX4i parameters
Print:
Printing method: Thermal transfer printing
Printing accuracy: 203dpi (8 points millimeters); 300dpi (11.8 points millimeters); 406dpi (16 points millimeters)
Printing speed: PX4i: 100-300 mm seconds optional
Maximum printing width: PX4i: 110mm;
Maximum printing length: 4095mm (203dpi); 2775mm (300dpi)
Printing media:
Form: rolled or folded die-cut or continuous labels, tags, tickets;
Type: Thermal and thermal transfer paper or film
Maximum base paper width: 120mm (PX4);
Minimum base paper width: 51mm (PX4i);
Minimum media length: 13mm
Printing media thickness: 0.06- -0.25mm
Maximum outer diameter of roll media: 213mm
Core diameter: 38-76mm
Media handling:
Standard media positioning mechanism: penetration type and black mark
Removable media positioning sensor
Built-in label automatic peeling mechanism (optional): factory installed
Built-in automatic cutter direction selection)
Ribbon:
Type: wax base, mixed base, resin
Width: 51- 120mm
Length: 600m
Peripherals:
Monitor:
2x16 LCD display with backlight;
3 LED status indicators
Keyboard:
9 numeric keys and 12 function keys panel
Optional full ASCII character keyboard panel
Optional full QWERTY standard external keyboard
Interface:
Standard configuration: built-in 10/100BaseT Ethernet interface RJ45, RS232 serial port, USB 2.0 and barcode light pen interface
Optional: EasyLAN Ethernet 10/100BaseT
Built-in IBM Twinax/Coax
Built-in EasyL AN Wireless IEEE 802.11b/g wireless network card
IEE 1284 parallel port card
Dual serial port card (including RS232, RS422, RS485 and current loop)
Industrial IO card (8 digital I/O, 4 analog IO, RS232/422/485)
EasyLAN supports network protocols: TCPIP Suite, LPR/LPD, FTP, BOOTP, DHCP.HTTP, SNMP, SMTP, etc.
EasyLAN wireless network:
Supports WEP 128-bit keys
Supports IEEE 802.1x confidentiality protocol
Flexible configuration of antenna feeder system to expand coverage
Software:
Printer languages: Fingerprint, Direct Protocol and IPL3
Windows driver software: Intermec InterDriver
Tool software: Intermec Printset
Application software: Intermec LabelShop label layout design software
Network management software: Intermec Printer Network Manager (IPNM)
IntermecPX4i driver installation instructions

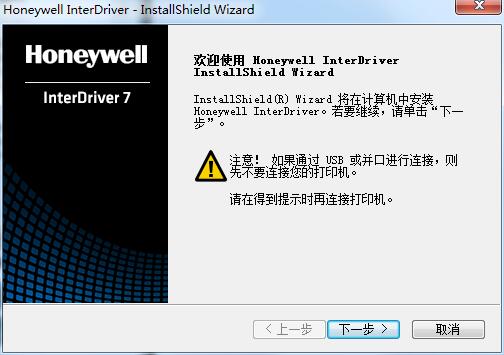

1. Download the IntermecPX4i driver official version installation package from Huajun Software Park. After unzipping, double-click the exe program to enter the installation wizard and click Next

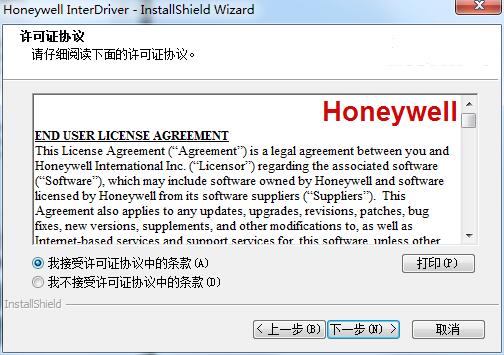

2. Read the license agreement, click "I accept..." and click Next

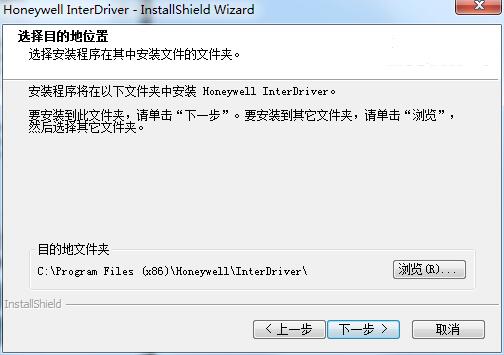

3. Click "Browse" to select the installation folder. Generally, it is installed on the C drive of the computer by default. It is recommended to install on the D drive. Click Next.

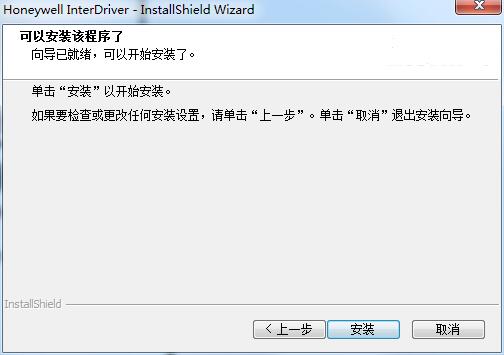

4. The installation program is ready, click Install

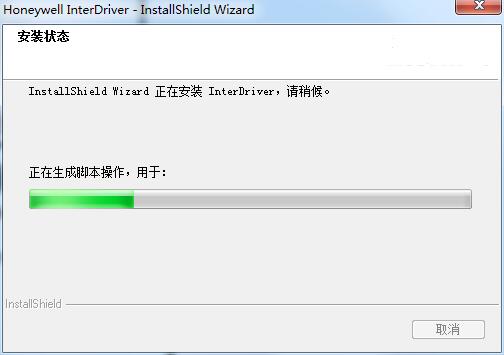

5.The IntermecPX4i driver is being installed, please wait patiently.
6. After the installation is completed, the user will follow the prompts to connect the printer to the computer and complete the installation steps.
IntermecPX4i driver update log
1. Fixed other bugs;
2. Optimized software compatibility.
