WirelessMon Chinese Green Version, almost all notebook computers on the market now have built-in wireless network functions. Although wireless networks bring us convenience, wireless networks are limited by technical problems, so the stability and quality of the lines are not as good as wired networks.
WirelessMon can list relevant information such as wireless networks or base stations near the current computer, and also list the signal strength between the computer and the base stations;WirelessMon can also monitor the transmission speed of the wireless network in real time so that we can understand the download speed or stability of the network.
WirelessMon function introduction
1. List the signal strength between the computer and the base station
2. Real-time monitoring of wireless network transmission speed
3. To let us know the download speed or stability of the network
WirelessMon application introduction
The wireless router can set the signal strength. This is the monitoring data when the router is set to the minimum transmit power of 28mW. You can see that the signal is -52dBm/47%. At the same location, when the signal monitoring data is set to 281mW, it can be clearly seen that the signal edge is strong, which is -38dBm/65%. However, it is recommended that you do not exceed 100mW, otherwise it will be harmful to the human body. DD-WRT defaults to the smallest 28mW. As far as I am concerned, 28mW is enough.

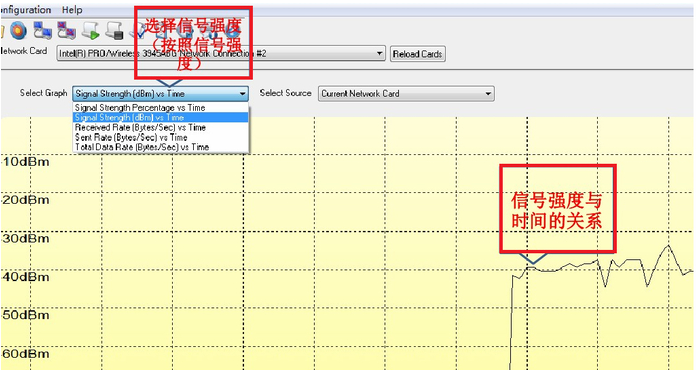

In addition to the wireless signal scanning function mentioned above, Wirelessmon also provides functions such as signal strength detection, monitoring of wireless network transmission speed, and icon generation. Click on the graphs on the left side of the main interface. The abscissa is the time coordinate, and the ordinate allows us to select parameters, including signal strength percentage, signal strength (DBM), received rate, sent rate, total data rate, etc., so that we can understand the download speed of the network or its stability.
How to install WirelessMon

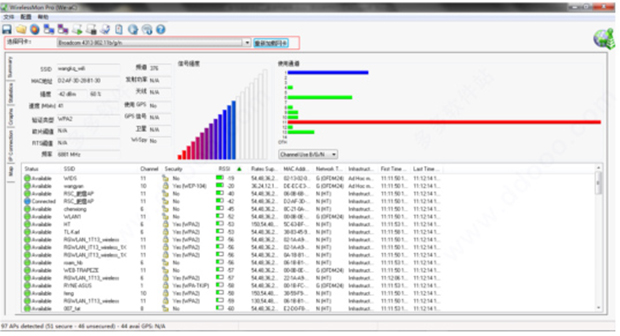

The installation process is very simple. After completion, open the main interface of Wirelessmon. You can select the corresponding wireless network card through the drop-down menu on the right side of select network card. It should be noted that since it is called WirelessMon, it can only monitor the wireless network and cannot support wired network speed testing.
WirelessMon FAQ
How to solve the problem "The corresponding counter name for this network card cannot be found"?
This could mean that the performance counters are disabled, the user does not have permission to access them, or they are missing on the system.
Windows XP/2K: This may mean that your machine's performance counters are disabled. Please check if the registry key "HKEY_LOCAL_MACHINE SOFTWARE Microsoft Windows NT CurrentVersion Perflib Disable Performance Counters" exists, if so, check if it is set to 0 and reboot.
Windows Vista: Please check if WirelessMon is running in elevated administrator mode by right-clicking on the exe and selecting Properties, clicking on the Compatibility tab and selecting the "Run this program as an administrator" option.
If it's missing, there's a post in our forums about resolving this issue, and a Microsoft support article about rebuilding performance counters.
My access point's security information displays incorrectly in Windows Vista? what to do
Currently when Vista returns a list of available networks, lists with the same SSID will be treated as the same network, even if they are not and have different security settings. This means Vista will list them all under the same entry with the same security settings, usually the most secure settings in the group.
Can WirelessMon display signal-to-noise ratio?
No, Windows drivers generally do not support retrieving noise measurements for wireless connections, and a manufacturer-specific driver is usually required to access it. WirelessMon also uses passive rather than active scanning of the network, which also prevents gain in signal-to-noise ratio.
WirelessMon update log:
1. The details are more outstanding!
2. BUG gone without a trace
