Sketch Master plug-in official version

Sketch Master plug-in software features

The Sketch Master plug-in provides the most comprehensive architectural design functions

Supports simple wiring functions, making design drawings easier

​​Supports the function of creating surfaces or welding lines to assist you in surface

Supports seven example models, you can click Examples to view

​​Provides camera function to add camera parameters when designing the model

Supports array function, you can add arrays when labeling

Supports Bezier curves, which can be used when designing surfaces

It also supports the vignetting function and is compatible with most vignetting

Features of Sketch Master plug-in software

​ ​​Update plugins with one click

We need to keep the plug-in up to date at all times. Now we can easily click the one-click update plug-in in the menu or toolbar to do it instantly.

Added full screen mode switching

      新增全屏模式切换功能，一次切换为隐藏工具栏的最大化模式，二次切换为只留菜单的专家模式，再次则恢复原始窗口，满足各种需求。

Expandable shortcut panel

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​                                                                                              Now you can freely stretch the shortcut panel to accommodate up to 60 shortcut icons, and drag your commonly used functions out of the main menu!

Sketch Master plug-in installation steps

​ ​ 1. Download the Sketch Master software. Here is the complete set of Architectural Sketch Master plug-ins, click to open.

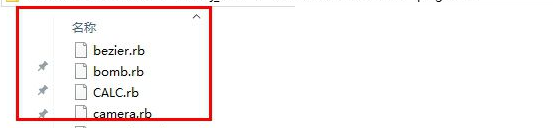

​ ​ 2. Click plugins to open. Many plugins are displayed here, including camera.rb and DelCopEdges.rb.

3. Then start your Sketch Master software and click Install

​​ 4. You need to enter the user’s name to complete the installation. Click to enter Huajun Software Park

5. The installation program has been completed and Skecthup5.0 is installed on the computer.

​ 6. Run Sketch Master and find the system settings or system properties on the software window.

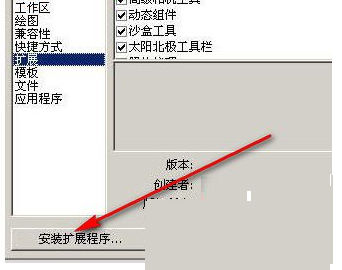

​​ 7. Click to install the extension plug-in. Just add the Sketch Master plug-in you downloaded here.

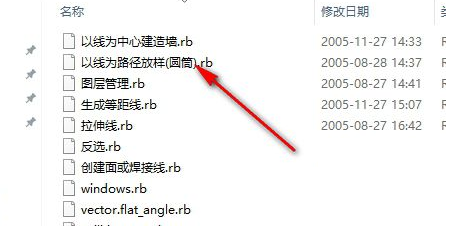

8. For example, click on the line as path stakeout (cylinder).rb to open it, so that it can be installed in Sketch Master.

9. Finally, find the line-based path lofting (cylinder).rb you loaded on the toolbar and you can design the model.

List of the 50 most useful sketchup sketch master plug-ins

​ ​ 1. LibFredo6 (multi-language compilation library) – Most plug-ins of Fredo6 need to call this compilation library

​ ​ 2. TTLib (TT plug-in compilation library) – Most of ThomThom’s plug-ins need to call this compilation library

3. Joint Push Pull – also called super push and pull, it can push and pull multiple surfaces or curved surfaces at the same time

​ 4. Round Corner (three-dimensional chamfering) – especially three-sided chamfering is very convenient

​ 5. Curviloft (curve lofting) – generate surface model through space curve

​ 6. FredoTools (Fredo Toolbox) – a set of practical gadgets integrated by Fredo6

​ 7. Tools on Surface – Draw graphics directly on the surface

​​ 8. Toposhaper (terrain outline) – a professional terrain production tool that basically takes into account various situations in terrain production.

​ 9. Animator (parametric animator) – specially used to create keyframe animations

​ 10. Fredoscale (free scaling) – can directly stretch, bend, twist and other deformations on the entire object

​ ​ 11. QuadFaceTools – can convert the surface structure of an object into a quadrilateral topological structure for easy surface editing

​ 12. Selection Toys (Enhanced Selection Tool) – Assists in selecting groups, components, edges, faces, materials and more selection filters

​ 13. CleanUp (waste line cleaning) – By cleaning up waste lines, you can delete redundant materials, layers, and styles, making your model run faster

14. Fixit101 (Entity Repair) – Convert ordinary groups into entities

​ 15. Solid Inspector 2 (Solid Detection and Repair) – If you need 3D printing, you must use this to repair holes, reverse surfaces, etc. in the model

16. Edge Tools – used to process line ends and organize and simplify the boundaries of complex models

17. Architect Tools – Mainly used to process imported general architectural drawings, which can flatten building planes and generate block buildings

​ 18. UV Toolkit (Texture Coordinate Adjustment) – Automatically adapt the texture to the quadrilateral surface

19. SketchUV (Texture Coordinate Adjustment Tool) – SketchUp’s most powerful UV texture coordinate adjustment tool

​ ​ 20. ($)Vertex Tools (Vertex Editor) - enables SketchUp editing functions to go deep into the point level, allowing you to edit more complex objects

​ ​ 21. ($)SUbD (Parametric Subdivision Surface) – Surface subdivision tool, which can be used to create any shape when combined with QuadFaceTools and Vertex Tools

22. ($)Profile Builder 2 (parametric modeling) – As long as there are unit elements and paths, you can quickly generate parametric models

​ ​ 23. ($)Artisan (model subdivision and smoothing) – Not mentioned, it is a must for surface modeling

24. Split Tools (TIG) – Split surface toolset

​ 25. Selection Memory – can save selection sets

​ ​ 26. Bezier Spline (Bezier Curve) – a curve drawing tool that also has the functions of welding and bisecting curves

​​ 27. 2D Tools (two-dimensional toolkit) – a practical tool set for two-dimensional plane drawing and editing of lines and surfaces

​ ​ 28. Workplane (work reference plane)

29. Extrude Tools (surface lofting tool package)

30. ($)s4u To Components

​ 31. Layers Panel (new layer panel) – Photoshop-like layer management panel function and interface

32. 1001 bit – A toolset for creating doors, windows, roofs and other architectural elements

33. Shape Bender – allows you to bend any object to match a curve

34. Flowify (Flow along the surface)

35. TIG-weld (curve welding)

36. Scale and Rotate Multiple

37. Upright Extrude (Stay upright and follow)

38. Exploded Arc Centerpoint Finder (mark the center point of the exploded arc)

39. Raytracer

40. SDM Floor Generator

​ 41. SDM Deck Builder (Parametric Deck)

42. Zorro 2 (Zorro Cut 2)

43. Mirror

44. s4u Make Face (automatic cover)

45. 2D Boolean

46. Material Tools

47. Projections (vertical guide line tool)

48. Faces2Groups

49. Section Cut Face (section fill)

50. ($)s4u Make Box

Sketch Master plug-in update log

The Sketch Master plug-in provides example functions

Supports nine script insertion methods

You can choose a previs to load into the extension interface for use

Provides thick and thin line drawing function

You can design strings on Sketch Master

​​​Added sketchup.rb plug-in

You can also design the mesh through mesh additions. rb

Support new materials. rb material extension function
