STC-ISP (burning software) software functions
1. The basic composition, performance characteristics and application methods of 8051 microcontroller, based on Flash memory
2. ISP programming in the system and IAP programming in the application technology, combined with the currently popular
3. Keil C51 compiler environment, using C language for programming applications of STC15 series microcontrollers,
4. Give full play to the technical advantages of C51 and comprehensively demonstrate the characteristics of the STC15 series microcontrollers.
5. Such as on-chip crystal oscillator clock adjustment, configuring the chip into a microcontroller with simulation functions,
6. Online simulation debugging in Keil uVision4 environment, high-speed execution of 1T single-cycle instructions,
7. On-chip resources such as I2C, SPI, ADC, and a variety of off-chip expansion applications provide convenience for readers to get started quickly.

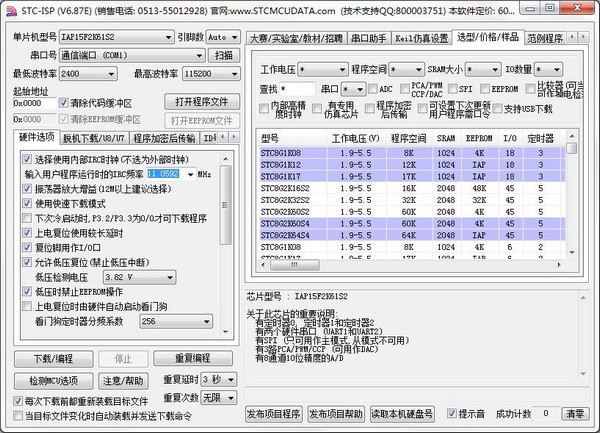

STC-ISP (burning software) software features
Download user program to u8/u7 programmer for offline download
Clear user offline code and data in u8/u7 programmer
Set the maximum baud rate for u8/u7 offline download to 115200
s-vcc output voltage 5.0v√power-on delay time 0.5s
Use u/u7 to continue powering the target chip after the online download is completed
Use 8 to continue powering the target chip after the offline download is completed
Offline programming quantity 10000 Handshake timeout 5
STC-ISP (burning software) precautions
The tools embedded in this software (such as serial port assistant, baud rate timer, etc.) can be used independently.
How to use it: Right-click on the tool selection page to make a selection.
Close independently used tools to return to the main interface again
STC-ISP (burning software) FAQ
What should I do if I keep testing the microcontroller?
There may be many problems with this. According to the situation encountered by the editor:
1. TXD and RXD are connected wrongly. The downloader TXD is connected to the microcontroller RXD, and RXD is connected to the microcontroller TXD.
2. The crystal oscillator is not plugged in or is loose.
3. The microcontroller model is wrong. If it is STC89c52RC, you must choose the one with RC at the end. STC89c52 will not work.
4. If you need a cold start, you need to cut off the power of the microcontroller. Some people just press the power switch. If the connected cable is connected, just unplug and plug the vcc once.
STC-ISP (burning software) update log
1: Optimized performance
2: We are serious about solving bug problems
Huajun editor recommends:
STC-ISP (burning software), the software is a very practical software. After continuous optimization, the functions are very good. It is highly recommended for users who need the download experience. In addition, it is also recommended for everyone to useCruzr,FastCAM automatic programming nesting software,Hanwen production planning and scheduling software,Green apple weighing software,Machining process quota calculatorWait, come and download it
