NiceLabel barcode label design software features:
Business barcode label design
Design and print, quickly create and print standard or custom labels.
Automation, automating the label printing process and eliminating human errors
Centralized control to ensure consistent labeling and branding.
Centralized control of label barcode printing process
Centralize control, eliminate errors and simplify labeling operations, Control Center - online management module
NiceLabel barcode label design software installation steps:
1. Download the NiceLabel barcode label design software from this site, unzip it and double-click the .exe. An installation interface will appear. Click "Next" to continue.
2. Read the NiceLabel barcode label design software license agreement, check "I accept" and click "Next" to continue.
3. After selecting the software version to be installed, install the file on the D drive, click "Browse" to modify the installation path, check the additional icon, and click "Install" to proceed to the next step.
4. NiceLabel barcode label design software is being installed. The process is very fast. Please wait patiently.
5. NiceLabel barcode label design software is installed. Click "Finish" to exit this interface.
How to use NiceLabel barcode label design software:
1. Create basic tags:
Mainly in the "Label Wizard" that pops up when creating a label, select the printer, define the label and size, page layout and other settings
2. Create immutable text:

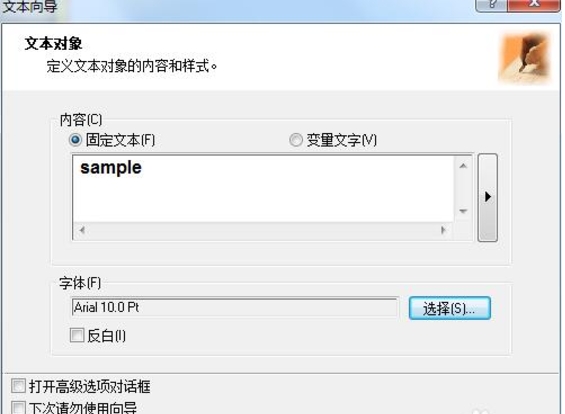

Click the Text button in the toolbox and the text cursor will appear on the screen. Move the cursor to the location where you want to place the text on the label. Click the mouse button and a dialog box showing the object's properties will open.
3. Enter the text "sample" and click the Finish button. (You can click the selection button after the "Font" option to modify the font format of the entered text)
4. Insert barcode:
Click the Barcode button in the toolbox, move the cursor to the desired position on the label, but click the mouse button to open the Barcode Properties dialog box;

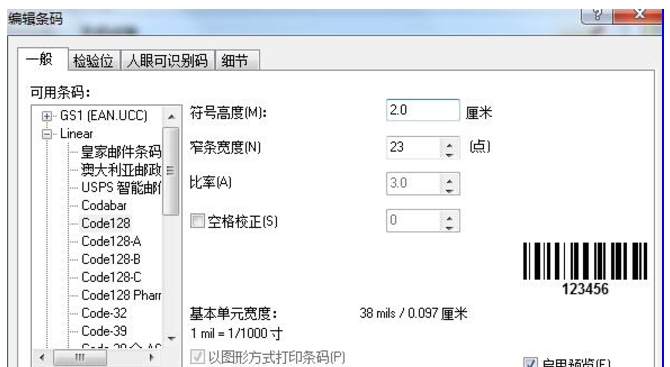

Enter "123456" as the barcode content, click the "Define" button to open the "Edit Barcode" dialog box
5. Select the barcode type (this article uses code 128 as an example), click the OK button, return to the properties dialog box, and click the Finish button. You can drag the barcode to the desired position and drag the object handle to change the size of the object. The handle is a rectangular box surrounding the selected object.
6. Insert pictures:
Click the picture button in the toolbox, move the cursor to the ideal position of the label, click the mouse button, browse the pictures on your hard drive in the pop-up dialog box, select the picture to be inserted, and click the Open button
7. Use the alignment tools in the design toolbar on the right to achieve the ideal distribution of objects. The picture below is the adjusted rendering.
8. Save the label:
Click the save icon on the toolbar, type the label name in the pop-up dialog box and save it.
NiceLabel barcode label design software FAQ:
1. How to adjust the barcode characters in NiceLabel?
1. First create a barcode in NiceLabel. This article takes the Code128 code as an example (the data source is NL1256)

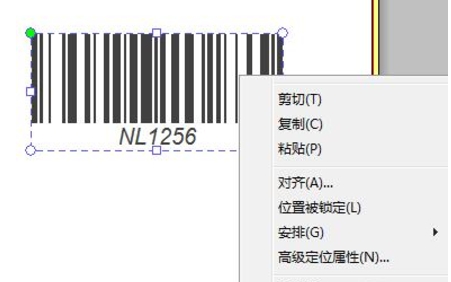

2. Right-click the barcode, select "Barcode Properties" in the pop-up list, and the "Edit Barcode" dialog box will pop up.

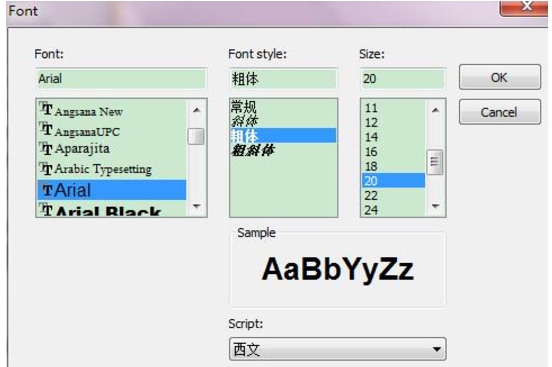

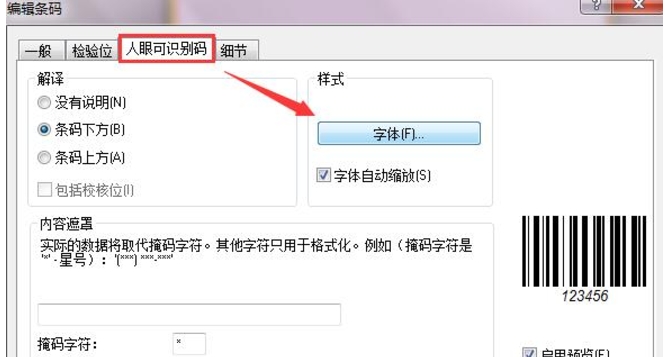

3. Select the "Human Eye Recognizable" tab and click the "Font" button. Open the font dialog box, where you can adjust the characters under the NiceLabel barcode according to your needs. (Including adjustments to fonts, font styles, font sizes, etc.)

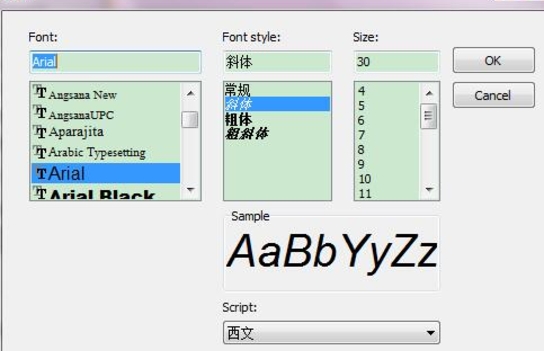

4. The following is a simple adjusted diagram made by the editor:
5. In order to make it easier for everyone to create labels more efficiently, NiceLabel has corresponding shortcut icons in the text toolbar in the upper left corner. You can adjust the characters in the "text" object very quickly, and at the same time you can intuitively preview the effect.
NiceLabel barcode label design software update log:
1: Optimized performance
2: We are serious about solving bug problems
|
Huajun editor recommends: NiceLabel barcode label design software helps users quickly design labels and supports graphics and barcode insertion and editing functions. NiceLabel barcode label design software can realize rapid inbound and outbound registration and search. In addition, barcode label printing software and Zhonglang barcode label printing software are recommended to everyone. Welcome to download and use. |
