LG mobile phone USB driver (LG CDMA USB Driver) software introduction
LG mobile phone CDMAUSB driver is the LG mobile phone connected to the computer driver USB data cable. The mobile phone itself supports USB signals, so use LG original drivers, such as CU6260, CU6360, CU6660, C610, C620, C63 0, CU8280, CU8380, W800 and other COM data cables. The mobile phone itself only supports COM signals. The computer side is also COM. There is an RS232 level conversion chip in the middle of the line, such as the MAX232 chip of Maxim Company (not used when connected to the computer).
LG mobile phone USB driver (LG CDMA USB Driver) installation steps

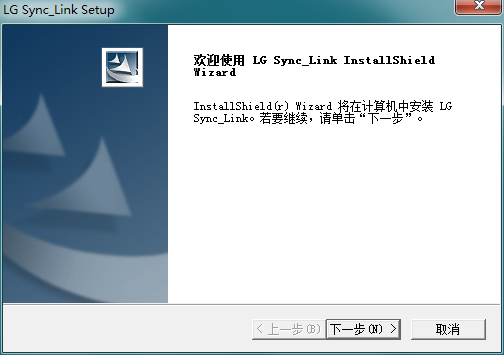

1. Download the LG mobile phone USB driver (LG CDMA USB Driver) and extract it to the current folder, click on the LGSync_Link_chi_04_08_12.exee application to enter the installation wizard interface, and then click Next.

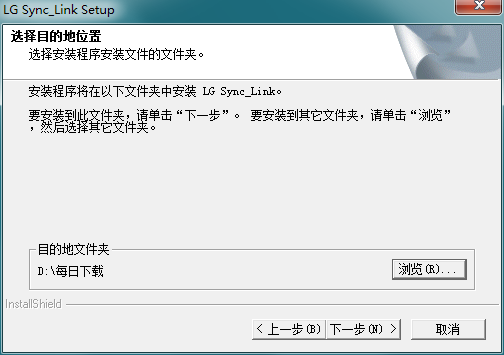

2. Select the software installation location interface. Huajun editor recommends that users install it on the D drive, select the installation location and click Next.

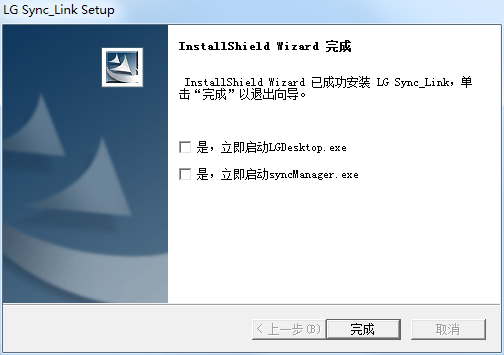

3. After the installation of the LG mobile phone USB driver (LG CDMA USB Driver) is completed, you can log in and use it.
LG Mobile Phone USB Driver (LG CDMA USB Driver) Instructions
LG mobile phone connection computer driver
USB data cable
If the phone itself supports USB signal, use LG original driver, such as CU6260, CU6360, CU6660, C610, C620, C630, CU8280, CU8380, W800, etc.
COM data cable
The mobile phone itself only supports COM signals, and the computer side also supports COM. There is an RS232 level conversion chip in the middle of the line, such as Maxim's MAX232 chip.
(You don’t need a driver when connecting to a computer, and new devices will not be found in the device manager). You should be able to connect after opening the application software, such as 8080, 8180, 8188, etc.
USB to COM data cable
There is also a USB data to COM data cable. There is a data protocol conversion chip in the middle of this data cable, such as the prolific company's
PL-2303 USB to Serial bridge For the Controller conversion chip, you must install the PL-2303 driver instead of the LG original driver. PL-2303 latest driver download
Some machines produced later seem to support both USB signals and COM signals. You can select "Data Transfer Rate" from the mobile phone menu.
To judge, if the mobile phone itself supports USB signal, you can use a USB data cable above MOTO V860.
Production of USB cable
Buy a cable adapter, use only its plug, prepare a USB extension cable, and wire it according to the diagram.
There are only two charging cables in the wired charger, but they need a plug with 4 pins. Scud's 8080 charger has 3 pins that need to be pulled out and replaced. The ground wire on the 19th pin does not need to be moved.
There are 5 wires in USB. The gray wires are useless, only 4 are used. Generally speaking, red is 5V (I connected a 100 ohm resistor in series to the plug to protect the phone), black is ground, and green and white are signal wires. (The colors of the wires may be different depending on the USB wire.) You can use a meter to measure it.
By connecting a red 5V series diode and a 20 ohm resistor to reduce the voltage and limit the current, the data line can be charged with a charging pin (pin 21).
The wiring position will be different depending on the arrangement of the plug, but the pin numbers are still as shown in the picture, with the welding position facing you, the plug with three slots facing down, and the first pin on the right is the first pin.
The data transmission of the mobile phone needs to be set to USB, but my 6660 will set itself to USB after plugging in the USB data cable, and there will be a button sound.
Some machines produced later seem to support USB signals and COM signals, which can be judged from the "data transfer rate" on the mobile phone menu.
The USB cable cannot be recognized after it is connected to the computer. Replace the signal cable.
I added a charging function to this cable, so it has a little extra

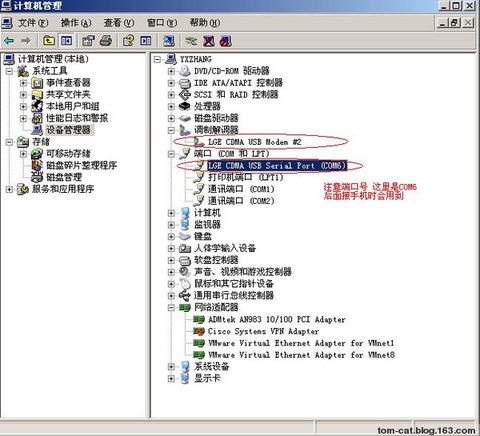

For the serial port cable, first install the LG CDMA original driver, and then connect it to the mobile phone. The computer will discover the new hardware and automatically install the corresponding driver, and identify the following three devices.
LG mobile phone USB driver (LG CDMA USB Driver) FAQ
Question: How to uninstall the LG mobile phone USB driver (LG CDMA USB Driver)?

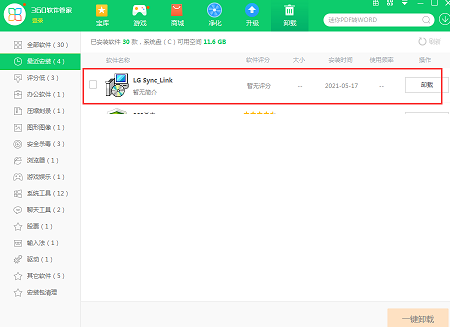

Answer: Method 1: Install and open the computer manager software, select the software management option, click the uninstall option, and find the LG mobile phone USB driver (LG CDMA USB Driver), click to uninstall

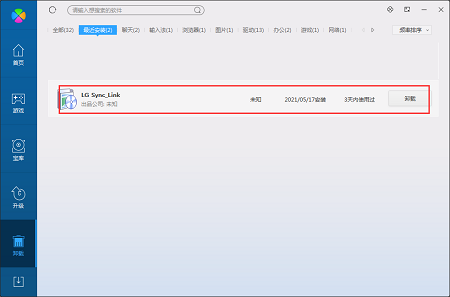

Method 2: Install and open360 software manager, find the LG mobile phone USB driver (LG CDMA USB Driver) in the list of uninstall options, and click to uninstall it.
Comparison of similar software
Huawei c8650usb driverThe official version is a USB driver created for Huawei c8650 mobile phone. Huawei c8650usb driver uses 3.5-inch TFT large screen and Android 2.3 operating system, supports 3G/WIFI applications, and has powerful entertainment functions. Huawei c8650usb driver not only inherits the advantages of the previous version, but also improves the hardware configuration and system version.
Mitsubishi plc programming cable USB driverThe official version is a PLC programming cable driver. Mitsubishi PLC programming cable USB driver is mainly used to solve the problem that Mitsubishi PLC programming cable cannot be recognized by the computer or cannot be used normally. Mitsubishi PLC programming cable USB driver can also support all versions of Windows systems.
Huajun editor recommends:
LG mobile phone USB driver (LG CDMA USB Driver)It allows the mobile phone to be easily connected to the computer and allows the computer to successfully recognize the mobile phone. The LG mobile phone USB driver (LG CDMA USB Driver) software is a software with excellent performance. Everyone has seen it, come and download it and use it!
