Omron PLC programming software software functions
Program generation/transmission/monitoring/printing
I/O table generation/editing
PLC system setting generation/transmission
I/O memory setting/transmission/monitoring
Online editing
Data tracking
Timetable monitoring
Send files to memory cards, etc.
Omron PLC programming software software introduction
Omron PLC programming software CX-Programmer is a programmable controller software that supports cs/cj, cv, c, fqm, cp1h/cp1l, cp1e and other series of instructions. It supports omron's full range of PLCs and offline simulation. It is suitable for those who already have electrical system knowledge, electrical engineers or equivalent.
Omron programming software integrates Omron’s PLC and Components support software, providing a program based on CPS (Component and Network Profile Sheet) integrated development environment. Omron plc programming software version number is cx-onev4 cx-programmer The Chinese version of v9.31 has been tested by anti-virus software and is non-toxic. The installation process is a bit slow, so you need to wait patiently for a few minutes.
Omron PLC programming software installation method
1. After downloading the latest version of the Omron PLC programming software installation package from Huajun Software Park, unzip it

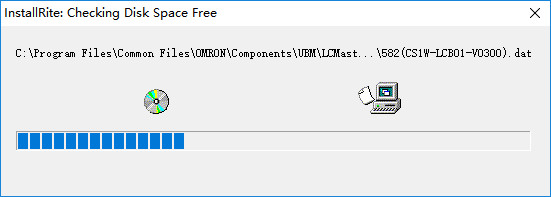

2. Click the "exe" installer to install

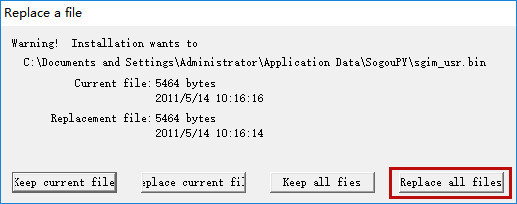

3. Select the last item to replace all files
4. Until the installation is completed

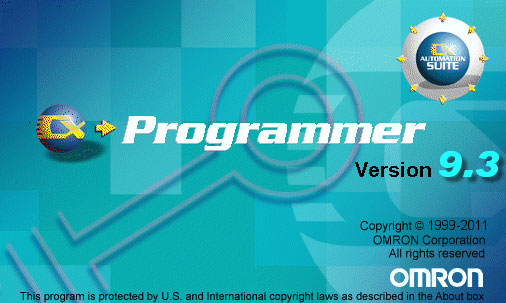

5. Click the start menu to run cx-programmer
Omron PLC programming software frequently asked questions
Question: How many types of Omron PLC are there? What programming software are used?
CPM series, CP series, C series, CQM series, CJ series, CS series and motion controllers, etc. NJ, NX series large PLC software using Sysmac Studio. If you want to get started, it is better to use the CP1H or CJ series, because these two models basically support all of Omron's command systems and can be simulated in software. Omron uses one programming software: CX-Programmer. Earlier software such as SSS is basically no longer used.
Question: Omron plc programming software cannot be uninstalled?
Click on “CXP 9.3 Green installation version.exe", automatically decompressed and installed on the system disk. You cannot uninstall using the software that comes with the system, nor can you use the files in the software installation package to uninstall, because there is only one file in the installation package.
The solution is as follows:
1. Run CXOneRemover, the special uninstall tool for CX-One software, and restart the computer
2. Download a very useful and powerful uninstall tool "Geek Uninstaller", uninstall "CX-server" first, and then uninstall "CX-One", otherwise it is easy to make mistakes.
Question: How to set the memory of function block/SFC in CX-Programmer?
Select PLC—Function Block/SFC Memory—Function Block/SFC Memory Allocation in the menu bar.
Function: Modify the memory allocation of function block/SFC.
Question: Does CX-Programmer version 9.3 support Windows 10 (WIN10)?
Not supported. CX-Programmer 9.61 and above (i.e. CX-ONE 4.40 and above) supports Windows 10 (WIN10).
Omron PLC programming software update log
Ver.9.30 improved features:
1. ST editor viewing function changes
1) Add the function of viewing line number indication in ST editor. You can also specify the line number to jump to.
2) Select the function and registration mark from the word list.
3) When you press the Tab key while the control statement startup function is selected, you can enter the control statement frame very easily.
4) The red wavy line indicates that there is a syntax error in the ST program. No compilation checks are required to detect this.
2. Intelligent input viewing function in FB ladder diagram
You can view the ladder diagram on a task and the FB ladder diagram in smart input mode in the same way.
