caxa wire cutting features
1. Supports fluent/ribbon graphical user interface, and the new interface style is more concise and direct. At the same time, the old user interface style is retained and switched through f9, taking into account the operating habits of new and old users.
2. Supports reading and outputting dwg2010 format files.
3. Supports reading and using line types with strings.
4. You can generate benchmark codes that comply with the latest national standards by modifying the relevant settings of style management.
5. Supports external reference function, and can insert external file links into the current drawing. If an external file changes, other files to which it applies will also be updated the next time they are opened.
6. Supports the design center function, and you can easily share the style settings and graphic elements of drawings through the design center.
7. Supports the style substitution function. This function can be used to directly perform unified overlay operations while drawing, without the need to generate objects and edit them separately.
8. The section line function in caxa electronic drawing board 2013 can set the section line associated boundary when setting the section pattern. This way the next time you edit the boundary, the section line will also change with the boundary.
9. Supports coordinate system display settings. You can set the detailed display parameters of the coordinate system in this function.
10. In the empty command state, directly enter the arithmetic expression to get the calculation result.
11. Supports generating rays and construction lines.
12. Attributes covered by characteristics will be displayed in red.
caxa wire cutting installation steps
1. Download the caxa wire cutting official version installation package from Huajun Software Park, unzip it, and double-click the "Setup.exe" program to start it

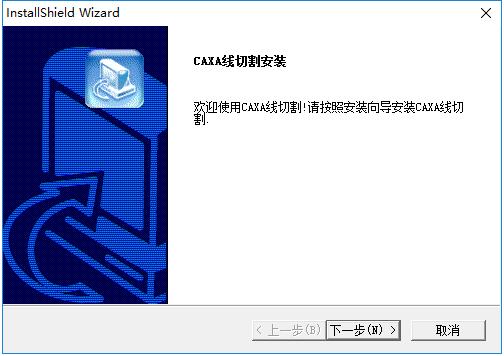

2. Enter the installation wizard and click Next

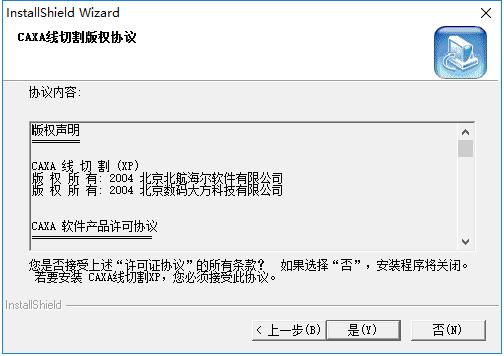

3. Read the license agreement and click Yes to proceed to the next step

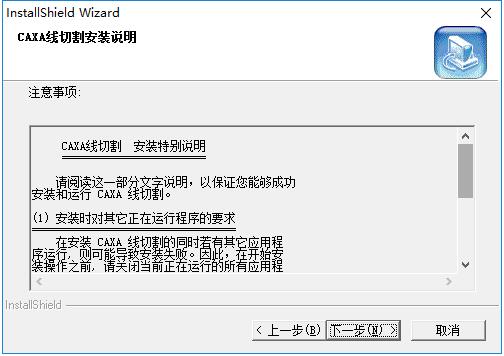

4. Read the installation instructions and click Next

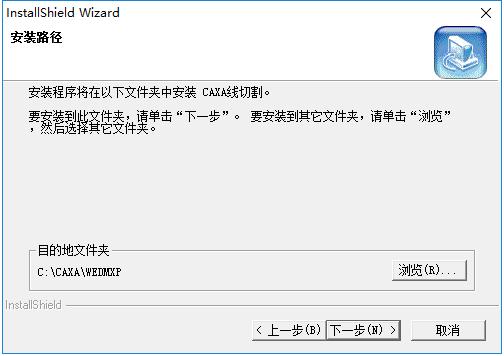

5. Click "Browse" to select the installation folder. Generally, it is installed on the C drive of the computer by default. It is recommended to install on the D drive. Click Next.

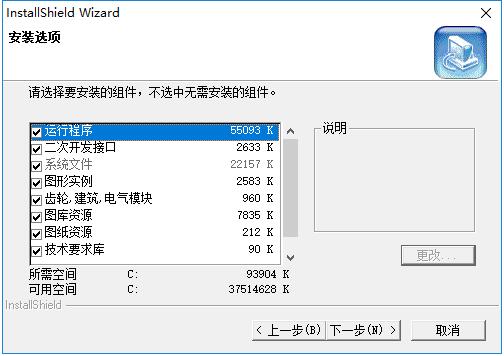

6. Select the components you want to install and click Next until the installation wizard is finished.
caxa wire cutting update log
1.Fix several bugs;
2. Optimize detailed issues;
Huajun editor recommends:
caxa wire cutting is a very practical and simple tool. Interested users can download and use it at the Huajun Software Park. In addition, there are many similar software of the same type available for download, such as:AlphaEbot action editing software,He Xiaoxiang programming client,Automated testing tool AutoRunner,Easy GUI,Little turtle LOGO languageWait.
