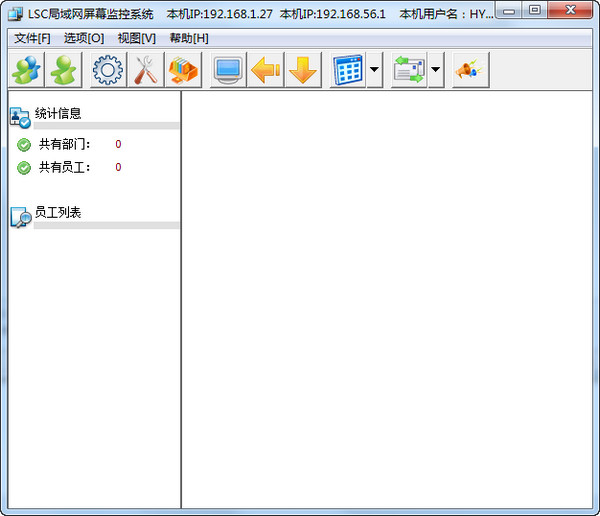

This LAN monitoring software is divided into two parts: the control terminal and the controlled terminal. The control terminal can simultaneously monitor the screen contents of multiple controlled terminals (tiled on the screen in the form of a TV wall). The software is highly intelligent and can automatically adjust the distribution pattern of the display screens. When the number of controlled terminals is greater than 1 and less than or equal to 4, the interface screen distribution is 2×2. When the number of controlled terminals is greater than 4 and less than or equal to 9, the screen distribution is 3×3, and so on. Of course, you can also focus on monitoring a single user by double-clicking on a specific screen to maximize it. The software can also save the screen pictures of the controlled terminal in the control computer at specified intervals. The software automatically creates a folder named after the current user name in the software installation directory. All the screen pictures of the user are saved in the folder named after the date of the day, so that you can retrieve them at any time in the future. The software can also control whether each controlled terminal can use QQ (including TM), whether it can use USB, etc. It can also shut down the other party's computer in real time, restart the other party's computer, send short messages to the other party, view and end the other party's process, and other operations. This LAN monitoring software is widely used in school computer room teachers to monitor students' access to computers and company bosses to monitor employees' access to the Internet.
LSC LAN tool software functions
1. Real-time monitoring of multiple controlled computer screens in the form of a TV wall
2. Remotely control the other party’s computer via LAN
3. Save screen pictures of the controlled terminal regularly
4. It is prohibited to use QQ and USB
5. Check and end the other party’s designated program
6. Shut down and restart the controlled computer
7. Send short messages to the controlled terminal in real time
How to use LSC LAN tool
1. Install "Control.exe" on the control computer
2. Run the newly installed main program "LSC LAN Screen Monitoring System.exe" (the installation program will automatically start it by default)
3. Write down the local IP address on the title bar with paper and pen.
4. Install "controlled client.exe" on the controlled computer.
5. Start the main program lsc.exe (the installation program will also start it by default)
6. Press the hotkey Ctrl+Alt+L to bring up the settings window. When you use it for the first time, the password is empty. Just click "OK" in the pop-up password input window.
7. In the settings window, enter the IP address of the console that was written down on paper into the first text box on the left.
8. Enter a port value in the port, such as 23100, and click the "OK" button to hide the setting window.
9. Return to the control computer again and perform the following operations: click the "Edit User" menu, click the Add button in the pop-up window, enter a user name, and enter the port number previously entered on the controlled computer (the port numbers of the controlled computer and the control computer must be the same). Click OK to close the window, and click the Close button again to close the edit user window. You can now see the other party's computer screen.
10. You can double-click the other party's screen area to make the window full screen, or you can right-click to send a short message, or shut down the other party's computer, restart the other party's computer, view and end the other party's process, and other operations.
11. If you need to remotely control the other party's computer, click "Enable remote control" in the upper left corner of the screen. Special note, if the other party has Rising account safe installed, you need to remotely open the account safe software and cancel the protection of QQ and other software before you can remotely control QQ and other chat software.
LSC LAN Tool Software Precautions
The default installation path of the controlled terminal software is: D:Program FileslouyueLSC. In order to increase the concealment of the controlled terminal, this path will be completely hidden after the software installation is completed. You can open "My Computer" on the desktop, copy the above path directly into the address bar and press Enter to open the installation path. You do not need to open this path unless you need to uninstall the host.
LSC LAN screen monitoring system update log:
1. Modify user-submitted bugs
2.Add new features
