CorelDRAW is a flagship graphic design software developed by the Canadian Corel Company and is world-famous for its powerful vector graphics editing and layout functions. Since its launch in 1989, it has become a professional tool widely used by designers around the world and is suitable for many fields such as brand logo design, brochure layout, packaging design, vector illustration and web graphics production. The software provides precise drawing tools, rich special effect filters, flexible text processing and professional color management functions. It is also deeply integrated with the built-in bitmap editing tool Corel PHOTO-PAINT to form a complete design solution. With its relatively low learning threshold and efficient workflow, CorelDRAW can not only meet the rigorous requirements of professional designers, but is also suitable for design enthusiasts to get started easily. It is an ideal platform for realizing creative concepts. Next, let the editor of Huajun explain to you how to generate barcodes in Coreldraw and how to generate barcodes in Coreldraw!

first step

Start CorelDRAW and create or open a file

Step 2

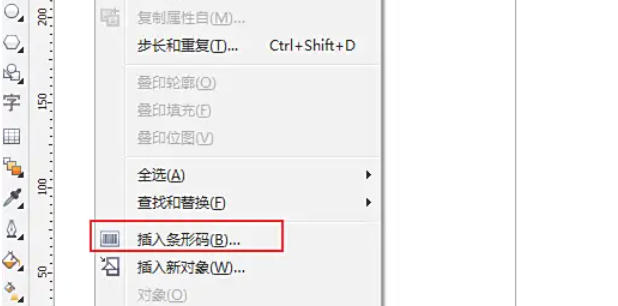

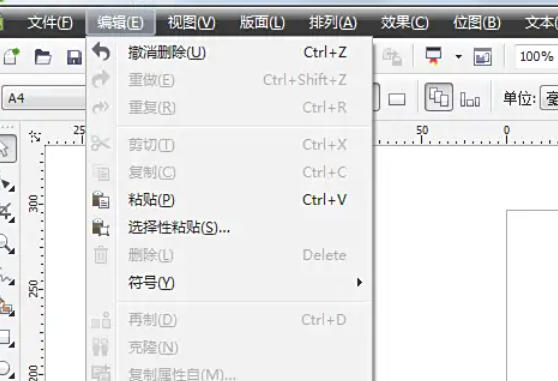

Click "Edit" on the top menu bar → "Insert Barcode"

Step 3

When the "Barcode Wizard" dialog box pops up, select the type from the top drop-down menu.

Step 4

Enter valid numbers in the text box (for example, EAN-13 requires the first 12 digits, and the 13th digit is automatically generated). If the check code is incorrect, the dialog box will prompt you to re-enter it.

Step 5

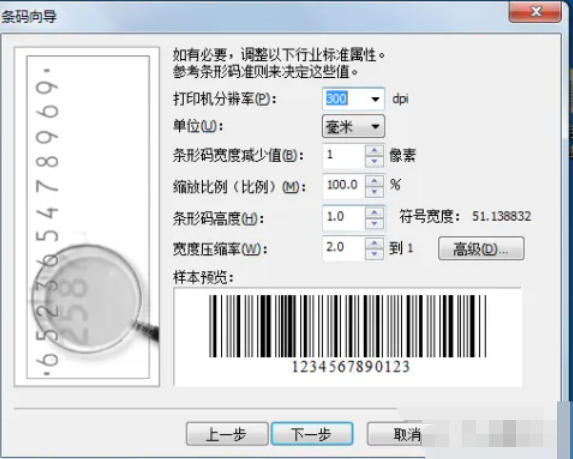

Set size and resolution

Width/Height: Drag the slider or enter a value (recommended height 20-30mm)

Resolution: Keep the default 300 DPI (for printing), the screen display can be adjusted to 72 DPI

Step 6

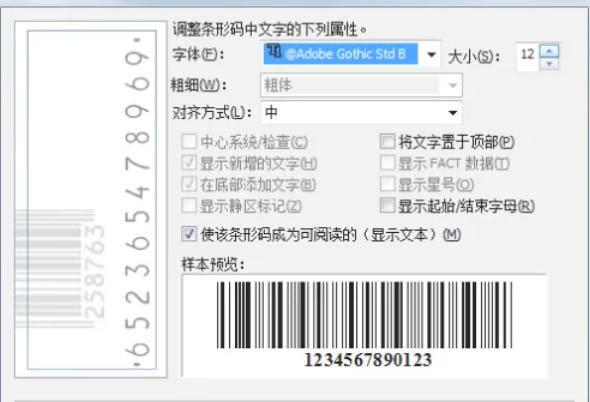

Adjust font and alignment

Font: Select the font for the text below the barcode (such as Arial), font size 8-12pt

Alignment: Select the relative position of text and barcode (such as center, bottom alignment)

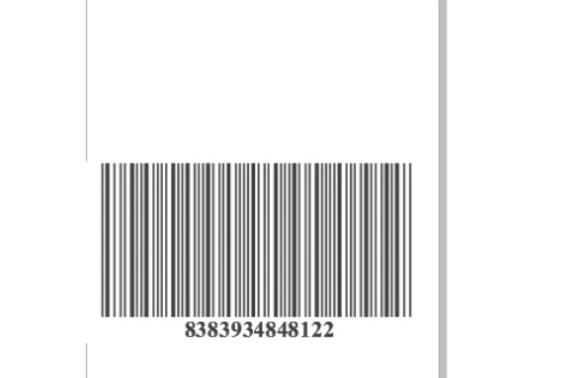

Click "Finish" to generate the barcode

The above is how the editor of Huajun organizes for you how to generate barcodes in Coreldraw and the method of generating barcodes in Coreldraw. I hope it can help you!
