AutoCAD2008It is a simple and practical computerAuxiliary drawinganddesign software, this software is developed byAutodeskThe company's development was launched in April 2007, referred to as cad2008. AutoCAD2008 will use the usualAutoCADCommands combined with an updated design environment enable users to implement, explore, and imagine like never before. Huajun Software Park provides you with free download services.

AutoCAD2008 function introduction

Let’s take a look at the new features of CAD2008:

1.fields are text containing descriptions used to display data that may be modified during the graph's life cycle;

2. Annotative objects;

3.Some custom properties are defined in dynamic blocks that can be used to adjust the block in place without having to redefine the block or insert another block. Color selections can be more easily seen in the AutoCAD Color Indexer;

4.A multileader object is a line or spline with an arrow on one end and a multiline text object or block on the other end;

5.CAD's own table object provides more block collections.

AutoCAD2008 installation method

Step 1: Download directly from this page, unzip the AutoCAD file, right-click and select "Extract File".

Step 2: Run the installation program of AutoCAD2008. Find "setup" in the decompressed file and double-click to run it.

Step Three: CAD Installation Wizard

(Picture 3)

Select "Install Product" to start the installation as shown in Figure 3.

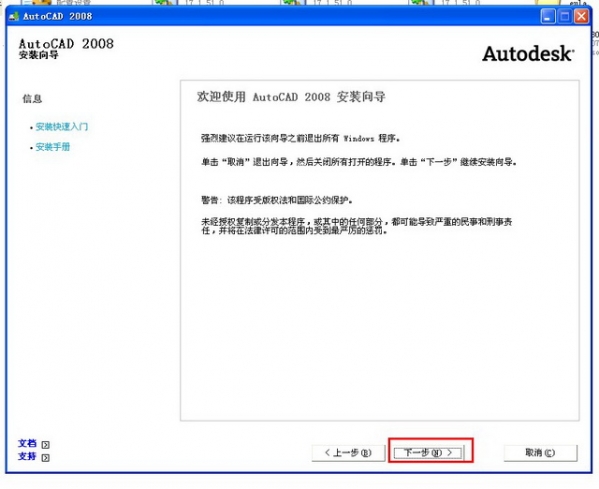

Step 4: AutoCAD2008 32-bit Chinese version installation wizard instructions

(Picture 4)

Click "Next" to continue as shown in Figure 4.

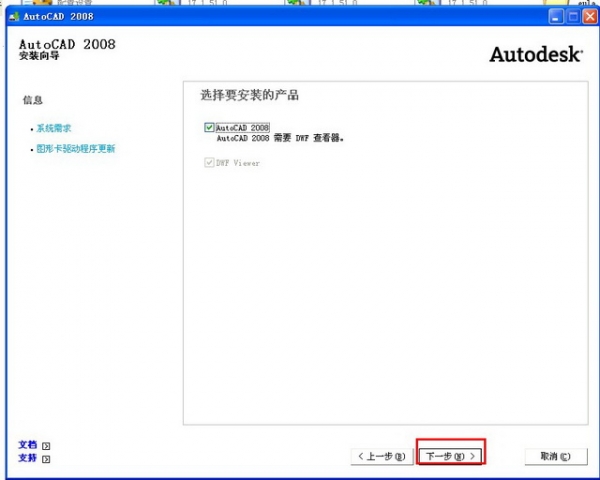

Step 5: Choose to install AutoCAD2008

(Picture 5)

Check "auto CAD 2008" and click "Next" to continue, as shown in Figure 5.

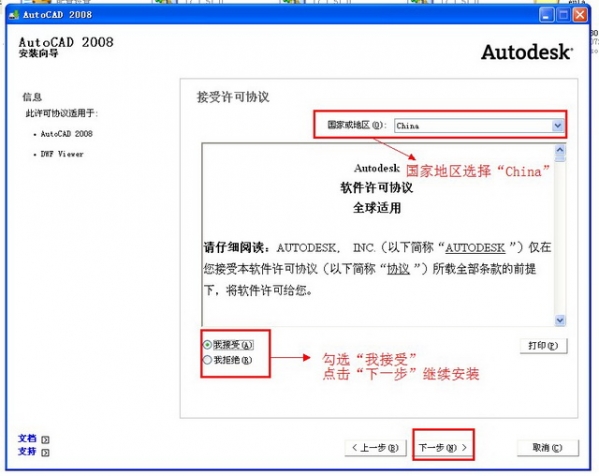

Step Six: AutoCAD2008 License Agreement Interface

(Picture 6)

Select "China" in the country region, check "I accept" and click "Next" to continue, as shown in Figure 6.

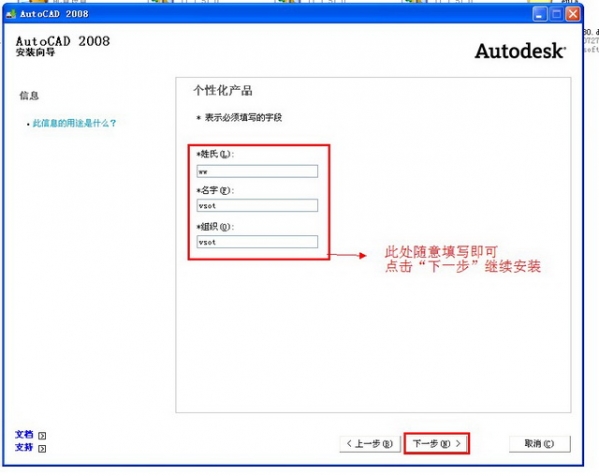

Step 7: User information for AutoCAD2008

(Picture 7)

You can fill in the user information as you like. After filling in, click the "Next" button, as shown in Figure 7.

Step 8: AutoCAD2008 32-bit Chinese version configuration-installation information

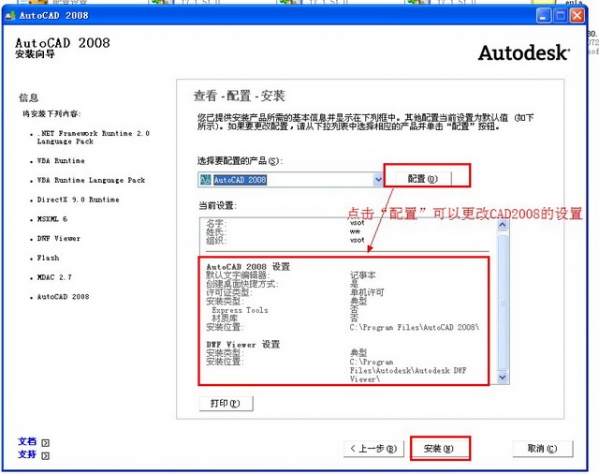

(Picture 8)

The red box is the installation information of CAD2008. Click "Configure" to set it yourself. Click "Install" to start installing the CAD2008 32-bit Chinese version, as shown in Figure 8.

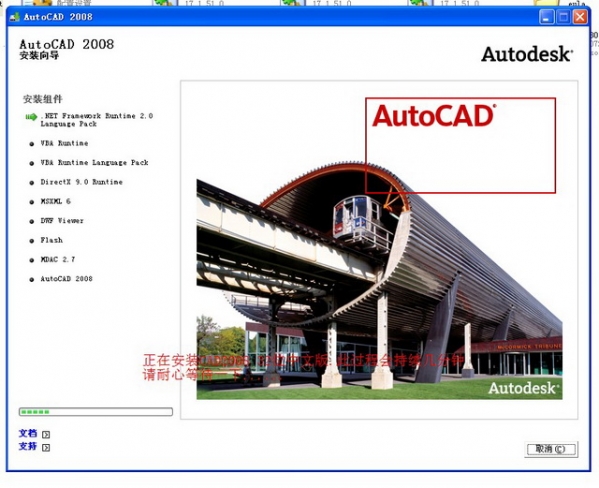

Step 9: Installing AutoCAD2008 32-bit Chinese version

AutoCAD2008 tutorial

      How to set annotations in AutoCAD2008:

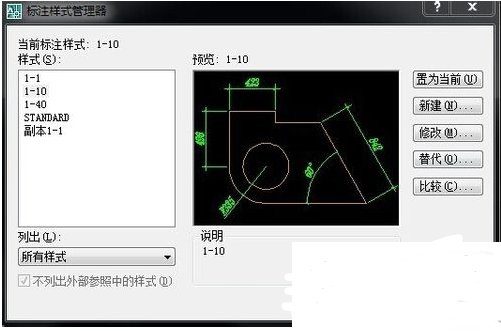

​ ​ 1. Press the shortcut key d to display the dimension style manager.

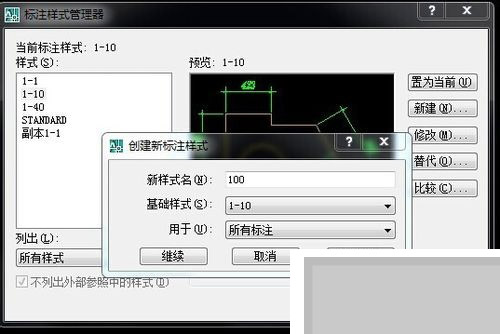

​ ​ 2. Create a new one and name it 100. The 100 here means that the ratio of the drawn picture is 1:100, which is 100

​​ 3. Click on the straight line, select the color, and size. I generally like green. Choose this according to your own preference. You can leave other values ​​unadjusted, depending on the feeling.

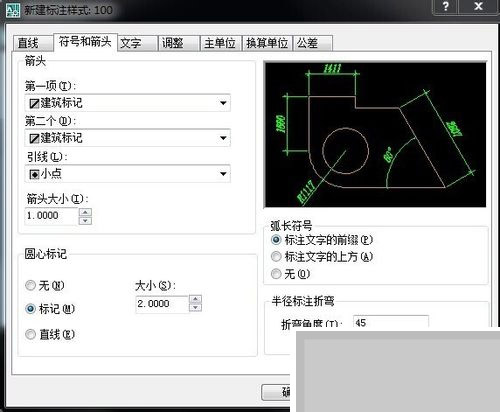

​​ 4. Use the arrow to select the building mark, the quotation marks, the small dots, and other values ​​can be left alone.

5. Adjust the text style

​ ​ 6. Change the text name to Song Dynasty. This chooses the font that comes with the computer. If you choose other fonts, a question mark will be displayed on other people's computers.

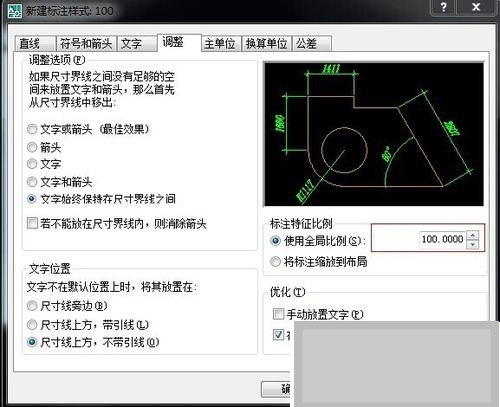

​​ 7. Choose to use the global ratio 100 in the adjustment. The meaning here is the same as above.

AutoCAD2008 FAQ

How to change the background color in the free Chinese version of autocad2010 from white to black?

​​ 1. Right-click the mouse to pop up a dialog box, click "Options".

​​ 2. There is a "Color" button on the bottom row of the first module "Window Element" in the "Display" tab bar. Click this button.

3. The "Graphics Window Color" dialog box pops up, and select "Black" in the color drop-down box.

​​ 4. The setting is successful. If you like a different color background, you can customize it according to your own preferences.

How to speed up your AutoCAD configuration to make it run faster?

How to turn it on: Tools->Options>System, click Performance Settings, click "Manual Adjustment" in the pop-up dialog box, and check Hardware Acceleration in the pop-up dialog box.

There is a switch in the lower right corner of higher versions of CAD to enable hardware acceleration directly.

What is the difference between AutoCAD and CAD?

1. AUTOCAD: AutoCAD (Auto Computer Aided Design) is an automatic computer-aided design software first produced by the American Autodesk Company in 1982. It is used for two-dimensional drawing, detailed drawing, design documents and basic three-dimensional design. It has become a widely popular drawing tool internationally. The .dwg file format has become the de facto standard format for two-dimensional drawings.

2. CAD: CAD is Computer Aided Design (CAD), and its concept and connotation are constantly developing. In October 1972, the International Federation for Information Processing (IFIP) gave the following definition at the "Working Conference on CAD Principles" held in the Netherlands: CAD is a technology in which humans and computers are combined into a problem-solving group, working closely together to give full play to their respective strengths, thereby making their work better than that of each party, and providing the possibility of comprehensive collaboration applying multidisciplinary methods. CAD is a general term for engineering and technical personnel to use computers as tools to design, draw, model, analyze, and write technical documents and other design activities for products and projects.

3. Mechanical drawing software developed by Autodesk. Due to its wide popularity, everyone is accustomed to abbreviating AutoCAD to CAD. So many people mistakenly think that CAD is AutoDAD. There are also many CAD software in China. It can be said that all computer-aided design software can be called CAD software.

AutoCAD2008 update log

Fix some known bugs

Optimize some functions
