CAD quick view

CAD Quick Picture Viewer Mac official version is a picture viewing software built for CAD software. The official version of CAD Quick View can support direct viewing of DWG drawings of various versions, and also provides intuitive viewing, marking and other functions. CAD quick viewing can also browse DWG and DXF drawings without AutoCAD, which is the fastest and most convenient way to view DWG and DXF drawings. It supports two-dimensional or three-dimensional drawings, high-definition, multiple files and cloud fonts.

Things to note:

Sometimes you will encounter errors when downloading and installing Mac software. Now the editor of Huajun will sort out the more common error situations and provide answers. Friends who encounter errors can refer to the following solutions:

1. "The xxx software is damaged and cannot be opened. You should move it to the Trash"

2. "The xxx software cannot be opened becauseApple can't check if it contains malware"

3. "Cannot open... software because it is from an unidentified developer"

The solution is as follows:

1. Set up on your Mac computerOpen any source.

2. If the error cannot be resolved by opening any source, it means that the application is subject to Apple's restrictions on unsigned applications and needs to bypass application signature authentication by executing command line code. Execute command bypassiosnotarizationGatekeeper.

3. If neither of the above two methods works, then you need tocloseSIPSystem integrity protection.

CAD quick viewing software functions

      Look at the picture:

-Supports opening of .dwg .dxf .dwf file formats, including encrypted drawings;

-Associate related drawing formats, double-click to quickly open the drawing;

-Supports common operations such as pan, frame zoom, full image, undo, redo, clear, etc.;

-Supports simple modification of drawings;

-Supports setting touchpad and mouse scaling factors;

-Support Tianzheng conversion;

-Support layout switching;

-Supports setting background color;

-Supports display, window and full-image screenshots;

-Supports loading external reference drawings;

      Annotation:

-Supports common annotations such as relative, linear, radius, angle, and coordinates;

-Supports setting label color, zoom size, and decimal places;

      Measurements:

-Supports area and perimeter measurement;

-Support distance measurement;

      Font:

- Automatically adapt the missing fonts according to the drawings to perfectly display graphics, fonts and symbols;

-Supports importing external fonts and copying font files to the "Contents/Resources/Fonts" directory in the software package;

      Layers:

-Intuitively view drawing layers;

-You can perform operations on layers: show and hide;

      Print:

-Supports frame selection, full image and current display area printing;

-Supports switching printing color style: default and gray;

      Export:

-Supports exporting PDF, and exports color style by default;

Features of CAD quick viewing software

​​ 1. Extreme speed - lightning startup speed, opening CAD drawings one step faster

2. Comprehensive - complete display layout, pattern filling, automatic matching of all font garbled characters, nowhere to be found

3. High-end - the industry supports CAD viewing products for Tianzheng Construction, Tianzheng Water Supply and Drainage, Tianzheng HVAC, and Tianzheng Electric.

4. Technology - built-in WiFi direct connection to computer, cloud disk function, easy image transfer

5. Service - a professional team provides you with instant CAD viewing services so that you never have to worry about anything.

6. Function - easy-to-use "what you see is what you get" printing method, freely set the printing range

Advantages of CAD quick viewing software

Extremely small: only requires about 20M disk space

Extremely fast: DWG drawings are opened the fastest and displayed most smoothly

Minimalist: The interface is extremely simple and the operation is very convenient

​​Chinese and steel symbols are displayed correctly without installing any fonts

How to use CAD to quickly view drawings

How to quickly save CAD partial drawings as separate files in CAD Quick View?

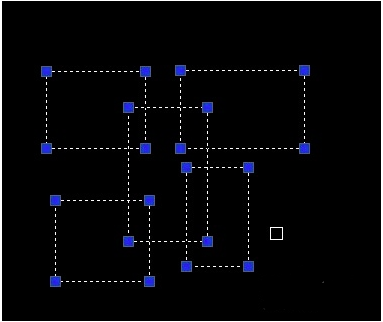

​​ 1. Open the CAD quick viewing software and select some graphics to be exported.

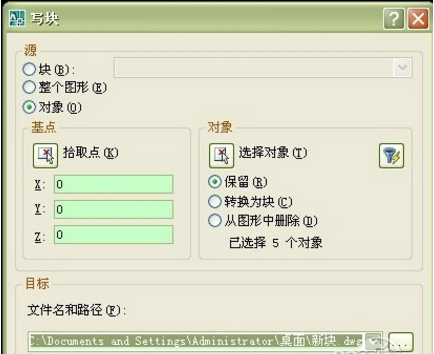

​ ​ 2. Enter "w" on the command line, and then the "Write Block" dialog box will pop up.

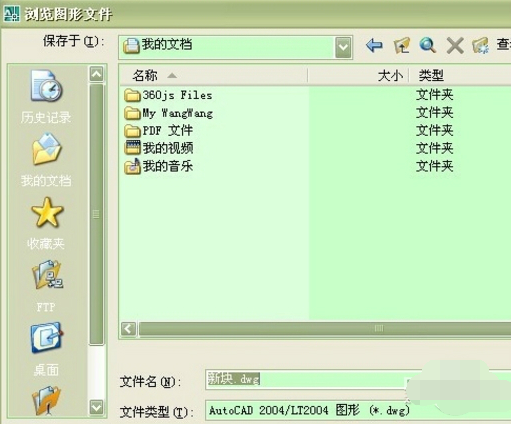

3. Then you can change the graphics storage location, name and CAD version in the writing block settings.

​​ 4. After the modification is completed, click OK to quickly save the CAD partial drawings as separate files.

CAD quick view update log

      1. Fixed several bugs;

      2. Optimize details;
