Haochen Cloud Atlas (CAD viewing software)

Haochen Cloud Map (CAD viewing software) is a lightweight CAD viewing software with the fastest opening and browsing capabilities. Haochen Cloud Map (CAD viewing software) is compatible with the latest versions of DWG and DXF formats. Haochen Yuntu (CAD viewing software) bids farewell to installing hundreds of megabytes of AutoCAD software for viewing CAD drawings. It does not require DWG format conversion, and the vector image display is magnified without distortion. It can perfectly view DWG two-dimensional and three-dimensional drawings from CAD2000 to CAD2018. It is super fast to open drawings, displays accurately, and operates smoothly. It is the only CAD viewing software in the industry that is completely free and integrates drawing viewing and editing.

      Note: Haochen Cloud Atlas has been updated to Haochen CAD Viewer. Huajun Software Park provides you with the latest version of Haochen CAD Viewer to download.

Software features

1. Cloud annotation: Annotation content can be shared between mobile phones and computers
2. Annotation and measurement: multiple annotation and measurement functions
3. Tianzheng professional drawing analysis and version conversion

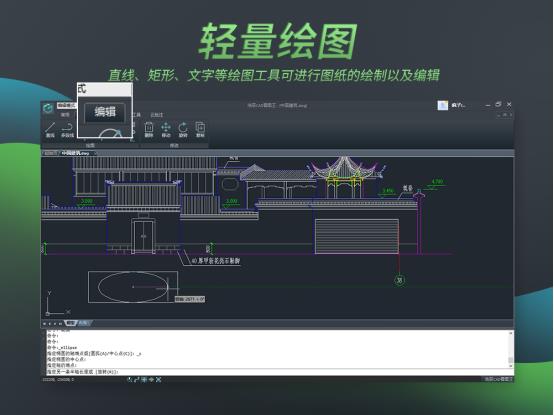

4. Lightweight editing and drawing comparison of CAD drawings
5. Cloud drawing storage and sharing, drawings are safe and not lost

Software overview

The built-in Tianzheng entity parser can perfectly display Tianzheng construction, Tianzheng HVAC, Tianzheng water supply and drainage and other professional CAD drawings. You no longer have to worry about losing entities, and can convert Tianzheng versions of CAD drawings, support the correct display of different fonts, no need to install font fonts, no longer display garbled text, and you can also view objects in external references.
It can perform cloud annotation, annotation, export PDF/JPG, drawing comparison, drawing, modification, table, measurement, layer management functions, watermark-free printing, and share design progress at any time. There is no need to send DWG drawings. You can share the link for others to view, without worrying about the safety and infringement of drawings. The cloud file storage of Haochen CAD Cloud can support multi-end viewing of drawings after logging in from mobile phones, computers, and web browsers. Say goodbye to U disk copy versions, and view annotation content at the same time, allowing you to view drawings anytime and anywhere, and enjoy the security and convenience of cloud storage.

Function introduction

​ ​ 1. Compatible with DWG format R14~2013 and DXF format R12~2013;

​ ​ 2. The response is fast when opening a large image and the operation is stable;

3. The current drawing can be exported to BMP, JPG, or PNG image format;

​​ 4. You can send the current drawing to your friends as an email attachment;

5. Can operate layers (on/off, freeze/thaw, lock/unlock, etc.);

​ 6. Provide magnifying glass function;

​​ 7. Provides a C++ secondary development interface, which can develop and customize plug-ins to meet different user needs.

【Restore the true line width and fill style of the drawing, never "cut corners"】

【The first picture viewing software that supports external reference】

【The details show the "craftsman spirit"】

【Embedded Tianzheng new entity interpreter, perfectly displays Tianzheng high version files】

Because Tianzheng drawings contain new entity data, when the design industry uses CAD software to open Tianzheng drawings, entities such as wall lines often cannot be displayed. GstarCAD for Web comes with a new entity interpreter, making it worry-free to open Tianzheng drawings.

​​​【Read different DWG versions at will and easily convert】

Supports various versions of DWG and can perform version conversion in batches to facilitate users' standardized storage and archiving management.

Change log

1. Support multiple files to upload cloud images
2. Add automatic frame recognition when outputting PDF/batch printing
3. Added text increment function
4. Added graphical statistics function
5. Added search results function
6. Optimize the problem of inaccurate measurement area of non-1:1
