Zhongwei HD surveillance system

Zhongwei HD surveillance system(JNVR) is a software developed by Zhongwei Company that runs on a PC.IPC management software, referred to as JNVR. Zhongwei HD surveillance system combines Zhongwei's excellent cloud vision network transmission technology, efficient audio and video coding and decoding technology and unique image display technology, so that this software can well display IPC high-definition and smooth pictures. The software interface of the Zhongwei high-definition monitoring system continues the classic blue style of Zhongwei. The interface layout and operation methods listen to the opinions of Zhongwei's dealers and engineers from all over the country, and strive to achieve stable operation and easy operation.

In addition to being applicable to all series of IPCs from Zhongwei, JNVR can also be interconnected with IPCs from other manufacturers through the ONVIF protocol (it needs to be used with a U-shield). After actual testing, it is currently perfectly compatible with: Hikvision DS-2CD3232-I5, Dahua DH-IPC-HFW2100P, Tianshitong NVS-DM36X-HD, Xiongmai IPG-50H10PL-S, Wave particle: BL-C3ID720IWL, Pinshi: PS41A, ibest: RS7518 and other brands of IPC.
If you are using IPC from Zhongwei or other manufacturers, it is recommended that you use this software to centrally manage IPC. In addition, this software can also enable cloud video service to remotely view real-time images and recordings.

Introduction to the functions of Zhongwei HD surveillance system

​ ​ 1. Equipment management: Zhongwei IPC, IPC supporting ONVIF protocol (needs to be used with U-shield);

​ ​ 2. Screen layout: drag-and-drop windows, floating windows, screen rotation, multi-monitor output;

​ 3. Channel recording: regular recording, scheduled recording, alarm recording, standard mp4 recording format;

​​ 4. Image adjustment: code stream, frame rate, bit rate, brightness, contrast, etc.;

5. Alarm linkage: alarm video, alarm snapshot, alarm sound, alarm email;

​ ​ 6. Video playback: timeline playback, fast forward, picture capture, editing, etc.;

​ ​ 7. Remote function: You can turn on the cloud vision service and view JNVR remotely.

Features of Zhongwei HD surveillance system software

Multi-device compatibility

Full support for Zhongwei equipment: seamlessly compatible with all series of Zhongwei IPC equipment.

Cross-brand interconnection: Through the ONVIF protocol, it can be connected to mainstream brand IPCs such as Hikvision, Dahua, and Tianshitong (need to be used with U-shield), breaking brand barriers.

HD smooth picture

Cloud Vision Technology: Optimize network transmission efficiency, reduce delays, and ensure real-time remote monitoring images.

Efficient encoding and decoding: supports H.264/H.265 encoding, taking into account image quality and bandwidth usage.

Flexible screen layout

Multi-window management: Supports dragging windows, floating windows, screen rotation and multi-monitor output to meet the monitoring needs of multiple scenes.

Intelligent alarm linkage

Multi-dimensional alarm: supports alarm recording, screenshots, sound prompts and email notifications, and can be linked to sound and light alarm equipment.

Convenient remote access

Cloud Vision Service: After it is turned on, real-time images and recordings can be viewed remotely through the Internet, breaking through geographical restrictions.

Zhongwei HD surveillance system installation steps

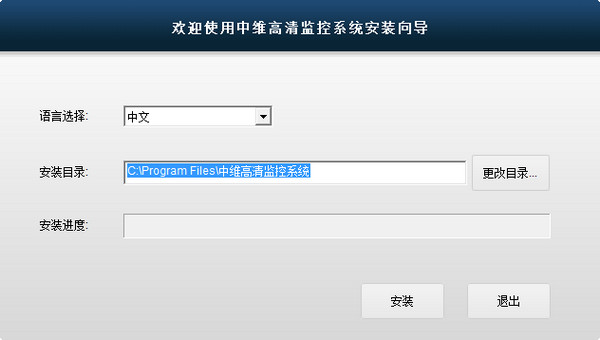

​​ 1. Download the Zhongwei HD Surveillance System compressed package from this site and unzip it, click the installer, enter the [Welcome to the Zhongwei HD Surveillance System Installation Wizard] window, click "Change Directory" for the installation directory, select "Software (D)", then click "OK", and then click "Install".

​​ 2. In the window of [JNVRSetup], the system will issue a warning: The installation of the Zhongwei HD Surveillance System is complete. Do you want to execute it immediately? Click the "Yes" button.

3. In the [Add Camera] window, the system will search and connect the camera for you, wait 5 seconds...

​​ 4. Finally, the camera monitoring page comes out. Click on the circle with a bar in the lower right corner (to allow monitoring to run in the background). You need to log in, enter your password, check the box "Remember Password" to save you from having to enter your password next time, and click "OK".

How to use the Zhongwei monitoring system

How to watch video playback in Zhongwei surveillance system

1. Open the Zhongwei surveillance system software, enter the main window interface, click "Video Playback" to enter the video playback interface, and select a date.

2. Then you can see the playback.

How to set automatic system alarm in Zhongwei monitoring system

1. Open the Zhongwei surveillance system software, enter the main window interface, click "Turn on video loss detection", "Start motion detection", and click "Regional Settings".

2. After selecting the area you want to monitor, click "OK". The system will automatically return to the first window. Click "OK" again.

3. Click "System Parameters" - "Alarm Output" and click in sequence: "Turn on recording" - "Capture image after alarm is detected" - "Play alarm sound after detecting alarm", click "OK".

FAQ

Device cannot connect

Reason: Network configuration error, firewall interception, device IP conflict.

Solution:

Check whether the device and computer are on the same LAN and use the "ping" command to test network connectivity.

Turn off the firewall or add the software as a trusted program.

Assign fixed IP addresses to devices to avoid conflicts.

Zhongwei HD surveillance system update log

​ 1. Add support for multiple alarm types of IPC;

​​ 2. Added multi-selection support and sorting function in the device management window;

​​ 3. Add the account batch management function, open it through the "More"->"Account Management Tools" menu item

​​ 4. Add 3D positioning function;

​ 5. Modify the problem of cluttered sounds after switching audio encoding;

​​ 6. Update the released version of Cloud Vision Library;

​​ 7. Fix some bugs.
