HaochenCAD 2024

Haochen CAD2026 is a 2D CAD platform software with independent core technology, internationally leading, and a perfect replacement for AutoCAD. It is deeply compatible with CAD files and has the characteristics of easy to learn and use, comprehensive functions, extremely fast and stable, and cloud collaboration. It supports the operation of all platforms such as Windows/Linux/Hongmeng/macOS, and realizes the synchronization and sharing of design data at all ends based on the cloud migration of drawings and models. The software has more than 100 innovative functions and has more than 100 million users worldwide. It is widely used in various industries such as civil construction, water conservancy and hydropower, energy and chemical industry, machinery manufacturing, aerospace, shipbuilding, and automobiles.

From a single tool to collaborative design, from PC software to cross-terminal applications, Haochen CAD series products rely on an open ecosystem to join hands with more than 300 developers and partners around the world to provide users with multi-scenario CAD design and cloud application solutions.

Features of Haochen CAD software

​ ​ 1. Independently research and develop the core, Xinchuang’s domestic alternative is the first choice

​ ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​? Software development is not restricted by foreign CAD frameworks? Key indicators such as running speed, stability, and compatibility are already at the international leading level. It is the national certification choice for centralized procurement of CAD software by state-owned enterprises and central enterprises.

​​ 2. The performance is greatly improved and the operation is smoother

​ · The speed of drawing is increased by more than 40%, and the performance of high-frequency operations (regeneration, movement, copying, mirroring, etc.) is improved by more than 20%

​ · The layer switching speed is increased by 1 times, and the freezing speed is increased by 8 times.

· Trimming performance is increased by 1 times, extension efficiency is increased by 10 times, and pick-up point filling performance is increased by more than 30 times

·Compared with the 2025 version, the overall performance is improved by 38%

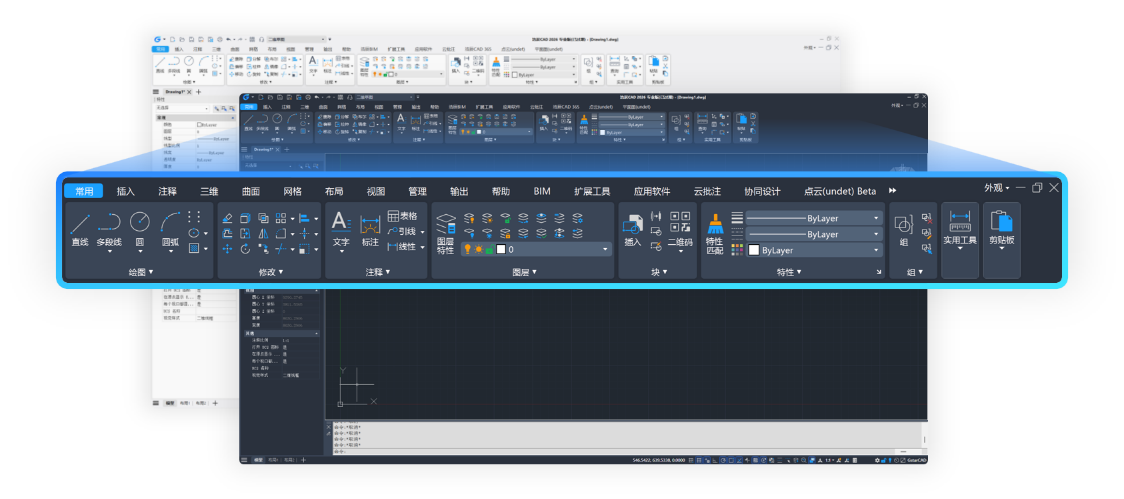

3. Renewed and upgraded user experience

​ · Reduce migration and learning costs: fully supports mainstream drawing formats, and commands and shortcut keys are highly in line with industry habits

​ · Unified visual optimization of the interface: redraw 2000+ system icons, optimize the theme and layout, and improve professionalism and comfort

​ · Strong consistency in control interaction: buttons, input boxes, pop-up windows and other interactive elements are unified and standardized

· Over 100 high-frequency scene optimizations to improve daily operation efficiency

4. Innovative applications, empowerment and efficiency improvement

Intelligent design: Strengthen parametric and size-driven modeling, support voice annotation, and improve communication efficiency

· Intelligent management tools: system variable monitor and application manager to improve system stability and controllability

​ · Data interaction upgrade: PDF import is faster and clearer, supporting high-fidelity layer structure; data extraction supports flexible configuration, one-click table generation, improving the efficiency and quality of project quantity statistics and review

· Multi-viewport real-time preview, supports independent configuration, and can simultaneously browse key component information from multiple perspectives to improve modeling and communication efficiency

​ · Software and hardware collaborative optimization: fully supports GPU acceleration, deeply adapts to 3D mouse, and improves the operating feel

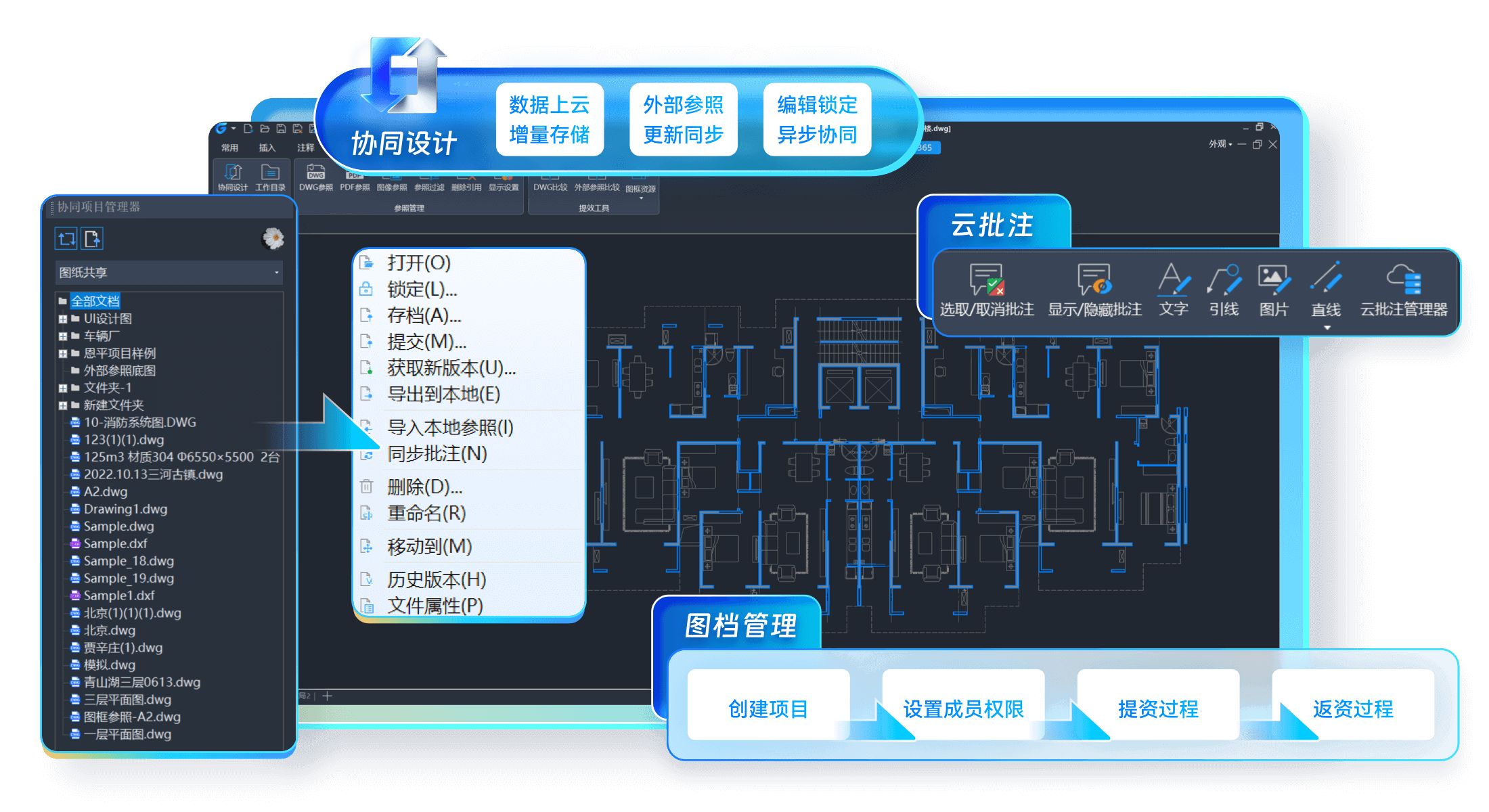

5. Cloud collaboration breaks down design silos

​ · Support collaborative editing of drawings and online citation and reference, enabling cross-professional collaboration between multiple people

· Graphics incremental storage technology reduces file size and transmission pressure

· · Support multi-language environment collaboration to meet the needs of multinational projects

​ · Real-time annotation + permission control + version management to ensure safe circulation of drawings

​​ 6. Unbounded experience, full scene coverage

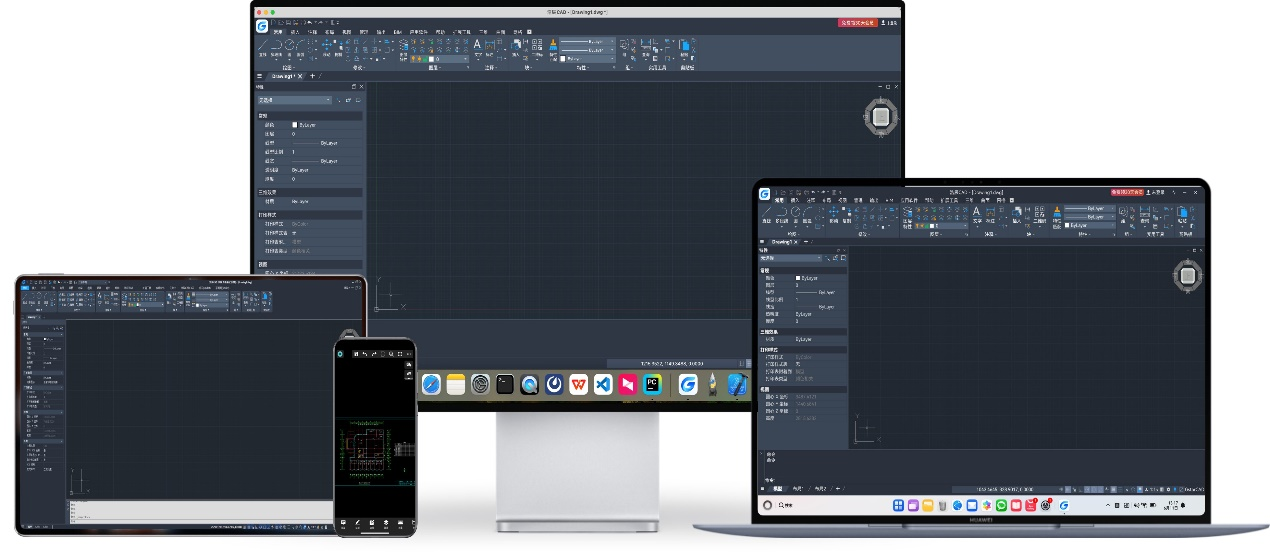

​ · The industry’s first implementation of full platform adaptation for Windows, macOS, Linux, HarmonyOS, iOS, and Android

· The performance of the Mac version is comparable to that of Windows, and it supports native experiences such as high-resolution screens and trackpad gestures.

· Hongmeng version supports cross-device connection, touch screen optimization, supports OFD national standard format and domestic encryption algorithms, meeting the data security needs of government and enterprise customers.

​ · Linux version has unified kernel driver, consistent functions and unified experience

· · Fully adapted to domestic CPU, operating system, complete machine and office software, and has obtained multiple authoritative certifications

​ 7. Unlock more business scenarios and empower applications in multiple industries

​ · The point cloud tool set supports large-scale point cloud data processing and achieves efficient connection from point cloud collection to design output (Surveying and Mapping Industry)

· BIM data interactive upgrade supports importing and parsing BIM files in IFC/RVT and other formats. BIM building model information can be viewed, retrieved, edited, and managed. Modified BIM files can be exported in IFC format to realize more convenient and efficient interactive collaboration integration between Haochen CAD and BIM software (engineering construction).

                                                                                                                                                  The efficient circulation of mechanical model data, accelerating the full-process collaboration from design to manufacturing, and helping the manufacturing industry achieve efficient modeling and intelligent manufacturing (manufacturing industry)

​ 8. Ecological co-creation and secondary development support

​ · Open secondary development platform: fully supports mainstream development interfaces, provides LISP debugger, and improves development efficiency; GRX interface is highly compatible with ARX, and existing plug-ins can be transplanted to Haochen platform at low cost

· 300+ professional plug-ins have been implemented, covering multiple industries such as architectural design, water conservancy and hydropower, surveying and mapping, mold manufacturing, etc.

Haochen CAD software functions

1. Parametric constraints

The 2026 version of Haochen CAD adds new functions such as annotation constraints and parameter managers to realize two-dimensional parametric design to improve design efficiency and drawing accuracy and improve the user experience.

​ ​ 2. Automatically combine pictures

Haochen CAD 2026 version has added automatic drawing combining, which supports merging multiple drawings into one drawing. Multiple drawings can be split and arranged according to drawing frames.

3.DWG comparison

Haochen CAD 2026 version adds DWG comparison, which supports comparing the specified graphics file with the current graphics file, supports inputting difference objects into the current graphics, and can also output the differences as snapshot graphics for subsequent viewing.

​​ 4.Support view display effect switching

Haochen CAD 2026 version newly supports view display effect switching, which can switch the original effect to engineering drawing effect.

5.PLOT: Add support for driver TIFF Version 6 in plotter

Haochen CAD 2026 version newly supports the addition of a new custom print driver "TIFF Version 6 (CCITT G4 two-dimensional compression). This print driver only supports black and white background colors. On the basis of ensuring the accuracy of output lines, text, annotations and other objects, it can greatly reduce the file size of engineering drawings.

​ ​ 6. Tool palette: supports input of xtp files

In the 2026 version of Haochen CAD, a new "Import XTP" option is added to the right-click menu of the custom palette. After clicking, a file selection dialog box will pop up, from which you can select the XTP file to be imported. Text, delimiters, and block references can be correctly imported.

​​ 7. Input method switching: supports automatic switching of input methods

Haochen CAD 2026 version supports automatic switching of the input method based on the current operation. For example, it automatically switches to the English input method when entering commands or parameters on the command line or dynamic input, and automatically switches to the current input (Chinese or English) when inputting text content. Users do not need to manually switch the input method, thereby improving operational efficiency.

​ 8. Three-dimensional modeling interface

The 2026 version of Haochen CAD adds a three-dimensional modeling interface based on the original traditional interface and two-dimensional sketch interface. The 3D Modeling workspace contains only 3D-related toolbars, menus, and palettes. Interface items not needed for 3D modeling will be hidden, maximizing the user's working screen area.

Haochen CAD installation tutorial

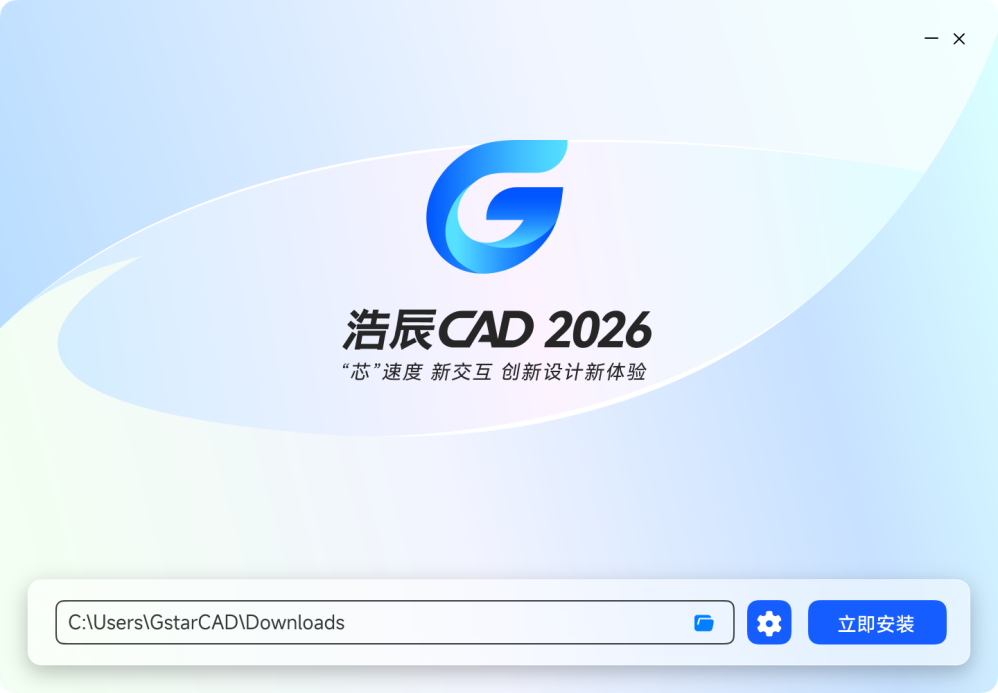

​​ 1. Download the latest installation package from this site and install it with one click

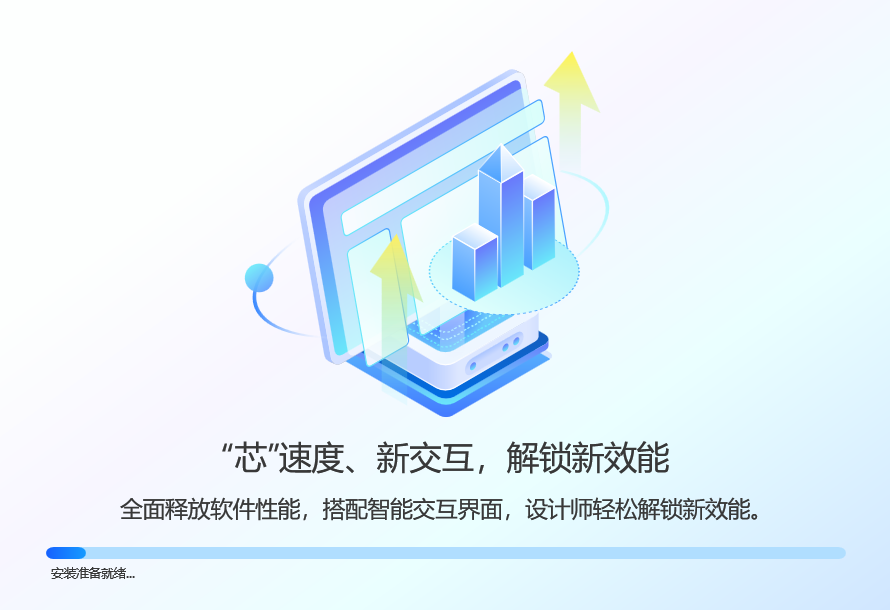

​​ 2. The installation is in progress, please wait patiently until it is completed and you can use it.

1: Optimized performance

2: We are serious about solving bug problems
