Electronic design automation software KiCad

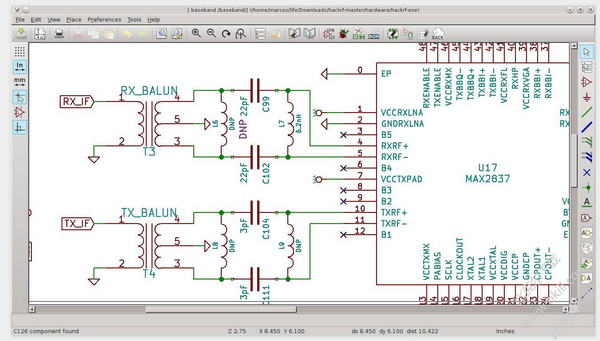

KiCadIt is an eda (electronic design automation) software. KiCad includes the project manager kicad, the schematic editor eeschema, the component packaging association selector cvpcb, the PCB wiring program pcbnew, and the light drawing file viewer gerbview. Huajun Software Park provides you with KiCad download, come and experience it!

KiCadSoftware introduction

KiCad official version is a very excellent electronic design automation software. KiCad official version has a beautiful interface, practical functions, supports cross-platform, and has corresponding versions for Linux and Windows.

KiCadSoftware features

​ ​ 1. Free and open source, complying with GNU’s GPL copyright agreement.

​​ 2. It adopts graphical operation interface and is easy to use.

3. Supports cross-platform and has corresponding versions for both Linux and Windows.

​​ 4. Gerber files can be generated. After the PCB is drawn, gerber files can be generated directly without worrying about file format incompatibility.

KiCad update log

1. Fixed other bugs;

2. Optimized software compatibility.
