Description of the graphic and text operation of converting high-version CAD drawing files into low-version CAD drawings using Swift CAD Editor

Will the high version CAD drawing files be converted into low version CAD drawings? I believe that many friends do not know the related operations. The following editor will bring you the graphic operation method of converting high version CAD drawing files into low version CAD drawings with the help of the fast CAD editor.

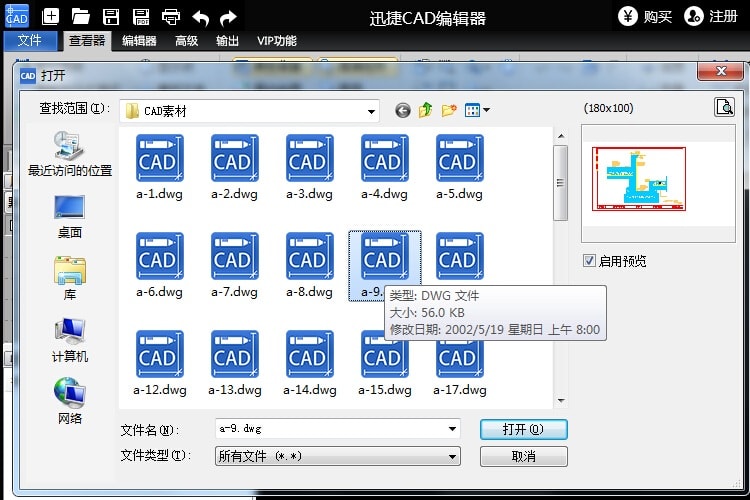

Open the Swift CAD Editor, enter the operation interface, click "File" - "Open" in the upper left corner of the interface, and select the CAD drawing to be converted in the pop-up dialog box

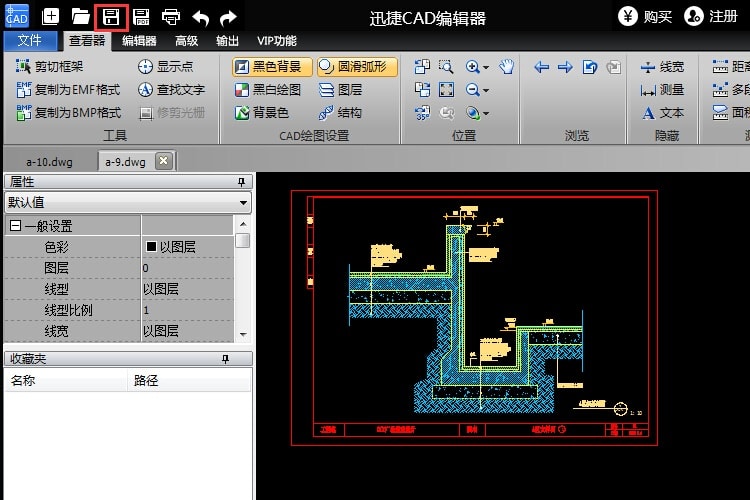

            Then see the CAD drawing content in the software interface, then click the save icon at the top of the software

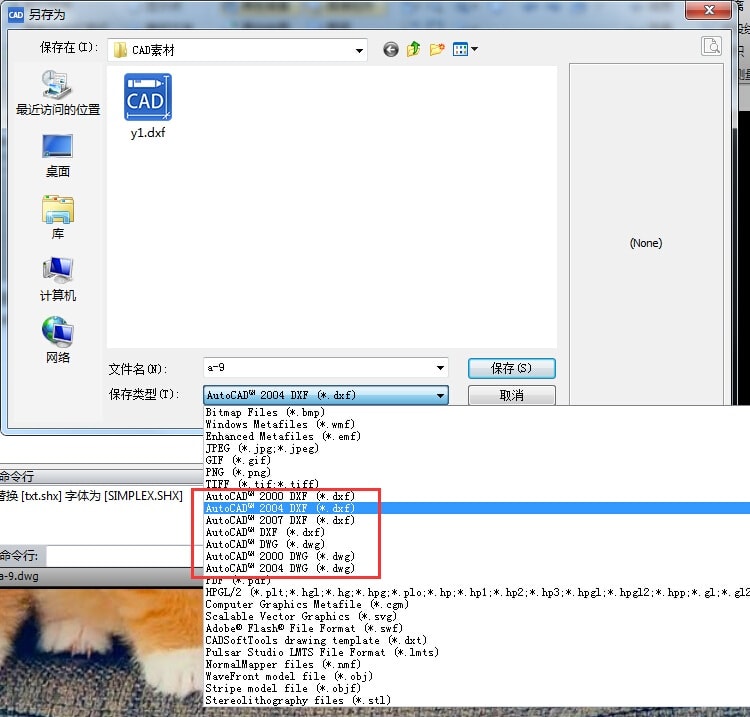

In the save type list of the Save As window, we can see that the software provides a variety of different versions of CAD drawings and different file formats, such as AutCAD DWG, AutCAD2000 DWG, AutCAD2004 DWG, etc. Users can select the corresponding version to convert higher version CAD files to lower version CAD files

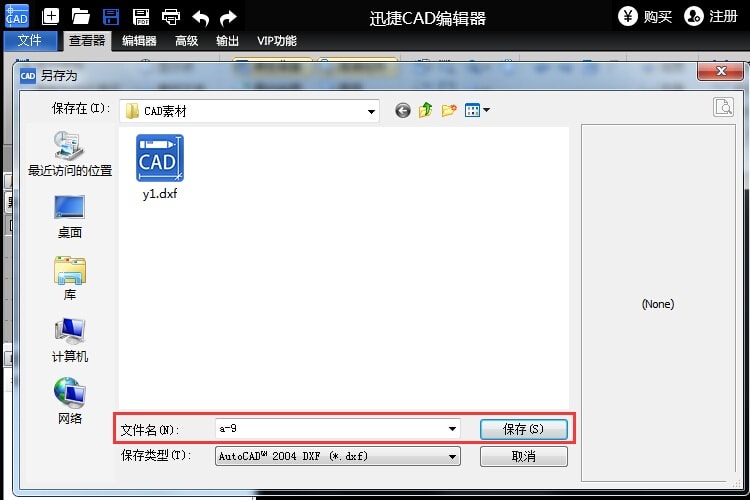

After setting the save type, set the storage location of the converted files.

Finally, set the CAD file name and click the "Save" button to convert the CAD file to other versions.

      以上这里为各位分享了迅捷CAD编辑器把高版本CAD图纸文件转为低版本CAD图纸的图文操作讲述 。 Friends in need should hurry up and read this article.
