Detailed steps for modeling six-corrugated column model in 3DMAX

Presumably many friends who have just come into contact with 3DMAX software still don’t know how to draw the cross-sectional shape of a six-corrugated column. In fact, the operation is very simple. The following will teach you the detailed steps of modeling a six-corrugated column model in 3DMAX.

First, draw the cross-section shape of the column in the front view, click the line command, and first draw the following shape.

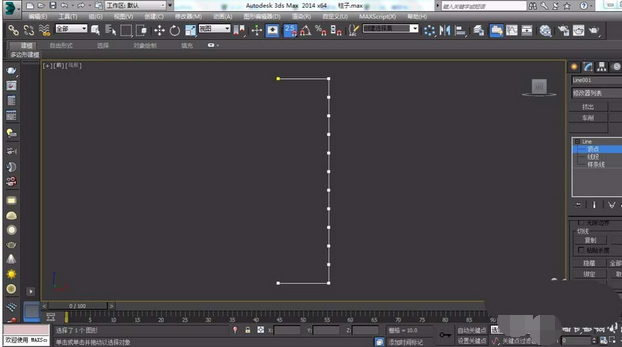

Through the axis constraint command, use 2.5 dimensions to capture the bottom left point and the top left point to align, and then add 8 points on the middle line.

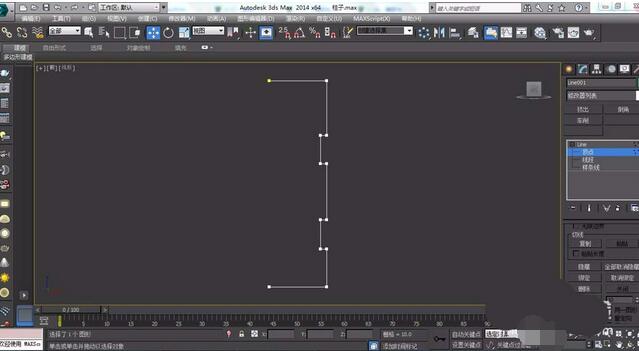

Use the Select and Uniform Scale tool, use the selection center to scale these points together, and then use the axis constraint command to adjust the shape of this section.

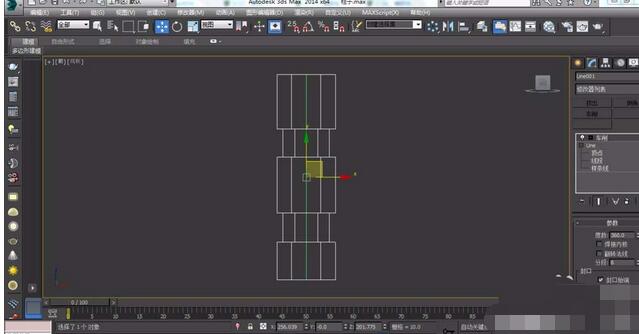

After adjusting the cross-section shape, select all points and convert them into corner points, and then use the turning modifier command to turn the cross-section. At this time, a cylindrical shape will be obtained.

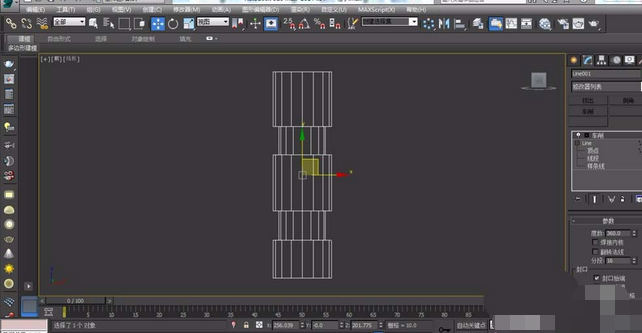

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​ out out of the modified command panel below to find the segmentation, fill in 6 at the end, then the cylindrical shape will become a hexagram shape.

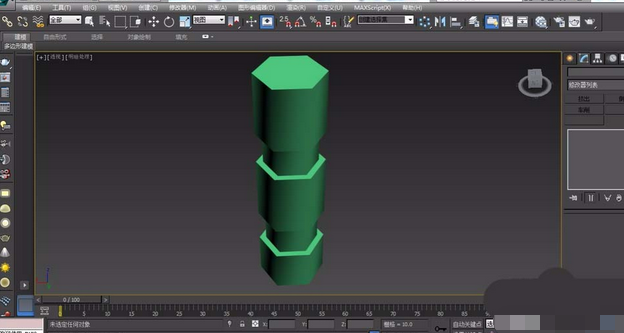

Look at the final effect in the perspective view. If you want to modify the final effect, click to edit the spline, copy it or add points.

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​                       After reading the wonderful content above, you all know the detailed steps for modeling the six-corrugated column model in WeChat 3DMAX, right?
