Hikvision SADP device network search (SADPTool)

Hikvision SADP Device Network Search (SADPTool) is a LAN device management tool specially designed for Hikvision devices. It uses dynamic broadcast scanning technology to discover and display online devices in the same network segment in real time, such as cameras, video recorders, etc. The software is easy to operate and has practical functions. It is one of the indispensable tools for Hikvision surveillance system administrators. Friends in need, come and download and use it!

Hikvision SADP device network search (SADPTool) software functions

Device search:

Automatically scan all devices in the LAN that support the SADP protocol.

Real-time display of the device's IP address, port, activation status, device type and other core information.

Supports "smart filtering" function, which can filter results by device type, IP segment or activation status.

Provides manual refresh and automatic scanning functions, and the automatic scanning interval is configurable (15 seconds to 1 minute).

Parameter modification:

Supports modifying the IP address, subnet mask, gateway and HTTP port of a single device or in batches.

Compatible with DHCP automatic allocation function to improve the efficiency of multi-device deployment.

Provides "IP conflict detection" function to avoid address duplication.

Password management:

The device default password can be restored (serial number verification required).

Provides a "forgot password" function to reset the administrator password by scanning the QR code or manually entering the serial number.

Information export:

Save the device list as a CSV file with one click to facilitate subsequent data analysis and management.

Firmware upgrade:

Some versions support device firmware upgrades directly through software, simplifying the maintenance process.

Network diagnostics:

Built-in "network diagnostic tool" can test device connectivity (PING), traceroute (Traceroute) and analyze network delay to assist in troubleshooting.

How to use Hikvision SADP device network search (SADPTool)

      Note: SADP software cannot search for online smart devices.

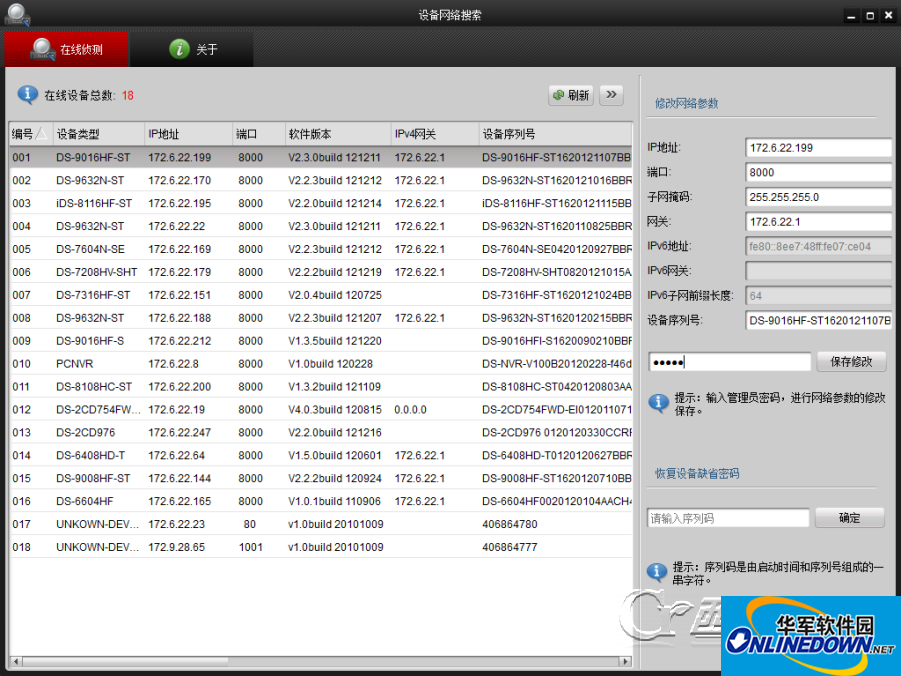

Online device detection:

After the software is started, it will send a broadcast packet to the LAN where the computer is located every 15 seconds to detect the online status of all devices. The device type, port number, IP address, software version and other information of all online devices will be displayed on the "Online Detection" interface.

Click

button to expand the "Online Detection" interface and hide the "Modify Network Parameters" interface. click

button to expand the "Modify Network Parameters" interface.

Hikvision SADP Device Network Search (SADPTool) Instructions for Use

The software cannot detect the device until it is online for 15 seconds; it cannot be removed from the online list until 45 seconds after the device is offline.

After opening the software, you can also click

button to refresh the list manually. Instructions: Click next to device information

or

The buttons can sort the corresponding device information.

Modify network parameters:

1. Click to select the device that needs to be modified. At this time, the network parameters of the device will be displayed on the "Modify Network Parameters" page on the right side of the software.

​ ​ 2. Edit the network parameters that need to be changed, such as: IP address, gateway, etc.

​​ 3. Enter the device administrator password and click

button to save changes.

​​ 4. After successful saving, it will prompt "Modify Parameters" successfully.

Restore the device default password:

​ ​ 1. Contact relevant technical personnel to obtain the serial code.

​ ​ 2. Enter the obtained serial code and click

button to restore the device default password.

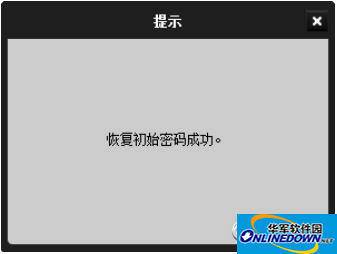

​​ 3. After success, it will prompt "Initial password recovery successful".

      Agreement:

In order to simplify the description in this manual, the following conventions are made:

​​ 1. Device network search software is referred to as software.

​ ​ 2. Network hard disk recorders, hybrid network hard disk recorders, video servers, NVR, IP Camera and IP Dome are collectively referred to as equipment.

​ ​ 3. Click is the left mouse button click; double click is the left mouse button double click; right click is the mouse right click.

​​ 4. Some pictures are schematic diagrams, please refer to the actual interface of the software.

Hikvision SADP Device Network Search (SADPTool) Frequently Asked Questions

    Q: sadptool cannot start this program?

      1: Initialization failed

First, turn off the anti-virus software firewall, then uninstall and reinstall 400sadp.

      2: When running, it prompts that sadp failed to start.

​ 1. Check whether the PC is a virtual machine. Currently, the virtual machine cannot use the sadp software.

​ ​ 2. During operation, enter "msinfo32" and press Enter. In the software environment-system driver of the system information that pops up, check whether there is an "npf" driver. If not, install the winpcap plug-in. After installation, if the status of npf is Running, sadp can start normally.

3. If you already have the "npf" driver but the status is Stop, uninstall winpcap and reinstall it.

      Three: The device cannot be found after startup

      Phenomenon 1: Online device is "0".

It may be because the plug-in is not installed. First install the winpcap plug-in. If the plug-in is installed, you can enter "msinfo32" in the run and check whether there is an "npf" driver in the software environment - system driver of the system information that pops up.

      Phenomenon 2: A certain device cannot be found.

​​ 1. Can the device be searched if it is directly connected to the computer using a network cable?

​ 2. Whether the firewall and anti-virus software are turned off;

3. Is the laptop wireless network disabled?

​ 4. Check the power supply of the network cable or restart the device or change the computer, etc.;

5. Confirm whether the equipment is working properly.

      Four: Error 2015

Error 2015 is reported when activating the device. Most of the time, the address of the PC has changed when running sadptool or 4200.

​​ 1. Restart the sadp software and then activate it;

​​ 2. If activation still fails, it is recommended to fix the computer IP in the same network segment as the device before activating it.

HikvisionSADP device network search (SADPTool) software features

Easy to operate:

The interface is simple and intuitive, and supports double-clicking the device IP to jump directly to the Web management page, lowering the operating threshold.

It adopts a tabbed layout, with clear classification of key functions, and supports shortcut key operations (such as F5 to refresh the list).

Batch processing:

Supports batch activation of devices, modification of network parameters and passwords, greatly improving multi-device management efficiency.

Security certification:

Restore the default password through serial number verification to prevent unauthorized operations and ensure device security.

It adopts dynamic password + hardware binding dual authentication, which complies with the MAS 2.0 standard to ensure the security of transaction data.

Device communication data is encrypted and transmitted throughout the entire process to resist man-in-the-middle attacks.

Hikvision SADP Device Network Search (SADPTool) Highlights

Dynamic refresh:

The automatic refresh interval is configurable, supports manual refresh, and monitors device status in real time.

Strong compatibility:

Supports Hikvision’s full range of network equipment, including cameras, NVRs, DVRs, etc.

Adapt to mainstream operating systems, such as the full range of operating systems from Windows 7 to Windows 11 and some domestic systems (such as Unongxin UOS).

Compatible with mainstream graphics cards (such as NVIDIA, AMD) and multi-screen display devices.

Lightweight:

No complicated installation is required, just run it and use it, and the resource usage is low.

The memory usage is about 50-80MB, the CPU usage is less than 3%, and it is suitable for low-end laptops.

Supports "energy saving mode" to reduce resource consumption in inactive states.
