How to use mirror symmetry in autocad2009-autocad2009 tutorial

Time: 2021-01-22Source: Huajun Software TutorialAuthor: Aotuman

How to use mirror symmetry in autocad2009? Recently, many friends have been consulting the editor on this issue, so today the editor will bring you how to use mirror symmetry in autocad2009. Friends who are not sure about it should hurry up and learn it.

First, open autocad2009.

How to improve the running speed of CAD

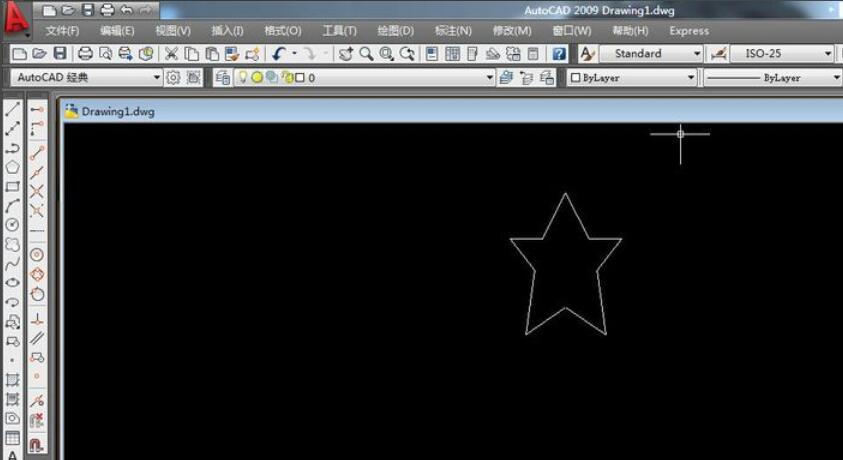

First draw two construction lines, as shown in the figure below.

How to use cad mirror symmetry

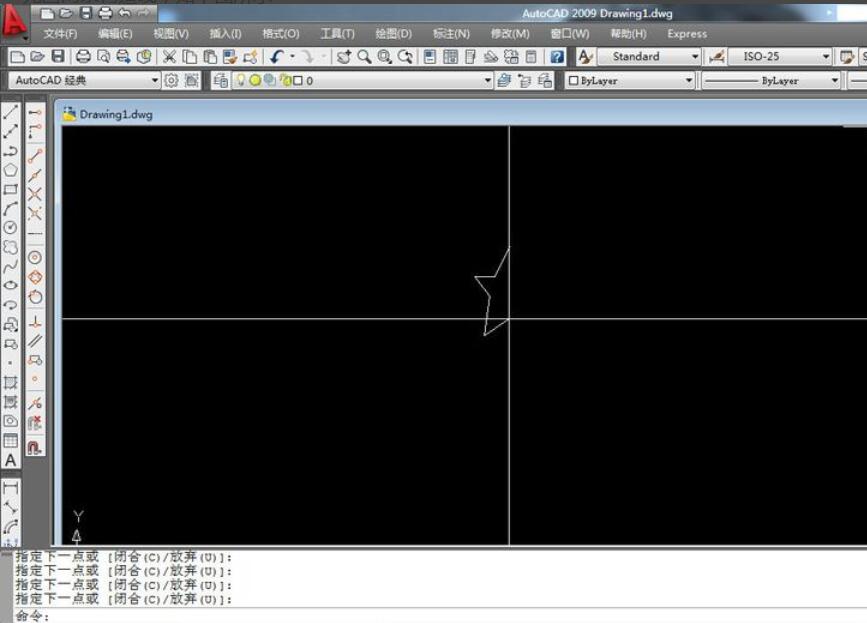

Draw the left half of the symmetrical figure to the left of the construction line, as shown in the example.

How to use cad mirror symmetry

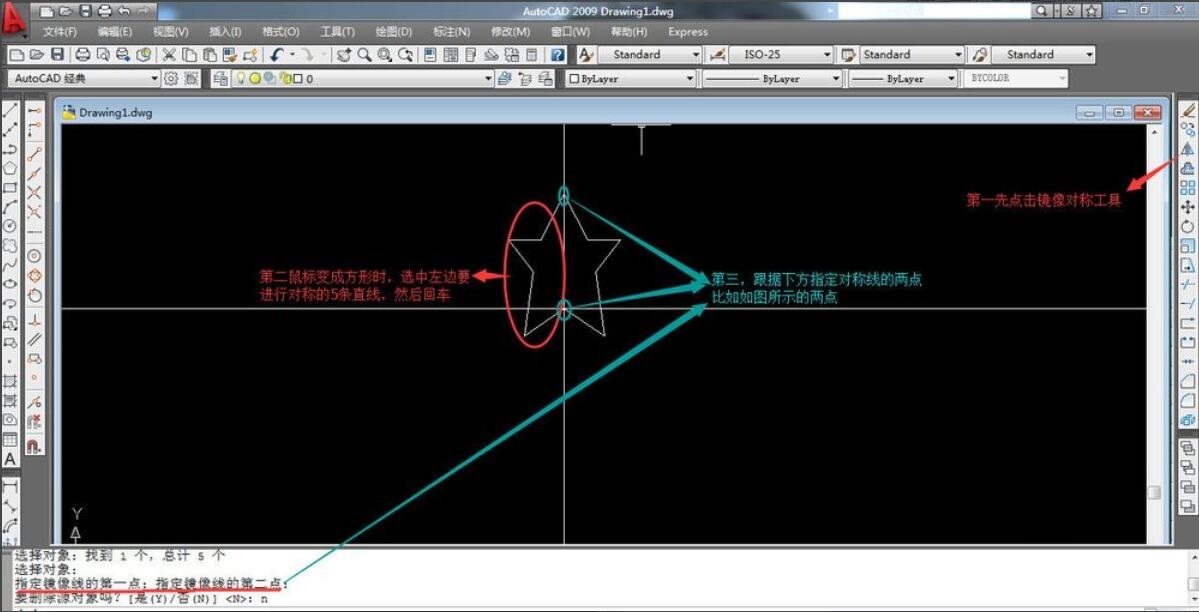

Next, click the mirror symmetry tool in the upper right corner, then when the mouse turns into a square, select all the line segments and graphics to be symmetrical, press Enter once (to confirm), and then follow the prompts on the lower left to specify two points of the symmetry line (two points determine a straight line). Finally, there is a line of text in the lower left prompt: "Do you want to delete the source object? [Yes (Y)/No (N)]:" If you want to keep the left half you just drew, just press Enter or enter n and press Enter. If you want to delete the left half you just drew and only keep the right half, enter y and press Enter.

How to use cad mirror symmetry
How to use cad mirror symmetry

The above is the method of using mirror symmetry in autocad2009 brought by the editor. I hope it can help everyone.
