Steel weight calculation toolbox

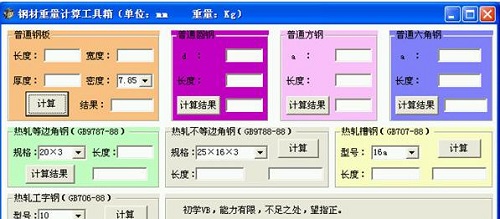

Steel weight calculation toolboxThe latest version is a weight calculation software suitable for use in the steel industry. The official version of the steel weight calculation toolbox can support the calculation of most steel materials, such as angle steel channel steel, hot-rolled unequal angle steel (GB9788-88), ordinary hexagonal steel, ordinary square steel, hot-rolled I-beam and other materials. andSteel weight calculation toolboxYou can also freely select the length, width, thickness, density, specification, model and other parameters of the material. Huajun Software Park provides a download service for the steel weight calculation toolbox. Everyone is welcome to download and use it!

Steel weight calculation toolbox software functions

​​ 1.Support ordinary steel plate calculations

2. Support calculation of ordinary round steel

3. Support calculation of ordinary square steel

4. Support calculation of ordinary hexagonal steel

5. Support calculation of hot-rolled I-beam

​​ 6. Support calculation of hot rolled channel steel

7. Hot rolled unequal angle steel

Steel weight calculation toolbox software features

​ 1. Support input length, width, thickness, density

2. Models that support material selection

3. Default unit: mm Weight: Kg

4. Accurate calculation of numerical values

5. No installation required, just download and use

Steel weight calculation toolbox installation steps

​​ 1. Download the steel weight calculation toolbox from Huajun Software Park and get a software compressed package.

​ ​ 2. Then decompress the software compressed package and obtain the steel weight calculation toolbox.exe.

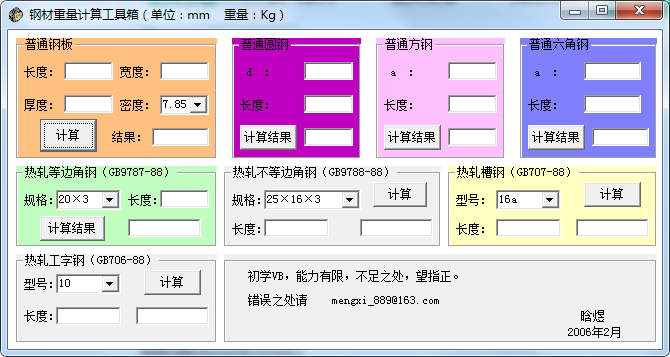

​​ 3. Finally, double-click to open the Steel Weight Calculation Toolbox.exe and you can use it.

How to use the steel weight calculation toolbox

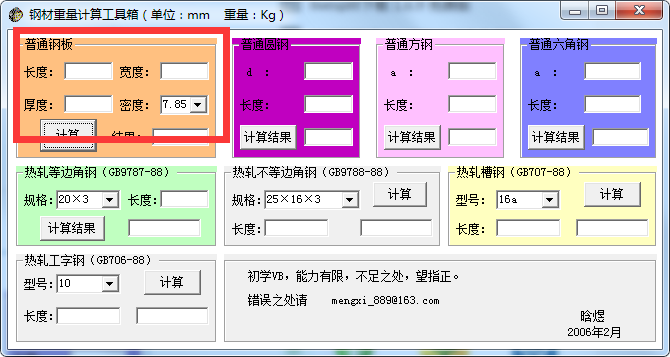

​​ 1. Enter the relevant calculation values

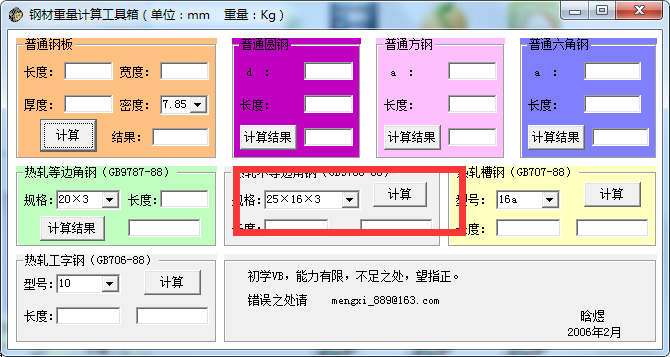

2. Select the corresponding material specifications

3. Select material model

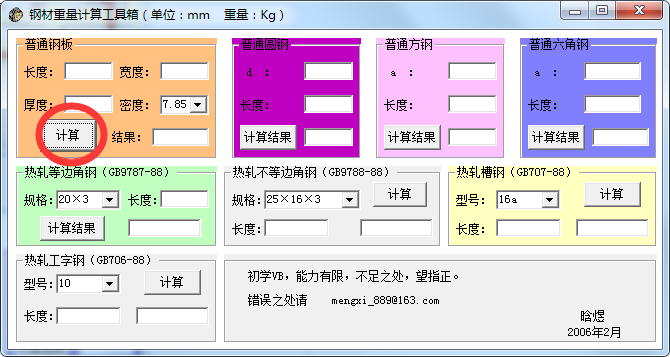

4. After setting the values, click Calculate

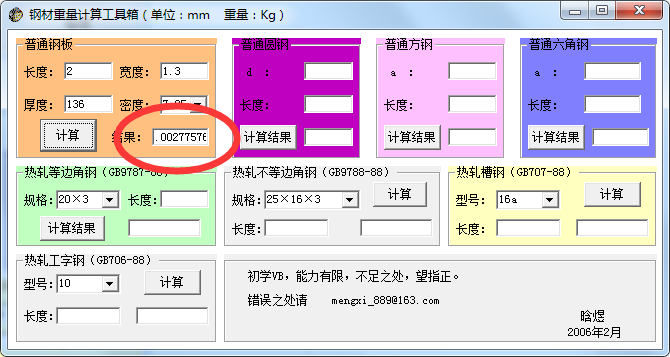

5. The calculation results are as shown in the figure

Steel weight calculation toolbox calculation formula

Steel pipe weight (kg) = 0.00617×diameter×diameter×length

Square steel weight (kg) = 0.00785 × side width × side width × length

Hexagonal steel weight (kg) = 0.0068 × width across sides × width across sides × length

Octagonal steel weight (kg) = 0.0065 × width across sides × width across sides × length

Rebar weight (kg) = 0.00617 × calculated diameter × calculated diameter × length

​​Angle steel weight (kg)=0.00785×(side width+side width-side thickness)×side thickness×length

Flat steel weight (kg) = 0.00785 × thickness × side width × length

Steel pipe weight (kg) = 0.02466 × wall thickness × (outer diameter - wall thickness) × length

Steel plate weight (kg) = 7.85 × thickness × area

Garden copper rod weight (kg) = 0.00698×diameter×diameter×length

Weight of round brass rod (kg) = 0.00668×diameter×diameter×length

Weight of round aluminum rod (kg) = 0.0022×diameter×diameter×length

Square copper rod weight (kg) = 0.0089 × side width × side width × length

Square brass rod weight (kg) = 0.0085 × side width × side width × length

Square aluminum rod weight (kg) = 0.0028 × side width 1 × side width × length

Hexagonal copper rod weight (kg) = 0.0077×width across opposite sides×width across opposite sides×length

Hexagonal brass rod weight (kg) = 0.00736 × side width × opposite side width × length

Hexagonal aluminum rod weight (kg) = 0.00242 × width across sides × width across sides × length

​​​Copper plate weight (kg)=0.0089×thickness×width×length

Brass plate weight (kg) = 0.0085 × thickness × width × length

Aluminum plate weight (kg) = 0.00171×thickness×width×length

Garden copper tube weight (kg) = 0.028 × wall thickness × (outer diameter - wall thickness) × length

The weight of the round brass tube (kg) = 0.0267 × wall thickness × (outer diameter - wall thickness) × length

​​ ​​Weight of round aluminum tube (kg)=0.00879×Wall thickness×(Outer diameter-Wall thickness)×Length

Note: The length unit in the formula is meters, the area unit is square meters, and the other units are millimeters. Round steel weight (kg) = 0.00617 × diameter × diameter × length

Comparison of similar software

      Sprocket parameter calculation toolThe official version is a compact and practical sprocket calculation software. The latest version of the sprocket parameter calculation tool has an intuitive and concise interface. Users only need to enter relevant data and click Calculate to easily calculate various data. The sprocket parameter calculation tool is simple to operate and easy to use, and is specially created for those engaged in related work.

      Two-way plate deflection calculation toolThe official version is a compact and easy-to-use two-way plate deflection calculation software. The latest version of the two-way plate deflection calculation tool is suitable for the calculation of reinforced concrete continuous beams. Through the two-way plate deflection calculation tool, users only need to input data parameters such as load information, geometric information, material strength information, reinforcement and other information, and cross-sectional form to calculate accurate results.

Steel Weight Calculation Toolbox Update Log

​​ 1. Added general material steel classification

​ ​ 2. Add new wires such as steel wire ropes

​​ 3. Added soft keyboard input method

4. Fix errors
