openwrt firmware

openwrt firmware is a Linux-based open source embedded operating system designed for routers and other network devices. Its core concepts are open, flexible and extensible, allowing users to achieve highly personalized network configurations through customized software packages. Compared with traditional router firmware, OpenWrt is more like a modular operating system, supporting comprehensive customization from basic network functions to advanced enterprise-level applications.

Software features

1. Core advantages

Highly customizable

Adopting a modular design, software packages (such as firewalls, VPNs, ad blocking, etc.) can be freely installed/uninstalled through the opkg package management system to meet diverse needs.

Broad hardware compatibility

Supports a wide range of hardware platforms from low-end home routers to enterprise-level equipment, including mainstream chip solutions such as Atheros, Broadcom, and MediaTek.

Powerful network functions

Integrated VLAN, QoS, BGP/OSPF routing protocol, VPN server/client, etc., suitable for deployment in complex network environments.

Open source and community driven

Completely open source and continuously optimized by global developers, the community provides rich documentation, tutorials and third-party software packages.

Lightweight and efficient

Optimized for embedded devices, it can still run stably on devices with low resources (such as 700MHz CPU + 128MB RAM).

2. Unique features

Multi-architecture support

Compatible with x86, ARM, MIPS and other processor architectures, and adapted to different hardware scenarios.

Security enhancement

Integrates iptables/nftables firewall, SSL encryption, intrusion detection and other security features, and improves reliability through open source auditing.

IoT extension

Supports running lightweight IoT applications and can be used as a smart home gateway.

Dynamic DNS and remote access

Realize remote management of devices without fixed IP through DDNS service, and combine with IPv6 to expand network accessibility.

3. User interaction design

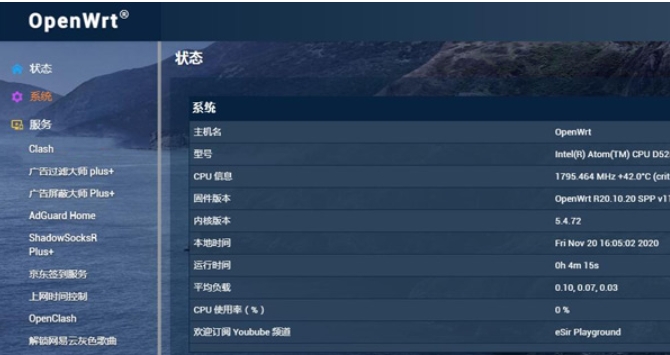

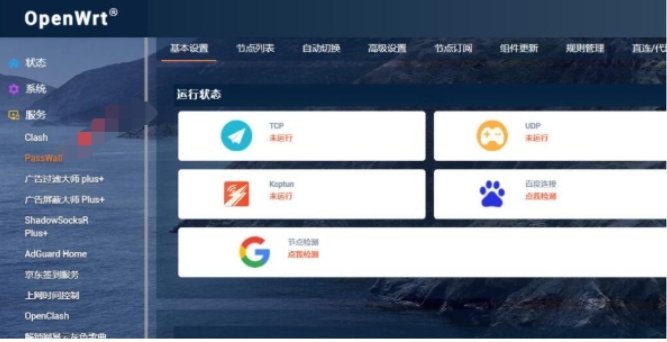

LuCI graphical interface

Provides a simple web-based management interface (LuCI) to support network configuration, software package installation and system monitoring.

Command line in-depth control

Access the underlying Linux system through SSH to achieve refined configuration (such as UCI command line tool).

Automated deployment

Supports CI/CD tools such as GitHub Actions to realize the automated process of firmware compilation, testing and release.

Software function

1. Basic functions

Network protocol support

Routing protocols: static routing, RIP, OSPF, BGP.

Wireless function: supports 802.11ac/ax (Wi-Fi 5/6), Mesh networking, and multi-SSID isolation.

VPN integration: OpenVPN, WireGuard, IPsec client/server.

Quality of Service (QoS)

Traffic prioritization, bandwidth rate limiting, application layer filtering (such as video conferencing priority).

Store and share

Connect the hard drive through the USB interface to achieve Samba file sharing, DLNA media server, and FTP access.

2. Advanced functions

ad blocking

Block ads based on DNS filtering (like AdGuard Home) or proxy services (like Privoxy).

Parental controls

Restrict network access by time period, device, and application type, and support log auditing.

Offline download

Integrate tools such as Aria2 and Transmission to directly download files to storage devices through the router.

Multi-WAN load balancing

Supports dual wired/4G/5G link aggregation to achieve failover and bandwidth overlay.

3. Development support

Software package development

Use Makefiles to build custom packages and distribute them via opkg.

Supports C/C++, Python, Lua and other multi-language development.

Hardware expansion

Connect sensors, relays and other peripherals through GPIO interfaces to realize smart home control.

API interface

Provides RESTful API and UBus interface to support third-party application integration.

FAQ

Flashing firmware failed

Symptom: The device becomes bricked or cannot be started.

Solution:

Confirm that the firmware version exactly matches the device model (for example, the MT7621 chip needs to correspond to the ramips architecture firmware).

Use the TFTP tool to flash the official firmware through the network cable, or restore through serial port debugging.

Back up the original firmware before flashing to ensure stable power supply.
