CAD quick viewing (VIP function can be used)

The official version of CAD Quick View is a drawing viewing software owned by Glodon, and is compatible with DWG drawings and Tianzheng drawings of various versions of AutoCAD. The official version of CAD Quick View is fast, compact and convenient to open drawings. Drawing comparison, continuous measurement, and text extraction are all a breeze, and graphic file browsing and management can be easily completed. Huajun Software Park provides you with the official version of CAD quick viewing for download.

CAD quick viewing software functions

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​

Opening drawings is faster and easier, no font plug-in is required, and all versions of drawings are displayed accurately

Extract text and tables

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​: Quickly extract drawing text and tables to Excel

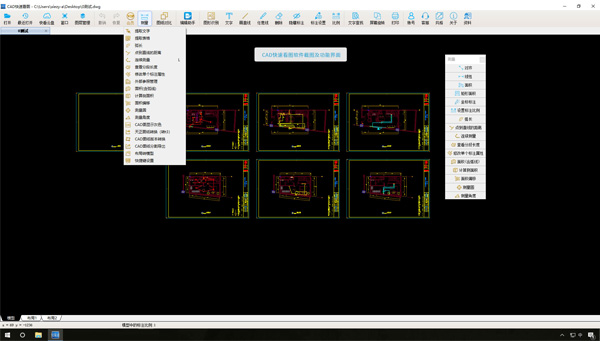

Measurement Statistics

​​​Quickly measure (straight line + arc), automatically count the measured length and area

CAD Quick View Installation Steps

​​ 1. After downloading CAD Quick View in Huajun Software Park, double-click to run the .exe file to enter the CAD Quick View installation interface. You can click [Install Now] and the software will be installed by default. Or you can click [Change Directory] to choose the installation location for CAD Quick View. After completing the selection, click [Install Now].

2. The CAD quick viewing software is being installed, you need to wait patiently for the installation to be completed.

3. CAD quick viewing software installation, come and experience CAD quick viewing! Click [Finish] to open the software.

Frequently Asked Questions about Quick Viewing of CAD Drawings

      How to print quick CAD drawings?

​ ​ 1. Open the drawing you want to print in CAD quick view,

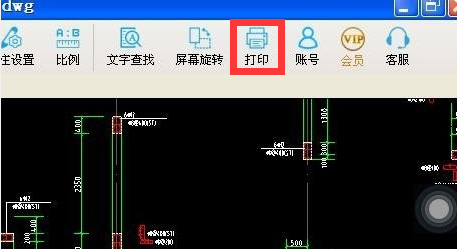

​ ​ 2. Click [Print] in the upper right corner of the page to print.

      How to print part of the drawing using CAD Quick View?

​​ 1. Open the drawing you want to print in CAD Quick View, and click the print and preview commands on the interface.

​​ 2. Find and click the local print command in the pop-up print window, and select the printed CAD drawing.

3. Set the paper size and direction of the CAD drawing. After completion, you can directly click to print the drawing.
