spring design

spring design

  • Size: 9.03M
  • Language: Simplified Chinese
  • Category: Mechatronics
  • System: Win

The official version of Spring Design is a professional tool specially built for spring design. The official version of the spring design software can help users easily design the springs they need. They only need to input parameters, and the specific data can be obtained based on the parameters. The spring types supported by the spring design software include helical compression springs, helical tension springs, helical torsion springs, single disc springs, combined disc springs, etc. Huajun Software Park provides you with free download of Spring Design 2023, come and experience it!

Spring design software features

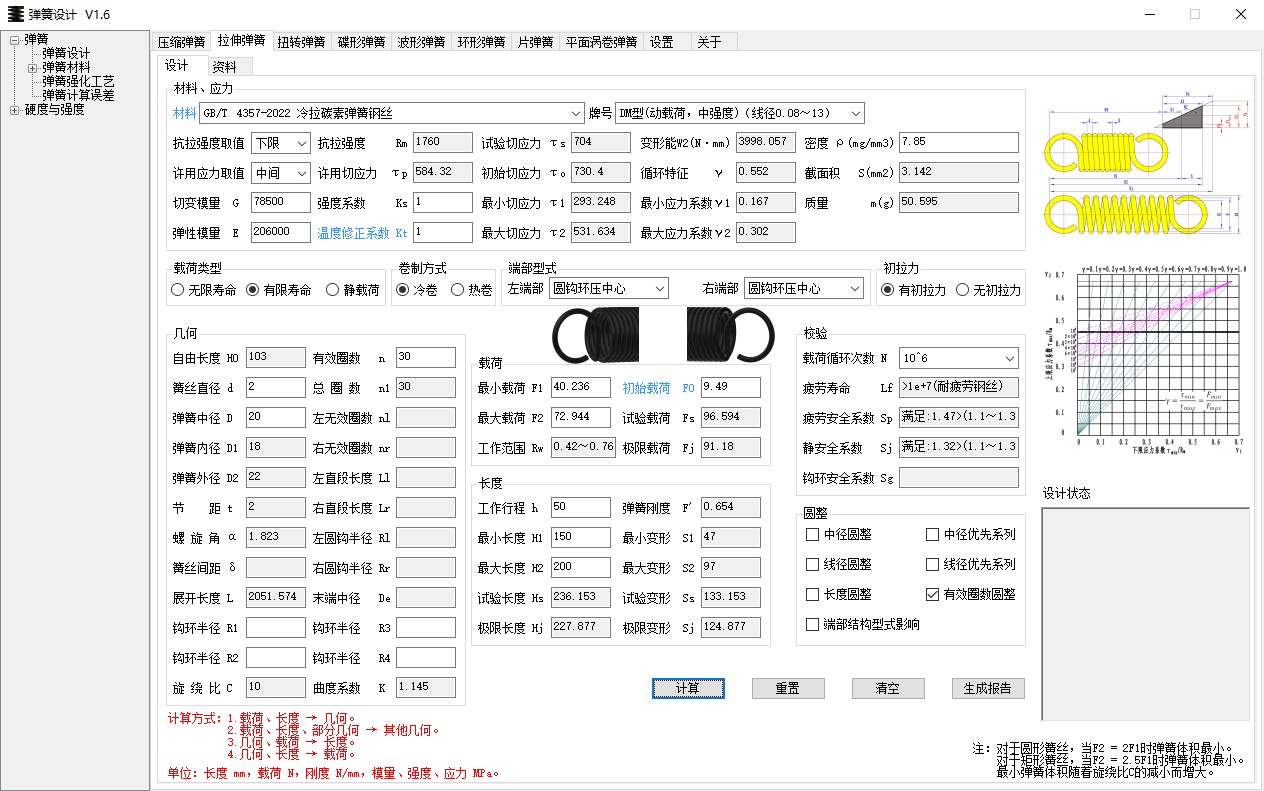

This is a relatively intelligent spring design or calculation software that can input different parameter combinations (necessary parameters), automatically solve unknown parameters based on known parameters, and change parameters to recalculate quickly and easily. Unlike other spring design software that requires step-by-step input or selection, changing parameters is equivalent to starting the design again.

The types of springs that can be calculated by this software include helical compression springs, helical tension springs, helical torsion springs, single disc springs, combined disc springs, slotted disc springs,Wave springs (partially overlapping single-layer wave springs, open single-layer wave springs, closed single-layer wave springs, superimposed multi-layer wave springs, peak-to-valley unsupported ring multi-layer wave springs, peak-to-valley supported ring multi-layer wave springs),Ring spring, leaf (wire) spring, plane scroll spring (non-contact, contact, constant load, constant torque, S-shaped spring, hairspring).

There are commonly used design materials in the program that can be viewed at any time.

The program includes spring parameter graphs, fatigue limit graphs, characteristic curve graphs, etc.

The setting parameters of the program are automatically saved and loaded.

Spring design and installation steps

​ 1. Download the installation package of the official version of Spring Design in Huajun Software Park

​ ​ 2. After downloading, unzip the compressed package into a folder named after this software

3. Open the folder and double-click the "exe" program

​​ 4. The spring is designed as green software and can be used without installation.

Spring Design Update Log

​ ​ 1. Add the calculation function of truncated cone spiral compression spring.

​ 2. Correct the wave spring design calculation error.

3. Fix other known issues.

Huajun editor recommends:

The spring has professional design, simple operation and powerful functions. It is one of the leaders in the software industry. Everyone is welcome to download. This site also provides Hanwen production planning and scheduling software, today's target, batch manager, etc. for you to download.


Version: 1.6.7 Official version | Update time: 2024-12-30
