ChipBang 1183 mass production tool (CBM1183)

ChipBank 1183 mass production tool MLC version, this program is suitable for the production and repair of chipbank main control. The indicator light of the flash disk produced and sold after May 2003 will flash slowly when the disk is plugged in. If the data is not copied, it will stay on. The indicator light will flash slowly during data transmission.

Generally, UMPTOOL V4.02 is used for low capacity, and UMPTOOLV4.02MLC is used for high capacity. If used incorrectly, a red error will be displayed or there will still be zero bytes after mass production. You can try changing the program. When using this version of the mass production tool to create an encrypted disk, just enter the format setting interface, select the "Partition 0 Write Protect" option, and then format it. The default password for formatting is "888888". The mass production tool cannot change the initial password.

Operating specifications:

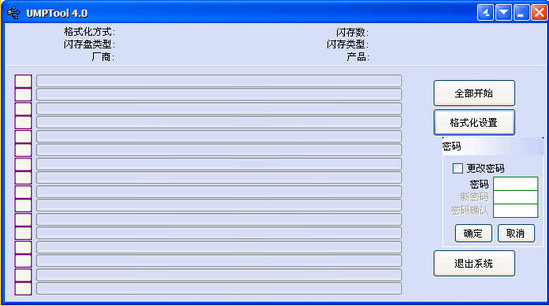

Open the file and double-click UMPTool Enter the mass production program, plug in the disk, and the program will automatically identify the chip and capacity. If it is red or the capacity display is wrong, the prompt is not to continue. Try another mass production program. If the prompt is still red, hand it over to the dealer. If it is a green chip model and the correct capacity, click "Start" at this time, and the program will automatically low-level. This process is a bit slow, don't be anxious. After the program is finished, there will be a green capacity display. Generally, chips will have bad blocks. This cannot be removed and does not affect normal use. Unplug the disk, click to exit the system, wait until the mass production program exits, then plug in the disk and it can be used normally. If there is a prompt to format, etc., it means that the mass production program has not completely exited and the computer needs to be restarted before it can be used normally.
