How to add chamfers to graphics in CAD2018-How to add chamfers to graphics in CAD2018

Time: 2022-04-20Source: Huajun Software TutorialAuthor: Shaobing

Recently, some friends have consulted the editor about how to add chamfers to graphics in CAD2018. The following will bring you the method of adding chamfers to graphics in CAD2018. Friends in need can come and learn more.

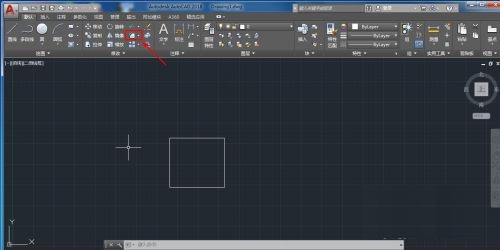

Step 1: Open the main page and enter the chamfering command (as shown in the picture).

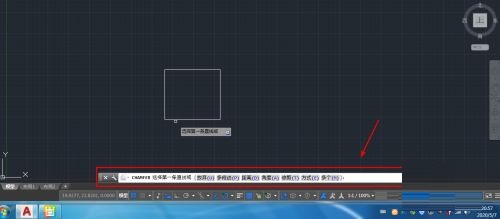

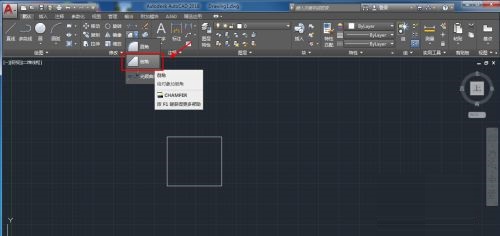

Step 2: Select the chamfer command (as shown in the picture).

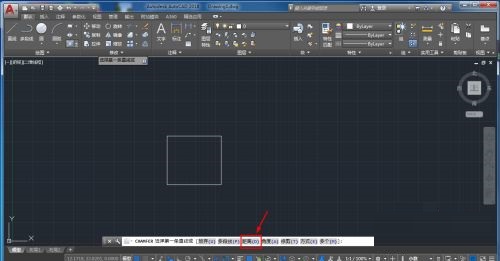

Step 3: Select the type of chamfer. Here we take distance as an example (as shown in the figure).

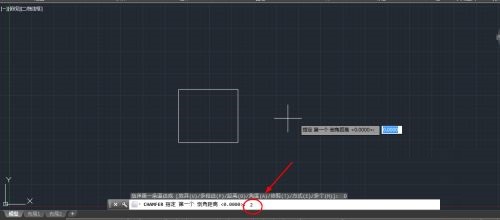

Step 4: Enter the chamfer distance data (as shown in the figure).

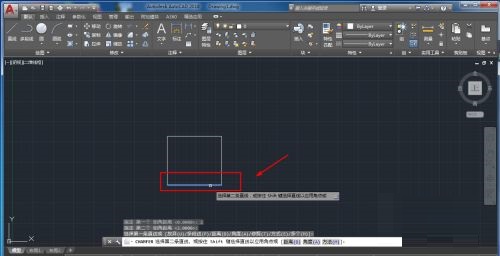

Step 5: Select the first line segment (as shown in the picture).

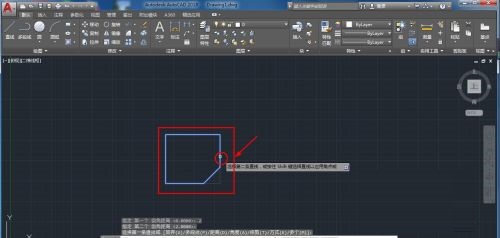

Step 6: Select the second limit line segment (as shown in the picture).

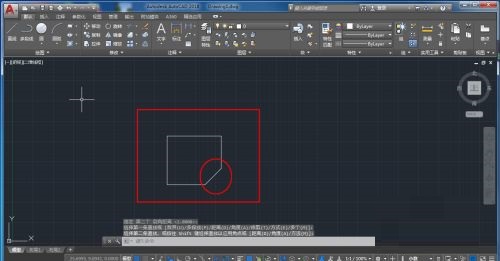

Step 7: The final chamfering is completed (as shown in the picture).


The above is the entire content of how to add chamfers to graphics in CAD2018 brought to you by the editor. I hope it can help you.
