In order to facilitate the management of database design, many partners have already purchased powerdesigner software. So friends, can you use powerdesigner and export sql scripts? Here the author will share the specific steps on using powerdesigner to export sql scripts. Friends who don't know how to operate it can learn together.
Open powerdesigner, you can open a project through a file or directly double-click the project to open it through powerdesigner.

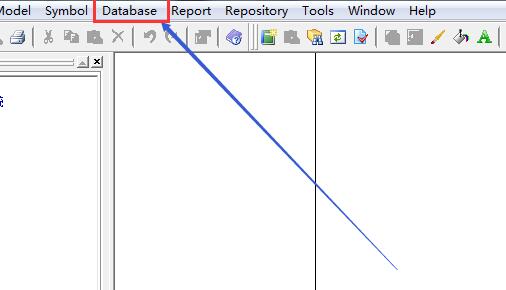

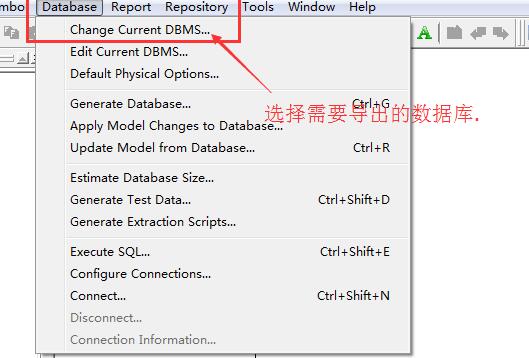

Modify the export database type. Click "Database" on the toolbar and select "Change Current DBMS" to modify the export script type. You can choose mainstream databases such as mysql, sql server/oracle, and db2.

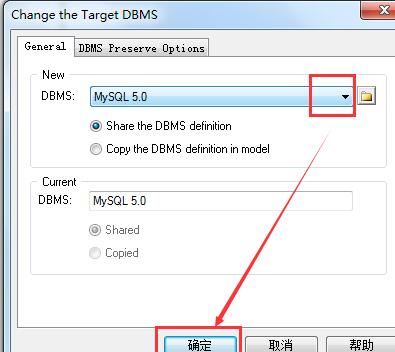

Click the drop-down menu in DBMS, select the database script to be exported, customize the name, and click OK.

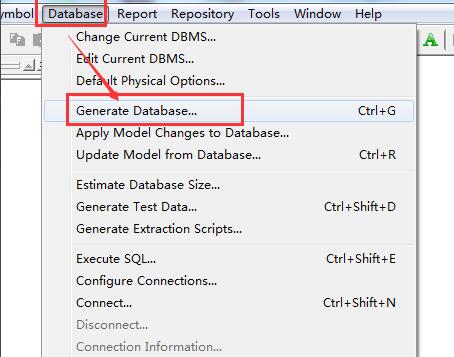

Export script. Click "Database" on the toolbar and select the "Generate Database" option to generate the database.

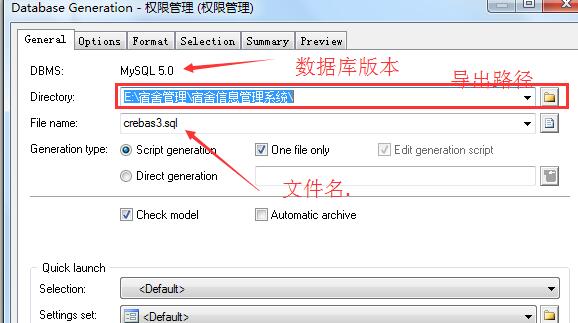

Save the file. Select the export script path and enter the script name. Click OK to export the tables in the project.

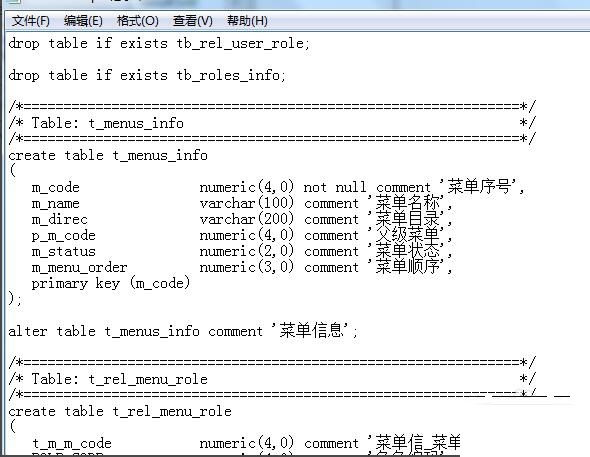

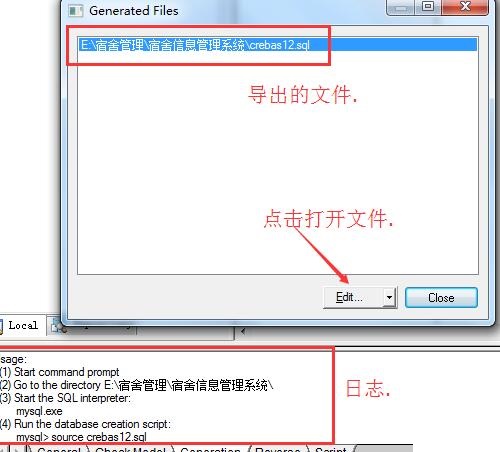

If the software does not report an error message, the export is successful. You can see the exported log and exported file in the console below. Click Edit to edit the file.
Friends who don't know the related operations of powerdesigner exporting sql script, don't miss this article brought by the editor.
