Currently, more and more friends are using UG for drawing paper. So during use, if you want to measure the angle between two objects, you need to use the measure angle command to achieve it. Next, I will share the detailed operation method of using the measure angle command in UG. Friends who need it can refer to it.
Method one:

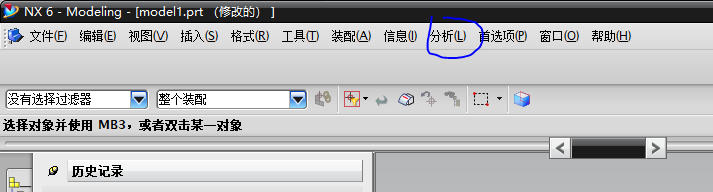

Click the Analysis tab in the menu bar in Modeling mode.

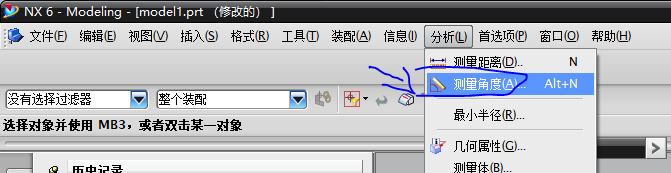

You can find the measure angle command in the pop-up menu.
Method two:
Right-click the empty space on the right side of the menu bar.

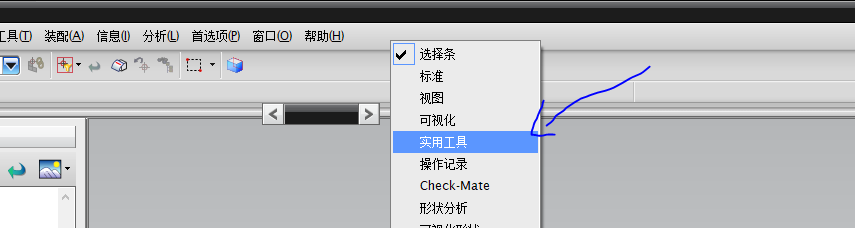

Select Utilities in the pop-up menu.
At this time, you can find the measure angle command in the utility toolbar.
If you cannot find the Measure Angle command, you can click the toolbar option, select Utilities under the Add or Remove button, and then check Measure Angle in the pop-up menu.
The above explains the detailed operation method of using the measurement angle command in UG. I hope friends in need can learn it.
