How does Xshell connect to the switch? -Xshell connection switch tutorial

Friends, do you know how to connect Xshell to the switch? Today I will explain the tutorial of connecting Xshell to the switch. If you are interested, please come and take a look with me. I hope it can help you.

Step 1: Prepare the USB to serial port cable and the serial port to network port cable. Note that the serial port interface has two opposite ports, one male and one female.

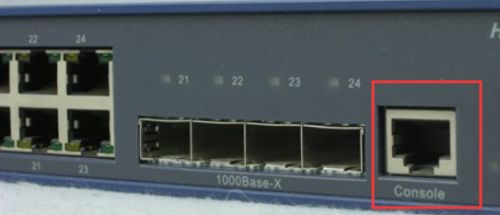

Step 2: Connect the network port to the switch, the USB port to the computer, and the two serial ports.

Step 3: Click on the desktop computer icon --->right-click and select Manage

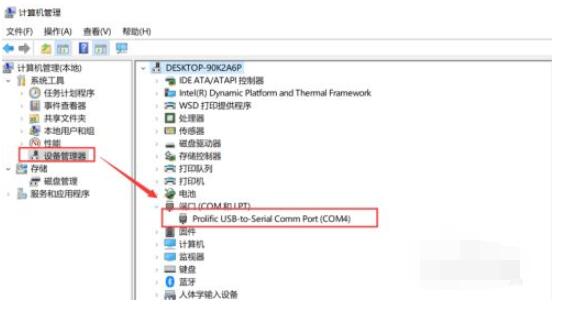

Step 4: Click Device Manager to view port information. The port here is COM4

Step 5: Open the xshell software, establish a reply, and select the protocol serial

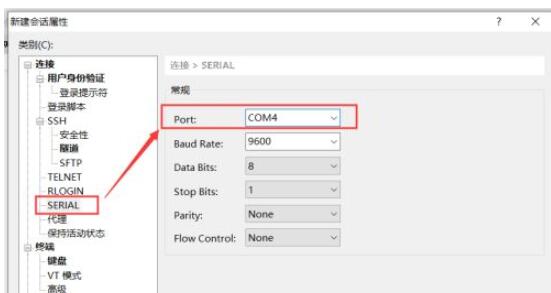

Step 6: Select serial and select the com port. Note that this must be consistent with the port in the device manager.

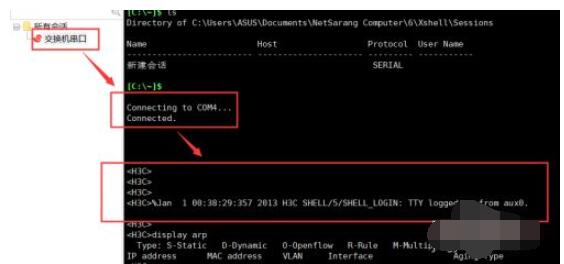

​​ 7Step 7: Click on the created reply. The connection is successful. Check and configure the switch!

The above is the Xshell connection switch tutorial brought to you by the editor.All the content, I hope it can help everyone.
