How to divide custom graphics into equal parts in AutoCAD 2007 - How to divide custom graphics into equal parts

Time: 2022-05-10Source: Huajun Software TutorialAuthor: Qingchen

How to divide custom graphics into equal parts in AutoCAD 2007? If you don’t understand yet, come here to learn about AutoCAD Here’s how to divide 2007 into custom graphics, I hope it can help everyone.

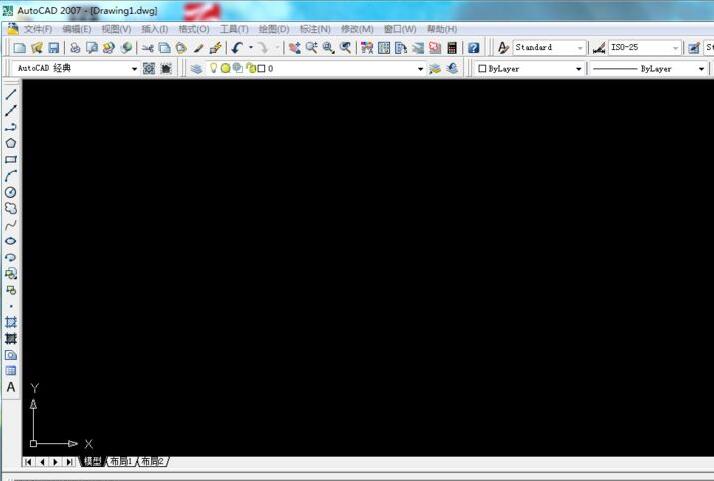

​ ​ First, open the AutoCAD 2007 software, enter the operation page, and set various parameters according to your usual usage habits.

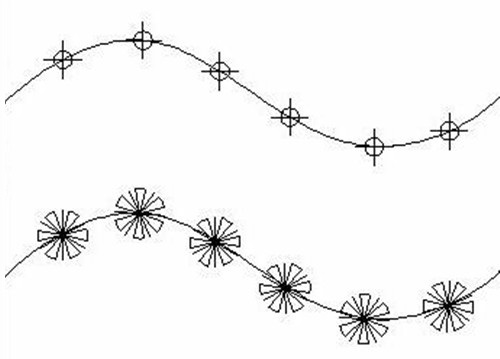

Then, divide the number into equal parts. Draw a curve in the work interface, click the menu bar button "Draw"-"Point"-"Finite number of equal parts"-select drawing curve-set the number of line segments-allow customized graphics to replace equal points.

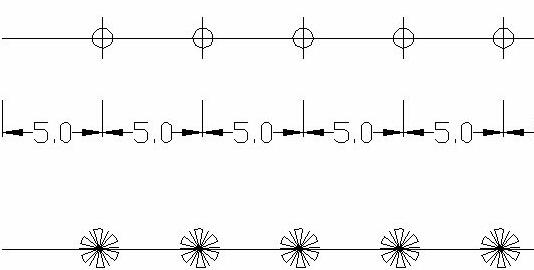

Then, divide it into equal parts at regular intervals. Draw a straight line in the work interface, click the menu bar button "Draw" - "Point" - "Equal Divide" - select to draw a straight line - specify the length of segments - allow customized graphics to replace equal points.


The above is the method of customizing graphics in AutoCAD 2007 shared with you. Friends in need should quickly read this article.
