Source Design Plug-in v6.5.5 Official Simplified Chinese Version

Features:

"Source Design" is a free registration-free software, green and compact, with a compressed package of just over 6MB (including instructions and commonly used fonts);
Available in three language versions: Chinese Simplified, Traditional Chinese, and English, please download accordingly;
Provides a multi-user system, you can draw for multiple companies at the same time and have multiple complete settings;
You can draw in millimeters, centimeters, decimeters, meters or even inches, and settings such as wall thickness and tiles will be adjusted accordingly;

Powerful yet simple to use, it does not affect the original AutoCAD or Tianzheng drawing habits at all;
Door and window blocks are fully compatible with Tianzheng 3 and can be used with each other;

All commands of "Source Design" are organized and added to the last item of the original CAD menu for easy reference;
Through the overview command, you can dynamically set the shortcut keys for all commands, which will take effect immediately;
Provides a wealth of "decorative components", "building components" and "architectural symbols" drawing commands to automatically trim building doors, windows, walls and columns anytime and anywhere;
Provides library management similar to ACDSee, with intuitive operation and easy maintenance;

Enhanced some basic functions of AutoCAD, such as "word processing, dimensioning, layer management, editing and drawing", etc.;
Built-in conversion program for importing graphics elements into Google Earth.

Function instructions:

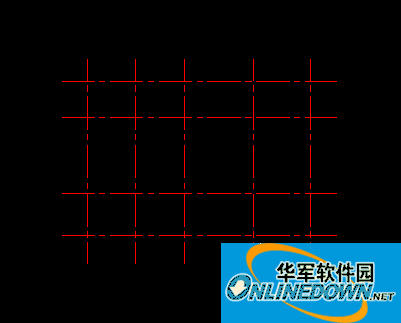

Automatic axis number dimension line

command: azh

****Select the axis to automatically arrange the axis number and two dimension lines

Please select the axis layer Straight lines in (can only process axes in two sets of directions at most):

● Just one step: select the axis

● Automatically arrange axis numbers and two dimension lines according to the selected axis

● Does not affect other layers

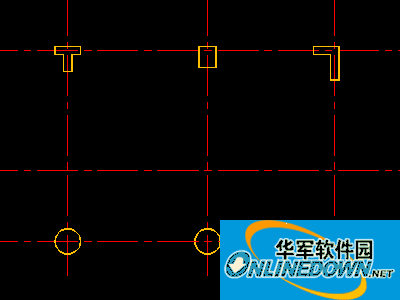

Paint automatic wall

command: ww

****Draw automatic walls and automatically trim the wall at the intersection of wall columns

The current thickness of the wall is 200 and the eccentricity is: 0

Offset eccentricity/Width wall thickness/<first point of wall>:

Offset eccentricity/Width wall thickness/<second point of wall>:

● Draw a flat wall just like a straight line

● The wall inside the column will be trimmed when it hits the pillar.

● The intersection between the wall and the wall will be trimmed.

● Press the "W" key to select wall thickness from the list

● Does not affect other layers

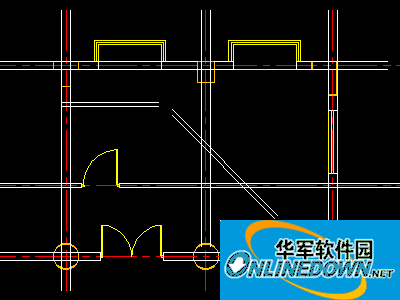

Smart wall clipper TW

command:tw

****Intelligent wall shears, automatically trim the intersection of wall columns

Select the area to trim the wall

Pick the first point of the range:

Pick the second point of the range:

● Just one step: select the range of wall studs to trim

● The wall inside the column is trimmed

● The intersections between walls are trimmed

● Does not affect other layers

Update log:

2016/06/29: Source Design v6.5.5
In the user system configuration file config.txt, add the "Rectangular/Circular Leading Box Parameters" setting item;
Modify the "automatic numbering (aBH)" command and other commands to output decimal places and area (mj) commands;
Modify the "Facade Cabinet Labeling (ddGZ)" command to select multiple layers;
The "Q5 Miscellaneous Command Panel" is modified as follows:
Improve the "toggle several related switches (gl)" command;

Modify the "Modify Line Type and Line Type Scale (xt)" command to allow manual input of the scale;
Modify the "Modify fill and fill pattern proportion (xtc)" command to allow manual input of the proportion;
Modify the "addition, subtraction, multiplication, division (+,-,*,/)" commands to be compatible with positive and negative numbers within strings;
Modify the "Select text (number) statistical area area (tmj)" command to output decimal places and area (mj) commands;
Modify the "Simulate ellipse with fewer arc segments (e2a)" command and add a dialog box;

Improved the "Convert splines and ellipses to arc polylines (cca)" command;
Improved the "Convert splines and ellipses to segment polylines (ccx)" command;
The "Q5 Miscellaneous Command Panel" is modified as follows:
Added "Line Segment Bisector Curve (s2x)" command;
Improve the "Move to the center of the table" command to be compatible with the block table;
Improved the "Copy to Table Center" command to be compatible with block tables;

Modify the "Generate Interior Facade Frame (LM)" command to be compatible with self-built doors and windows in the door and window layer;
Modify "Building/Structure Elevation (bg)" to use an independent coordinate system, which will not change the ucs;
Fixed the bug that dynamic commands such as "Building/Structure Elevation (bg)" may leave the screen behind;
Fixed a bug in the "explode text into line segments (ttX)" command in version 6.5.4 to improve conversion accuracy;
The "Q5 Miscellaneous Command Panel" is modified as follows:
Added "Car Side Mirror (CBJ)" command;

Modify the "Two-point Painting Door Nest Door (ADT2)"/"Two-point Painting Parameter Window (wd2)" command to allow you to input the wall thickness;
Modify the "Quick Add and Subtract Mask (jZZ)" command, which can add and subtract text and multi-line text masks, and rename it to (ZZ);
Fixed a bug in the "dynamic copy (cv)" command, a cross-space operation;
Fixed a cross-space operation bug in the "Planar Lighting Arrangement (dj)" command;
The "Q5 Miscellaneous Command Panel" is modified as follows:
Added the "Temporarily switch whether to fix the paper space scale (ddps)" command;
The "Q6 Miscellaneous Command Panel" is modified as follows:
Abolition of the "text plus mask (ttzz)" command;

Installation and uninstallation methods:

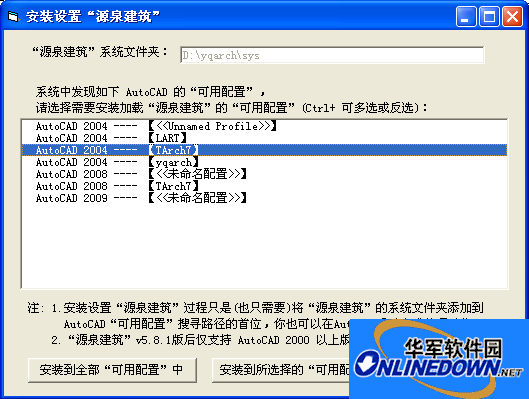

Software installation

Unzip the "Source Design" software package to any folder you specify (do not include special characters such as parentheses in the path), click the one-click installation program setup.exe (Gsetup.exe for Haochen CAD), follow the prompts to select the AutoCAD/Gaochen CAD user profile (Profile) to be associated, and you can simply complete the installation and setup process:

Note:
● It is strongly recommended to install AutoCAD extension tools (AutoCAD express tools). AutoCAD 2005 and above already comes with this extension tool. Just choose to install it when installing AutoCAD;
● The installation method in the Tianzheng building (5.0-9.0) environment is the same as above.

Software uninstall

After exiting all AutoCAD processes, click the one-click uninstall program uninst.exe (guninst.exe for Haochen CAD), follow the prompts to choose to leave all or part of the AutoCAD user profile (Profile), and whether to delete the entire "Source Design" installation directory.

Note:
● In AutoCAD, you can launch the yquninst command to eliminate the association between "Source Design" and the current AutoCAD user profile, uninstall the Source menu, etc. (This operation is only valid for the current user profile);
● You can even delete the "Fountain Design" installation directory without doing anything. When you start AutoCAD again at this time, you will be prompted that the source menu cannot be found, etc. After that, AutoCAD will automatically eliminate the association with "Source Design", which is equivalent to completely uninstalling it.

1. Optimized some functions

2. Solved many unbearable bugs
