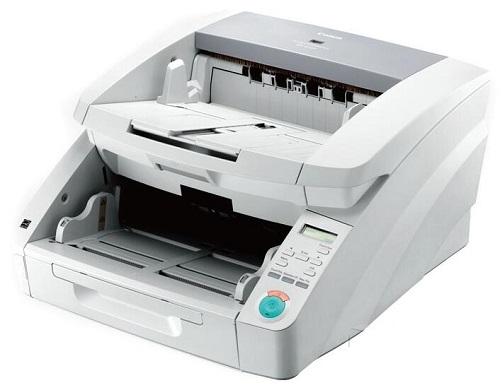

Canon CanonDR-G1130 scanner parameter details
Type desktop paper-fed document scanner
文件送入自动或手动送入
Document size width: 50.8-305mm
Length: 70-432mm; long document mode: 3,000mm
Continuous feeding of document thickness and weight: 20-209g/m2, 0.04-0.25mm
No separation mode: 20-255g/m2, 0.04-0.3mm
Feeding capacity 48mm stacking height or 500 pages 80g/m2
Scanning element CMOS image sensor
Light source LED (red, green, blue)
Scanning side single-sided/double-sided (double-sided: a single scan can automatically scan the front and back images of the document)
Scan mode black and white, error diffusion, advanced text enhancement, advanced text enhancement II, 256 levels of grayscale, 24-bit color, automatic color detection, long document, manual feed, high separation, low separation, no separation
Scanning resolution 150×150dpi, 200×200dpi, 240×240dpi,
300×300dpi, 400×400dpi, 600×600dpi
Scan speed*
(A4/LTR, 200dpi, landscape) Black and white 130ppm (single-sided)/260ipm (double-sided)
Grayscale 130ppm (single-sided)/260ipm (double-sided)
Color 130ppm (single-sided)/200ipm (double-sided)
Interface high-speed USB2.0
Scanner driver ISIS/TWAIN
Useful functions Job functions, ultrasonic double feed detection, staple detection, text enhancement, color removal and color enhancement, automatic
Paper size detection, 3D color correction, image rotation, skipping blank pages, edge enhancement, reducing moiré,
Prevent bleeding/remove background, contrast adjustment, shadow correction, brightness adjustment, skew correction, remove borders,
Scanning surface selection, scanning area setting, Addon setting, text direction recognition, binding hole removal, opposite scanning
Scanning, noise removal, notch removal, background smoothing, character enhancement, count only mode, verification scan, quick recovery
Complex system, multi-stream output
Energy requirements AC220-240V (50/60Hz)
Energy consumption: 94.3W (during scanning), 1.7W (sleep mode)
Operating environment: 10-32.5℃ (50-90.5°F), humidity: 20-80%RH
Dimensions (W×D×H) feeding tray closed: 480×535×315mm
Weight is about 22.8kg
Canon CanonDR-G1130 scanner driver installation instructions

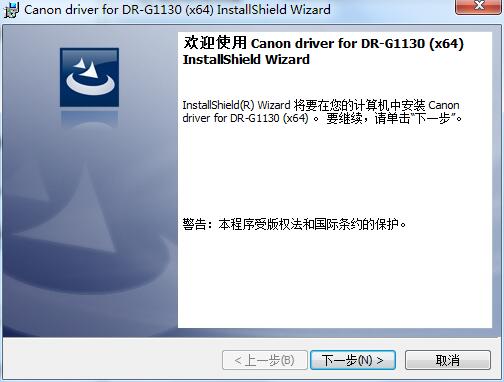

1. Download the Canon CanonDR-G1130 scanner driver official version installation package from Huajun Software Park. After unzipping, double-click the exe program to enter the installation wizard and click Next

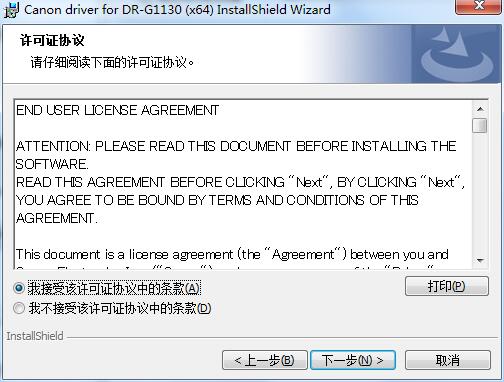

2. Read the license agreement, click "I accept..." and click Next

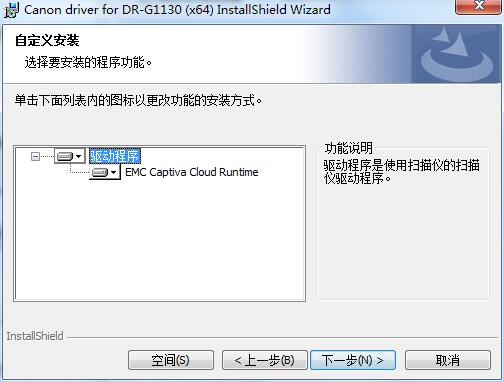

3. Select the program features you want to install and click Next

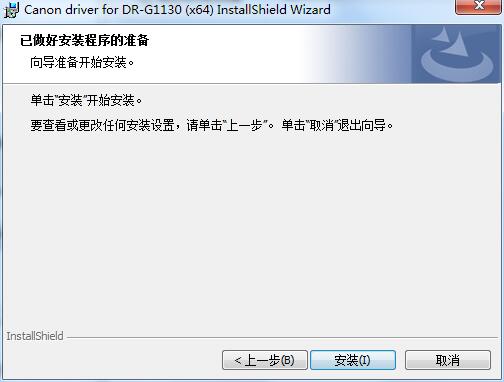

4. The installation program is ready, click Install
5. Follow the prompts to complete the installation.
Canon CanonDR-G1130 scanner driver update log
1.Fix some bugs
2. Optimized some functions
