AutoCAD is a powerful professional CAD software. It is a benchmark tool for architects, engineers and designers to create accurate 2D drawings and 3D models. It has revolutionized the design industry with its unparalleled accuracy and efficiency. AutoCAD is not only a powerful tool in the hands of designers and engineers, but also the cornerstone of digital collaboration throughout the design, construction and manufacturing processes. It provides users with flexible working methods through desktop version, web version and mobile version, and continues to promote the digital transformation of the design industry. Next, let Huajun editor explain to you how autocad exports pdf and how autocad exports pdf!

first step

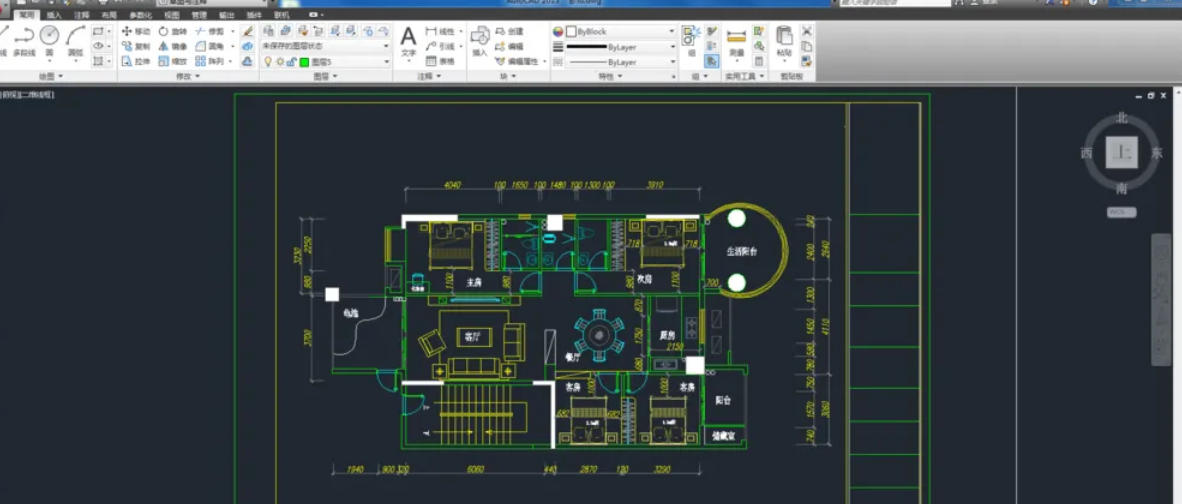

Start the AutoCAD software and open the drawing file that needs to be exported to PDF.

Step 2

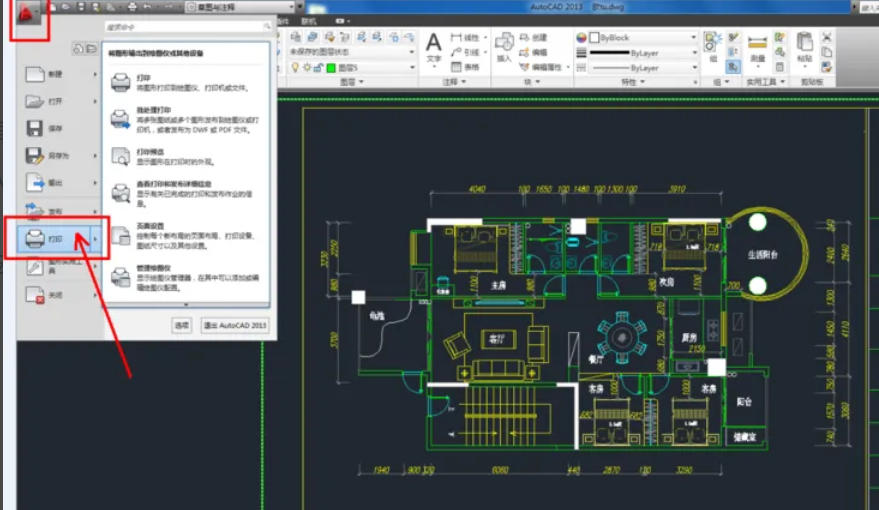

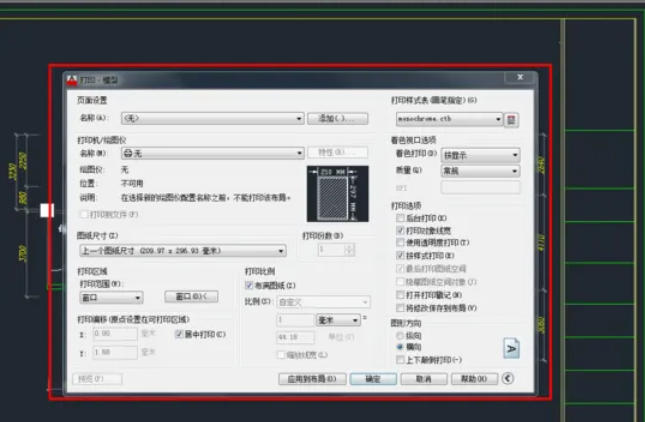

Click [File] → [Print] on the top menu bar (or directly press the shortcut key Ctrl+P) to pop up the print settings dialog box.

Step 3

In the "Printer/Plotter" option, select "DWG To PDF.pc3" (if it is not displayed, you need to confirm whether the PDF virtual printer driver is installed).

Step 4

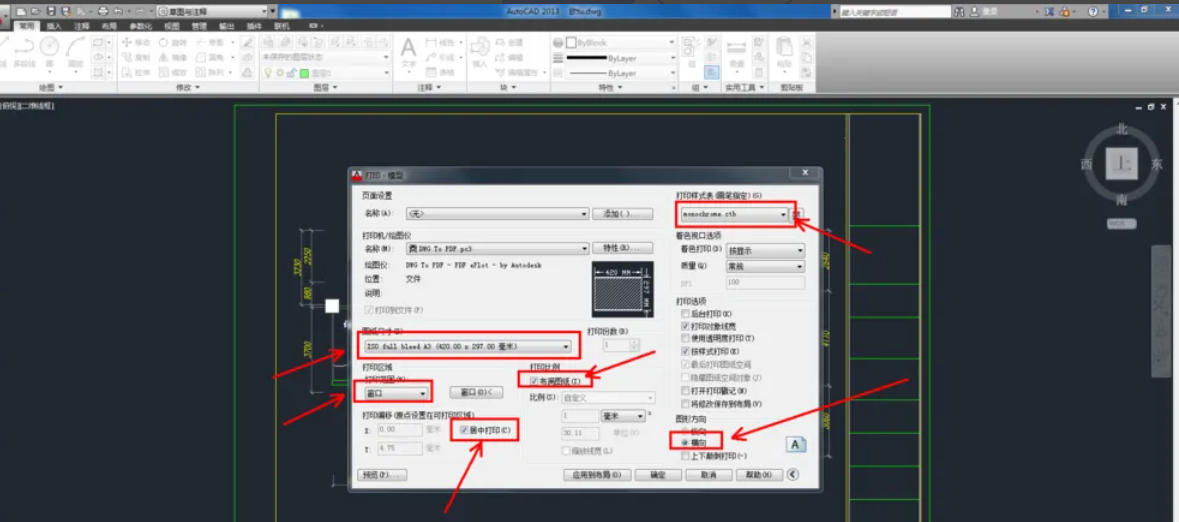

Set printing parameters

Drawing size: Choose the appropriate paper size (such as A4, A3, etc.) according to your needs.

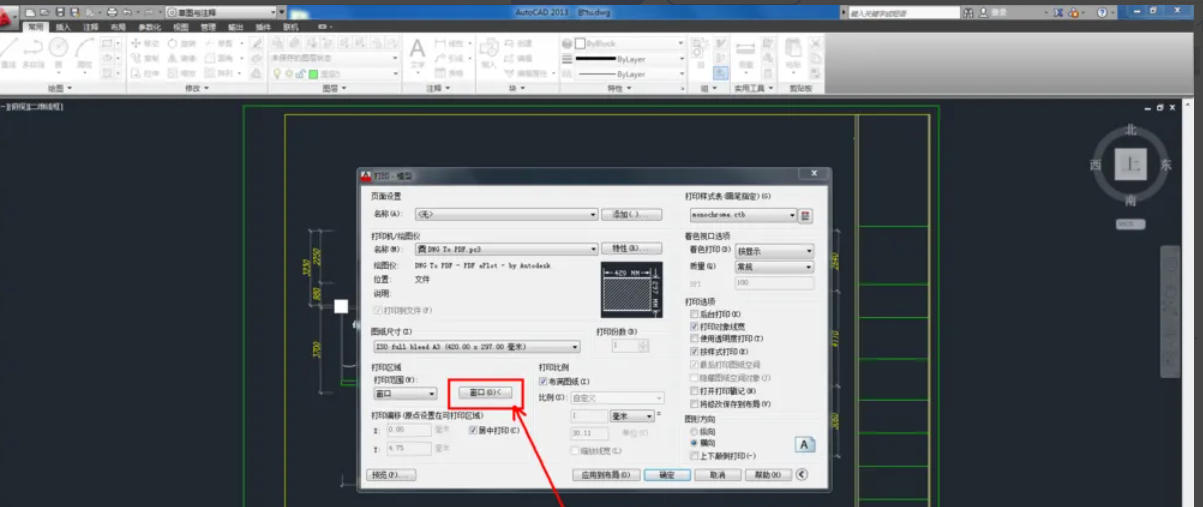

Printing range: Select "Window" mode and use the mouse to select the area of ​​the drawing that needs to be exported.

Plot style table: Usually select "acad.ctb" (default black and white style) or adjust the color, line width, etc. as needed.

Printing ratio: Check "Fill the drawing" or set the ratio manually (such as 1:1).

Drawing direction: Select "Portrait" or "Landscape" according to the drawing direction.

Step 5

Click the [Preview] button to check whether the drawing is complete and the layout is correct. After confirming that everything is correct, click [OK] to return to the print dialog box.

Step 6

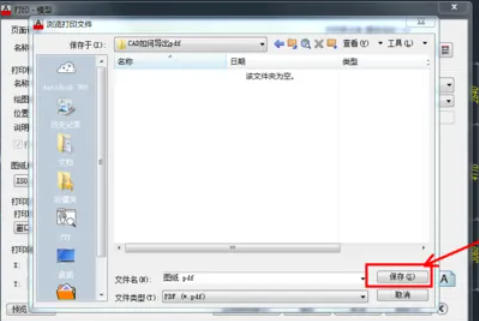

In the print dialog box, specify the save path and file name of the PDF file. Click [Save] and AutoCAD will automatically generate a PDF file.

The above is how to export pdf from autocad and the method of exporting pdf from autocad compiled by Huajun editor for you. I hope it can help you!
