Friends, do you know how to extract tables by quickly viewing CAD drawings? So today I will explain how to extract tables by quickly viewing CAD drawings. If you are interested, come and take a look with me. I hope it can help everyone.

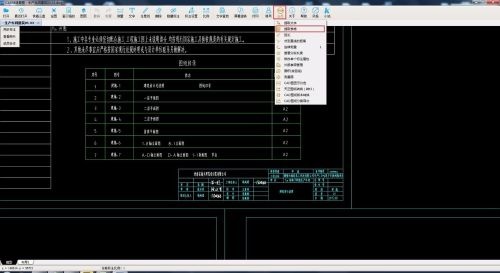

Step 1: First, we open the CAD Quick View software, open the drawing with CAD Quick View, log in to your account, click "Extract Table" in the VIP button, or right-click on the drawing, a right-click menu will appear, and select "Extract Table" (as shown in the picture).

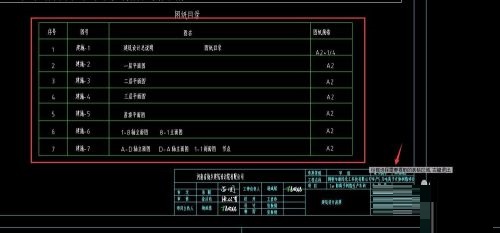

Step 2: Then we follow the prompts and use the left mouse button to completely select the outer edge of the table (as shown in the picture).

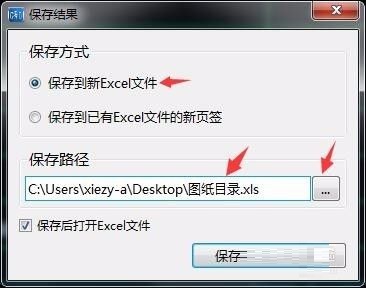

Step 3: Then after we select the box, a dialog box will pop up automatically. You can set the name of the excel after extraction, the save location, etc. For the first extraction, please select "Save to new excel file" and click Save (as shown in the picture).

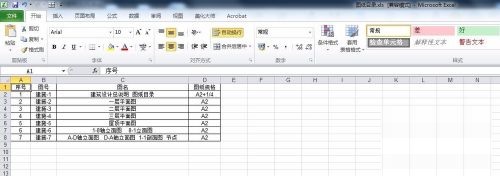

Step 4: Finally, the system will automatically open the table just extracted, and the extracted table will also be generated on the desktop (as shown in the figure).

The above is the entire content of how to extract tables by quickly viewing CAD drawings brought to you by the editor. I hope it can help you.
