Mixly input and output module explanation

Author: Changshan Paper Farmer Date: 2020-08-19

Mixly graphical programming software
Mixly (Misiqi) graphical programming software-1.4.4 official version

programming tools Storage size: 263.19 MB Time: 2021-11-10

Software introduction: The official version comes with Java8 running environment. Users can directly double-click mixly.vbs to use it and supports input and output: digital input, digital output,...

Download now

Many netizens said that they have just come into contact with the Mixly software and do not understand the input and output modules. For this reason, today the editor has shared with you the relevant content of the Mixly input and output modules. Friends in need should not miss it.

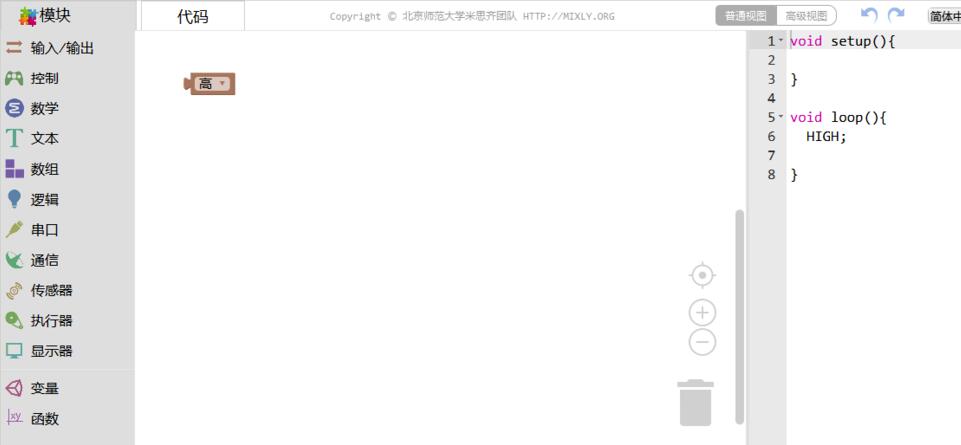

High and low value module, indicating the high and low levels of the pin

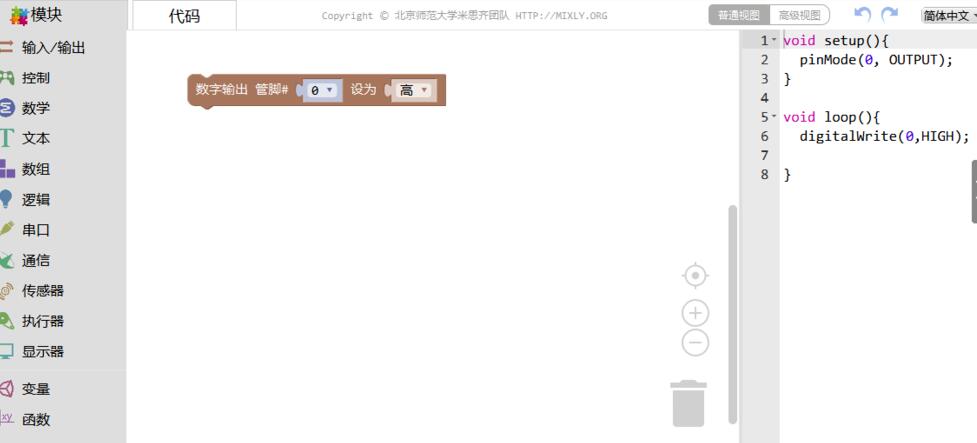

Digital output module, set a specific pin, the output is high and low level

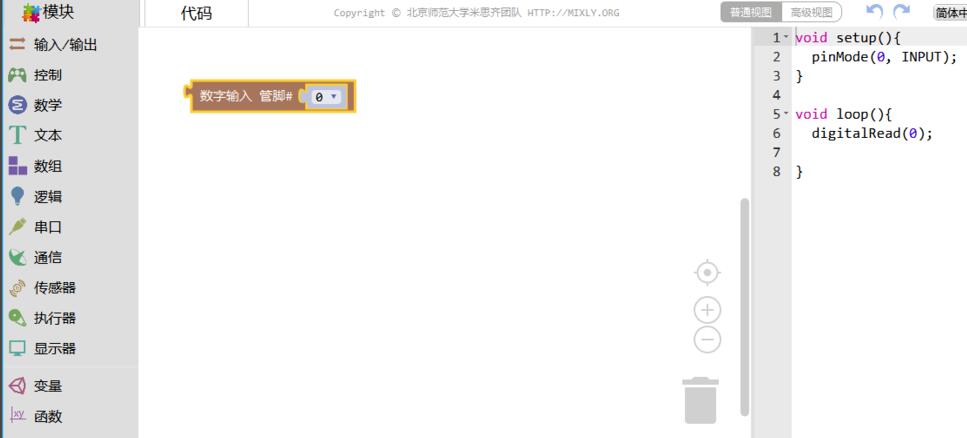

Digital input module, obtains whether the input level of a certain pin is high or low

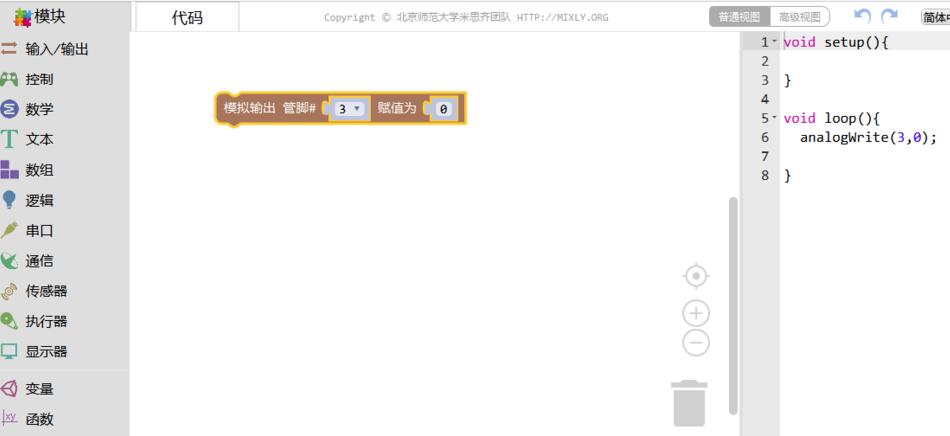

Analog output module, set a pin to output a specific voltage value

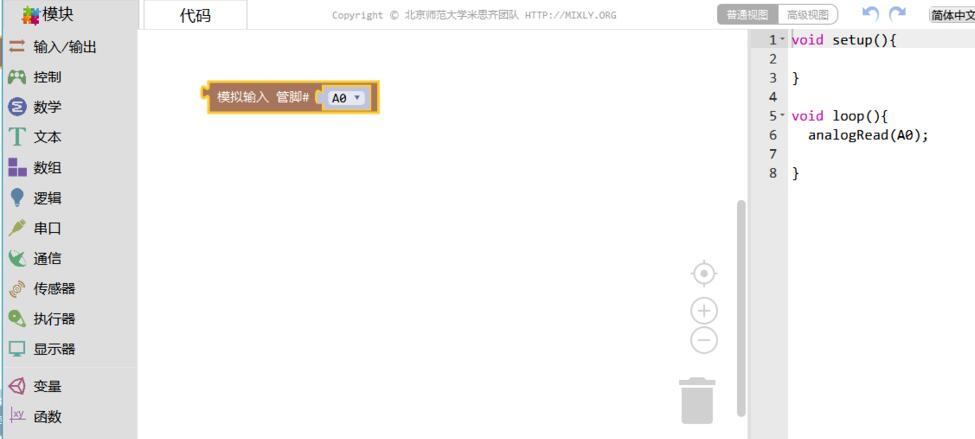

Analog input module to obtain the specific pin input voltage value

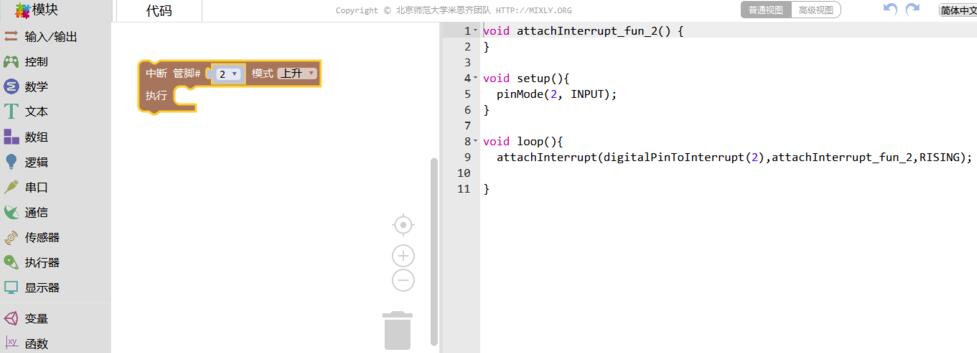

The interrupt control module generates an interrupt when the level of a certain pin changes. The program block in the execution module


The above is the relevant content of the Mixly input and output module that the editor has explained to you. Let’s learn it together. I believe it can help some new users.
