livesuit

Livesuit is a firmware flashing tool for Onda MP4, which can help users easily perform firmware upgrade, system upgrade, network synchronization and other operations on Onda MP4. The LiveSuit upgrade tool can select the upgrade mode as forced upgrade mode or normal upgrade mode. Huajun Software Park provides livesuit official free download. After installation, you can choose the firmware to flash MP4.

Forced upgrade mode:

1. Press the PVP (power) button for 10 seconds to turn off the power

2. Press and hold any key except the (power) key.

3. Connect the USB cable to the device

4. Press the button ten times in succession

5. Release all buttons again

Note: If the upgrade device cannot appear after 10 seconds, please unplug the device and repeat steps 1 to 5.

During the upgrade process, please do not unplug the device until Livesuite prompts that the upgrade is complete.

Upgrade instructions:

1. Unzip the downloaded LiverSuitPack_v1.07.rar and generate the LiveSuitPack_v1.07 folder

2. Open the LiveSuitPack_v1.07 folder, double-click the LiveSuitPack_v1.07.exe file to generate the files necessary for the upgrade. This step will automatically install the driver. Please click "Continue Anyway" to complete the automatic installation of the driver.

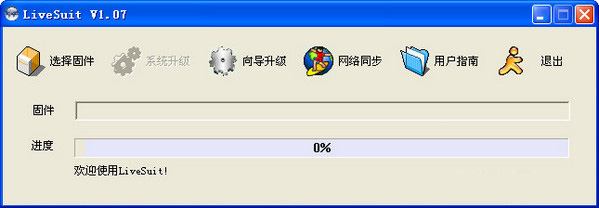

3. Find the upgrade tool LiveSuit.exe file and double-click to open it.

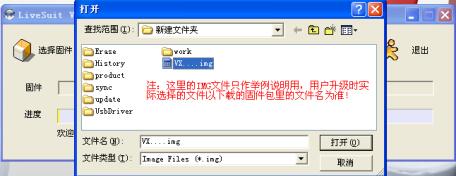

4. Click "No" in the above picture to close the user wizard upgrade, and click the "Select Firmware" button to select the firmware of the corresponding model (suffix IMG file) downloaded from the Onda official website, as shown below:

5. Connect the player to the computer through the USB data cable. After the removable drive letter can be seen on the computer, click the "System Upgrade" button to start upgrading the player. (Note: If the driver installation dialog box pops up at this time, please point the path to the UsbDriver folder in this directory and follow the next step to complete the driver installation). The upgrade interface is as shown below:

6. Click "Yes" and the confirmation dialog box will pop up again. Please select "Yes", as shown in the figure below:

7. In about half a minute, the upgrade progress bar walking interface will be displayed, as shown in the figure below:

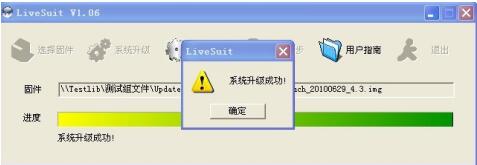

8. When the progress bar runs out and the following interface appears, it means the upgrade is successful:

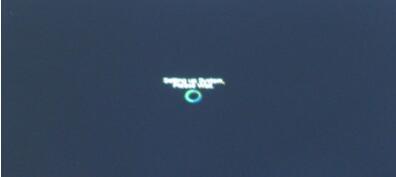

9. Please do not disconnect. The player will automatically start updating. The interface is as follows:

10. After the update is completed, the player will automatically enter the touch calibration interface (only for touch screen models). Please accurately click the center of the cross cursor to complete the calibration. Upgrade completed!!

Note:

1. Please back up the useful data stored in the player before upgrading. If a TF card is inserted into the player, please remove the TF card first;

2. Please read this instruction carefully before upgrading. Improper operation may cause the player to become unusable, and you need to contact the place of purchase to return it to the factory for repair.
