Tianzheng

TianzhengThe official version is an architectural design tool suitable for architectural designers. The latest version of Tianzheng uses computers and graphics equipment to help designers carry out design work. It can also help designers with calculations, information storage and drawing. andTianzhengIt also provides a file interface for graphics export commands, which can export graphics drawn by the new version. Huajun Software Park provides Tianzheng software download service. To download other versions of Tianzheng software, please go to Huajun Software Park!

Tianzheng software functions

1. Target positioning of software function design

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​Based on the technology of synchronous completion of the 3D model and floor plan, we can further meet the requirements for repeated revisions of building construction drawings.

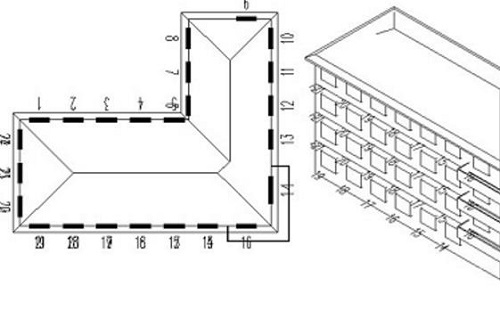

Utilizing the advantages of Tianzheng’s professional object modeling, we provide sunlight analysis models (as shown below) and occlusion models for sunlight analysis in planning and design; provide energy-saving building analysis models for mandatory building energy-saving design.

Achieving high efficiency, intelligence and visualization has always been the development goal of Tianzheng architectural CAD software.

​​ 2. Customized object construction professional components

Tianzheng has developed a series of custom objects to represent professional building components, which are easy to use and highly versatile. For example, various wall components have complete geometric and material characteristics. It can be operated like ordinary graphics objects in AutoCAD. You can use the pinch points to stretch and change the geometric shape at will. It can be intelligently linked with doors and windows according to their mutual relationship (as shown below), which significantly improves editing efficiency.

Tianzheng Architecture has a file interface for converting old images, which can convert TArch Graphic files drawn by Tianzheng software versions below 3 are converted into new object formats to facilitate quick upgrades for original users. At the same time, a file interface for graphics export commands is provided, which can be used to convert TArch 8.0 The graphics drawn by the new version are exported and used as downward professional condition charts.

​ 3. Complete user interface

Convenient intelligent menu system

It adopts a new on-screen menu with pictures and texts, clear hierarchy, folding structure, and supports mouse scrolling operation, making switching between submenus quick and easy.

The right-click function of the screen menu is rich, and it can perform command help, directory jump, startup command, customization and other operations.

During the drawing process, the right-click shortcut menu can sense the type of the selected object and pop up the relevant editing menu. You can customize the personalized menu to suit the user's habits. Chinese Pinyin shortcut commands make drawing faster, etc.

Tianzheng software features

Tianzheng Architecture 8.0 applies professional object technology, based on the technology of synchronous completion of three-dimensional models and floor plans, to further meet the requirements of repeated revisions of building construction drawings.

Utilizing the advantages of Tianzheng’s professional object modeling, we provide sunlight analysis models (as shown below) and occlusion models for sunlight analysis in planning and design; provide energy-saving building analysis models for mandatory building energy-saving design. Achieving high efficiency, intelligence and visualization has always been the development goal of Tianzheng architectural CAD software.

​ ​​Custom object construction professional components

Tianzheng Architecture 8.0 has developed a series of custom objects to represent professional building components, which are easy to use and highly versatile. For example, various wall components have complete geometric and material characteristics. Can be manipulated like ordinary graphics objects in AutoCAD, You can use the pinch points to stretch and change the geometric shape at will, and intelligently link it with doors and windows according to their mutual relationship (as shown below), which significantly improves editing efficiency. A file interface for converting old images into TArch Graphic files drawn by Tianzheng software versions below 3 are converted into new object formats to facilitate quick upgrades for original users. At the same time, a file interface for graphics export commands is provided, which can be used to convert TArch 8.0 The graphics drawn by the new version are exported and used as downward professional condition charts.

How to use Tianzheng

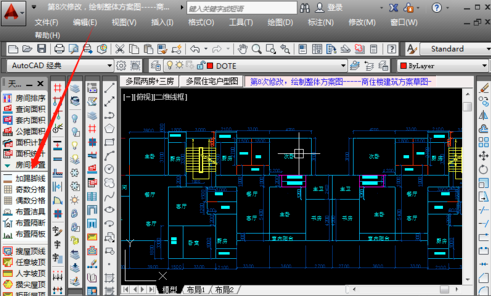

You can see that the original interface is displayed like this, with many toolbars.

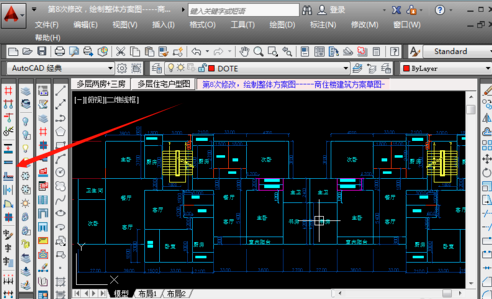

The current situation is that this toolbar is missing, which is very inconvenient for operation. Here is how to bring it out again.

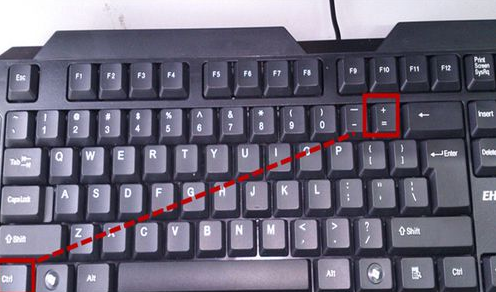

On the keyboard, find the "ctrl" key and the "+=" key. Press and hold the combination of these two keys i.e. "ctrl+".

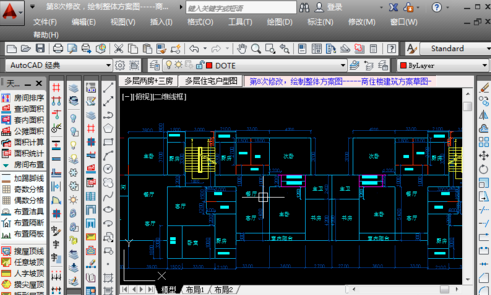

It can be found that the toolbar in Tianzheng Building has come out again, returning to the familiar interface before.

Tianzheng FAQ

      Question: How to customize the Tianzheng Building user interface?

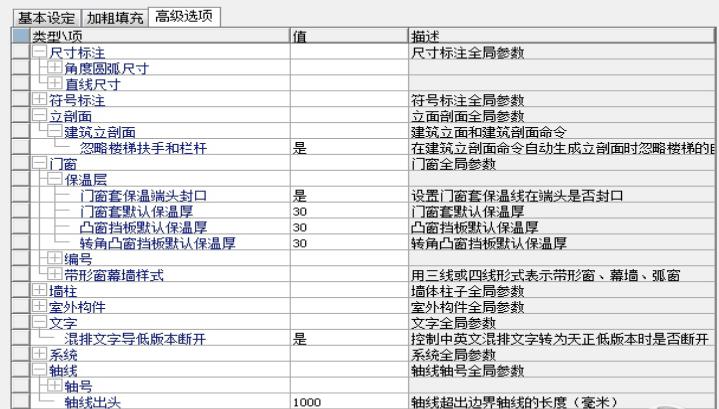

Answer: Through [Customize] and [Tianzheng Options], you can customize the software interface form, operation commands, and architectural design parameters.

Comparison of similar software

      Tianzheng Construction T20It is a design tool developed based on AutoCAD and REIT dual platforms. Tianzheng Architecture T20 can help designers change drawing tools and reduce labor burden.

      Tianzheng water supply and drainageThe official version is a drainage system design software with very practical functions. The official version of Tianzheng Water Supply and Drainage is a new intelligent software launched by Tianzheng Company to the majority of designers after summarizing many years of experience in water supply and drainage software development, combined with the characteristics of current domestic similar software, and collecting the functional requirements of a large number of design units for water supply and drainage software.

Tianzheng update log

​​ 1. Provide a new startup interface, which can automatically update the list according to the currently installed platform version and support multi-user operation.

​ 2. Added new drawing and editing functions for various special-shaped staircases such as double parallel stairs, double corner stairs, cross stairs, scissor stairs, double three-run stairs, triangular stairs, rectangular corner stairs, etc.

3. The comprehensively improved area query statistics function and room area object can count various area indicators of residential buildings according to the "Residential Building Design Code" and the relevant documents of the Ministry of Construction restricting the proportion of large apartments, and automatically generate corresponding tables for design review Submit for approval.

4. Various symbol objects have been greatly enhanced to better meet the needs of engineering drawings.

5. More flexible user customization function. Designers can define shortcut keys, interface and various default parameters for drawing according to their own drawing habits and drawing requirements.
