Weiyi CAD graphics drawing designer

Weiyi CAD graphics drawing designer green version

1. Software usage:

The strength of CAD is precise drawing, which is neater than hand-drawing. Mainly used in engineering drawing, such as construction, electricity, machinery, municipal clothing design, etc. The architectural aspect is quite extensive, such as architectural plans, elevations, architectural structural drawings, and interior design.

However, professional CAD software is bulky, cumbersome to use, and requires dedicated time to learn, which is not necessary for general drawing users. This CAD software is small in size, green and requires no installation. The key is that it is super easy to use and is a powerful assistant for small drawings. Mainly used for teacher and student education and teaching, such as: biology, physics, chemistry, mathematics drawing teaching graphics, geography drawing base map, etc.

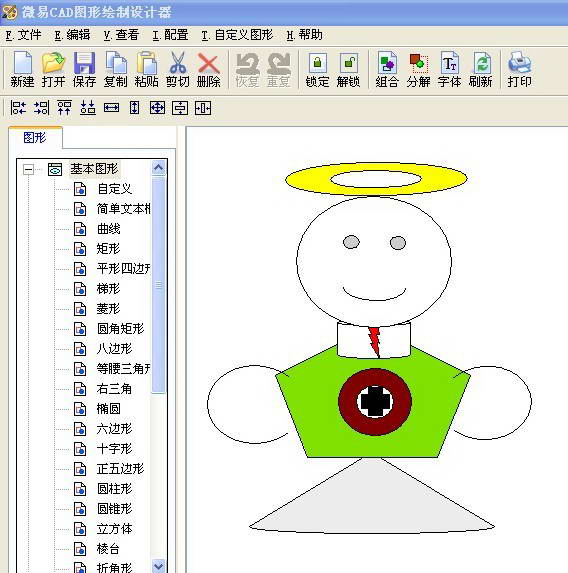

2. Functional structure:

1. Menu area: various function menus and commands.

2. Graphics area: graphics components, tool navigation.

3. Workspace: drawing platform.

3. How to use:

1. Create basic graphics components:

Method 1: Select the graphic component navigation on the left. When you click on any graphic component, the component can be displayed in the preview area in the lower left corner. The green origin is rotation, the yellow origin is deformation, and you can drag it to any size. After modification, double-click the preview area to transfer the modified graphic to the work area.

Method 2: Select the graphic component navigation on the left, double-click any graphic component, and the component can be transferred to the workspace.

2. Graphic component editing: Click on the graphic component just created in the upper left corner of the workspace and drag it to the appropriate position. The green origin is rotation and the yellow origin is deformation. You can drag it to any size. Right-click to pop up the graphics component properties box, which only draws graphics.

3. Several graphic components can be combined or decomposed, and any graphic component can be locked or unlocked. The software provides 111 basic components that can be customized if the basic components are not enough.

4. Save or print. Saved drawing files can be edited and modified.
