Automated testing tools

An automated testing tool is a software that focuses on the automated execution of functional testing and regression testing. It supports a variety of technology frameworks (such as Windows, IE, Java, Flex, Silverlight, WPF, QT, etc.), and realizes automated execution of test cases by recording or writing scripts, replacing manual repetitive operations, significantly improving testing efficiency and reducing labor costs.

Software features

1. Instrument compatibility: covering multiple types of testing requirements

The system not only supports basic test instruments, but can also be expanded to professional radio frequency instruments to meet basic to complex test scenarios.

Basic instruments: desktop multimeter, DC power supply, oscilloscope.

Expanded instruments: network analyzers, spectrum analyzers and other radio frequency equipment.

Customized equipment: Cooperate with self-made test boards through the serial port to adapt to personalized testing needs.

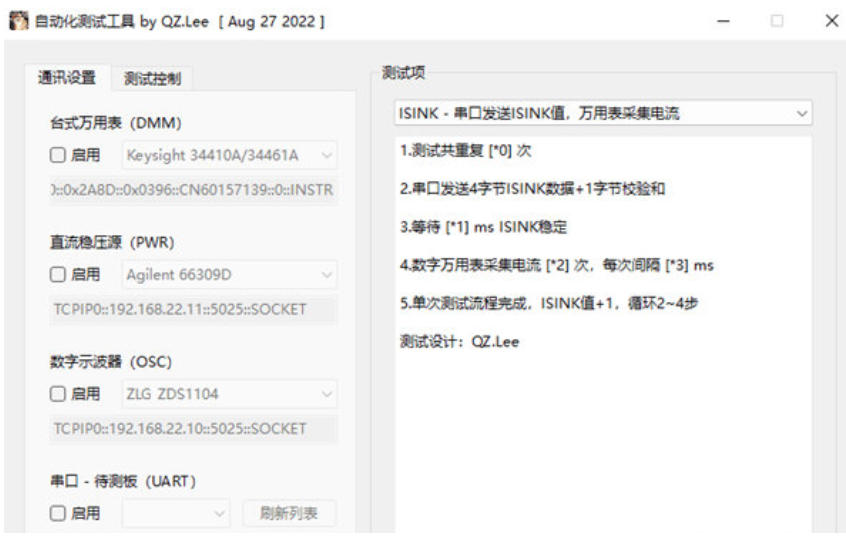

2. Flexible connection method: adapt to different hardware interfaces

It uses the SCPI standard instruction set as the core communication protocol and is compatible with a variety of physical connection interfaces to ensure stable docking with various types of instruments.

Mainstream interfaces: USB, Ethernet, RS232, GPIB.

Custom interface: Supports serial port connection to self-made boards, reducing the difficulty of adapting to special test scenarios.

3. Communication of objects under test: a single interface simplifies docking

The system under test (board card or chip) communicates with the software uniformly through the serial port, eliminating the need for complex multi-interface configuration and reducing docking and debugging time.

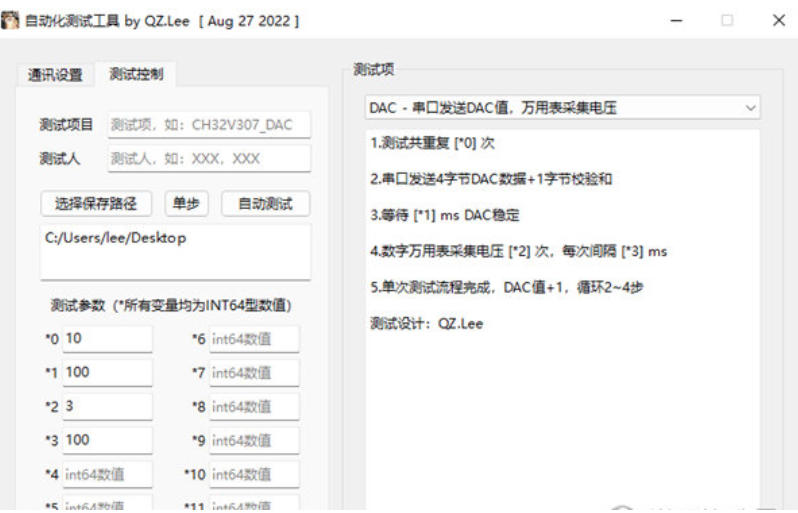

4. Test operation mode: taking into account debugging and efficiency

Two operating modes are provided to meet the needs of different stages of testing and balance debugging flexibility and batch testing efficiency.

Single-step debugging mode: suitable for test script development and fault location, and can verify test logic step by step.

Automatic operation mode: Suitable for batch testing scenarios, without manual intervention, the entire process of testing is automatically completed.

5. Core advantage functions: precise control and convenient analysis

Accurate time estimation: The completion time of the entire testing process can be estimated in advance to facilitate test planning scheduling and resource allocation.

Flexible result export: Test results are saved in TXT format by default. In addition to being directly copied to Excel, they can also be automatically imported into Excel through text parsing tools (such as Python scripts), or converted to CSV format for one-click import, reducing manual processing costs.

FAQ

Element positioning failed

Problem: XPath cannot locate the element.

Solution:

Check server response time, add wait time (such as implicitly_wait(10)).

To handle dynamic ID issues, use additional attributes or combine conditional targeting.

Escape special characters (such as spaces, parentheses) to ensure correct XPath expressions.

Switch to the target iframe or frame before performing positioning.

1. Fixed several bugs;

2. Optimize details;
