Mixly graphical programming software

Mixly graphical programming softwareThe official version comes with a Java 8 running environment. Users can directly double-click mixly.vbs to use it and support input and output: digital input, digital output, analog input, analog output, interrupt control, pulse length, and shift output. ! Mixly (Misiqi) graphical programming software 2025 free download.

Mixly graphical programming software software functions

​​​Mixly comes with a Java8 running environment. Users can directly double-click mixly.vbs to use it. Its supported modules are:

​ ​​Input and output: numbersinput, digital output, analog input, analog output, interrupt control, pulse length, shift output

Program structure: time delay, conditional execution, loop execution, time acquisition, initialization

Mathematical transformations: number mapping, number constraints, mathematical operations, rounding, randomization, trianglefunction

Text output: text connection, text to number, number to text

Array list: define array, get array value, change array value

Logical processing: conditional judgment, logical operation,? operation

​​Sensor module: ultrasonic, DHT11

Execution module: sound playback, servo control, I2C LCD module

Communication module:serial portCommunication (new serial port selection and baud rate setting), infrared communication, I2C communication, SPI communication (new)

Storage module: EEPROM reading and writing, SD card writing

Variable constants: high and low, true and false, floating point variables, integer variables, Boolean variables, string variables

Function processing: defining functions and executing functions

Third-party extensions: DFROBOT, SEEEDSTUDIO, MAKEBLOCK, MBOT robot, SENSE box, SENSE robot, LuBot (new), Nova (new)

Main control board selection: Currently all official Arduino motherboards are supported (including Arduino DUE and Arduino ZERO), ESP8266

Its program processing functions include:

Program writing: Users can either write through graphical code or directly through text (the graphical code will not change after writing)

Program compilation: Users can directly compile the program through Mixly

Program uploading: Users can upload programs directly through Mixly, which supports direct uploading without compilation.

      codeSave: Users can save, save and import graphical code

Interface scaling: Users can control the interface scaling at will, making it easier for tablet users to use

Module import and export: Users can export functions into modules to facilitate import and use by other users. It also supports importing manufacturers’ libraries with CPP.

Module management: delete and rename modules imported by users

Serial port monitoring: serial communication tool (new baud rate setting)

Features of Mixly graphical programming software

      [Concise and clear programming interface]

The area on the left is the Blocks classification area; the middle is the programming area; the icons on the far right correspond to program centering, program block enlargement, reduction, and deletion; the gray toolbar at the bottom is the function menu; and the bottom is the information display area.

【Powerful preset module】

In addition to common if/else conditional statements, for/while, mathematical operations,portIn addition to basic program operations such as reading and writing, Boolean operations, etc., Mixly is taught by Ardublock and also supports: complete type variable declaration, complete subroutines, array/list support, triggered interrupts and scheduled interrupts, serial communication, pulse detection, fan-out

Mixly (Misiqi) graphical programming software installation steps

Download the compressed package of the official version of Mixly graphical programming software in Huajun Software Park, right-clickUnzipto local disk.

Annotation

It is recommended to decompress to the root directory of the hard disk. The path cannot contain Chinese and special characters (such as:. _ ( ), etc.).

Recommended installation path is E:Mixly

The directory after decompression is as shown in the figure.

The software you decompress for the first time only contains the most basic files and cannot be run directly. You need to run one-click update.bat or update.bat to download the latest version of Mixly software.

After waiting for a while, the update progress will be displayed.

When you see the prompt "Mixly update completed", it means the software download is complete.

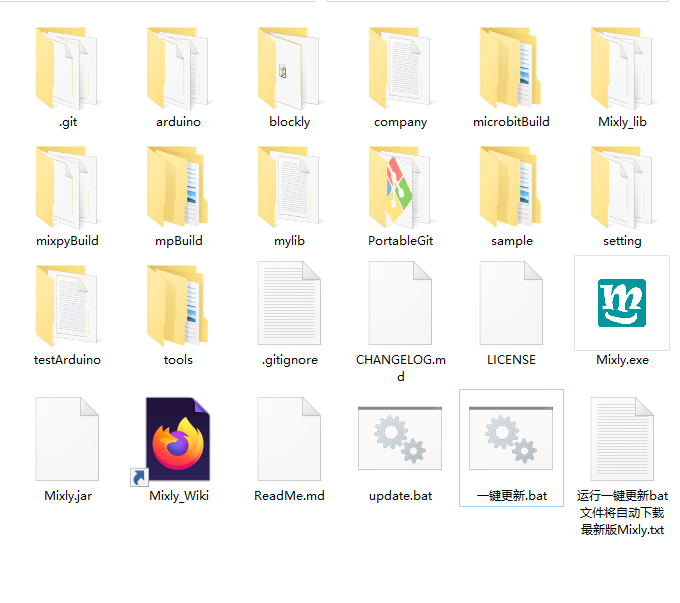

After the update is completed, the software directory will be as shown in the figure. You can double-click Mixly.exe to open the Mixly software.

Instructions for use of Mixly graphical programming software

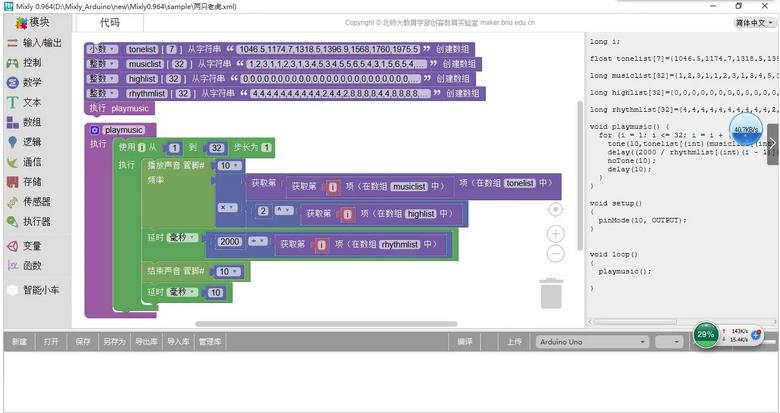

​ ​ 1. The programming interface is simple and bright.

The area on the left is the Blocks classification area; the middle is the programming area; the icons on the far right correspond to program centering, program block enlargement, reduction, and deletion; the gray toolbar at the bottom is the function menu; and the bottom is the information display area.

​ ​ 2. Powerful preset modules

In addition to common if/else conditional statements, for/while, mathematical operations, port reading and writing, Boolean operations and other basic program operations, Mixly is taught by Ardublock and also supports:

​​ 1. Complete type variable declaration:

​ ​ 2. Complete subroutine (can return data):

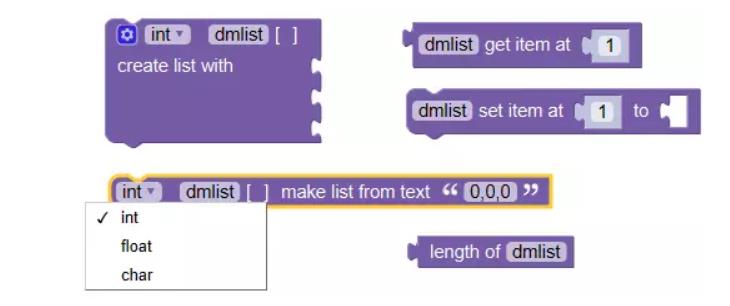

3. Array/list support:

​​ 4. Trigger interrupts and scheduled interrupts:

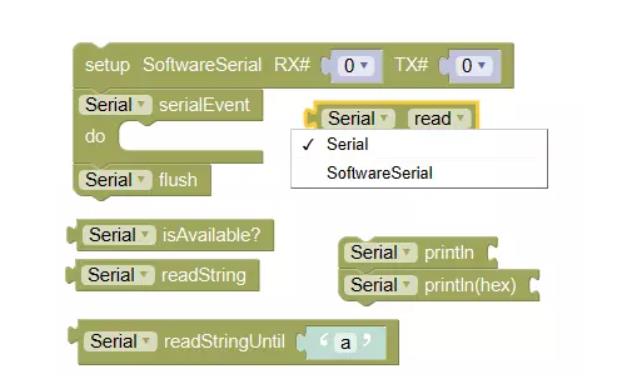

5. Serial communication (supports soft serial!):

​​ 6. Pulse detection:

7. Fan-out

Expand

Similar to Ardublock, Mixly also supports a series of rich enterprise library extensions such as Makeblock, DFroboot, microduino, seeedstudio, etc., which is very suitable for beginners.

Smooth operation

Mixly supports four deletion methods: drag the program block to the left out of the programming window, drag it to the trash can, delete key, and right-click delete. Ardublock only supports the first method;

Mixly supports disable freezing of unused batteries. Frozen batteries will not generate code; it feels great when you need to compare and test different ideas or methods or write multiple comparison programs at once!

The left is the normal program, the right is the frozen program, no Arduino code will be generated

Support program folding

When writing a long program or a program that contains different subroutine modules, the completed program is folded and the program is clear and easy to read.

Comparison of similar software for Mixly graphical programming

      Bohong AIScatchIt is a free graphical programming software suitable for beginners to learn programming. It is an advanced version developed independently to replace Scratch. It is not only suitable for teenagers, but also suitable for the majority of programming enthusiasts. In addition to developing animation games, it can also be used in high-end development such as interactive courseware, network communication, Internet of Things, artificial intelligence, and hardware drivers. There is no need to master any programming language. You can program by dragging the program blocks directly to the code editing area. Programming is as simple as building blocks. Multiple code blocks can be combined into a new program block, which is like a black box and only needs to use the functions of the customized program blocks without paying attention to how the functions are implemented. Elf is an object controlled by programming, which is composed of program blocks, picture shapes and sounds.

      VirtoolsThe latest version is a 3D programming tool that is more suitable for graphics and image programmers. The official version of Virtools can integrate existing commonly used file formats, such as 3D models, 2D graphics or sound effects, etc. Virtoolshi has more than 700 built-in behavioral modules. From initial product prototype design, virtual environment simulation to 3D interactive operation, it is easy to create a perfect immersive and lifelike experience.

Frequently asked questions about Mixly graphical programming software

      What should I do if the installation fails?

      Re-download the Mixly installation package and make sure the download source is reliable. At the same time, check whether the system meets Mixly's operating requirements.

      What should I do if it cannot be started?

      Install Mixly to a path that does not contain illegal characters, such as D:mixly. At the same time, check and close theMixly runs the system security software.

Mixly (Misiqi) graphical programming software update log

* * Added decimal option to mapping in math category

* Added display text module to dot matrix screen

* OLED adds Chinese character extraction module

* OLED expansion supports Nokia 5110, LCD12864 and other screens, and supports IIC SPI connection

* * Add Chinese character module to tool class

* Fix the problem that ESP32 cannot obtain time through NTP

* Optimize the time setting and reading of RTC clock class

* Added static display text module to dot matrix screen
