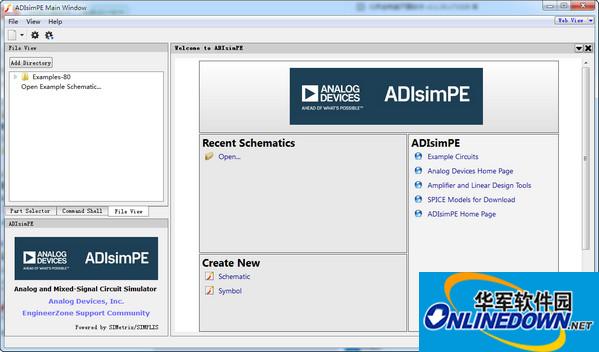

Circuit simulation software (ADIsimPE)

ADIsimPE is a circuit simulation software launched by ADI. It is mainly used for analog and mixed-signal circuit design and development. It has a rich library of ADI IC models and application principles, accurate/verified IC models and circuit behaviors.

Basic introduction

ADIsimPE is a circuit simulation software launched by ADI. It is powered by the SIMetrix/SIMPLIS simulator. It is mainly used for analog and mixed-signal circuit design and development, and supports two simulation engines, SIMetrix and SIMPLIS. Among them, SIMetrix mode is suitable for simulation Universal non-switching circuit, perfectly compatible with Pspice, used in industry standard SPICE models; SIMPLIS mode is a simulated piecewise linear system, which can simulate the working conditions of switching circuits. Compared with standard SPICE, it greatly improves stability, speed and accuracy, and is more suitable for switching power supply, PLL and ADC/DAC applications.

Function introduction

​ 1. You can choose a simulation engine based on SPICE or SIMPLIS

2. SIMPLIS can provide high-speed simulation and AC analysis functions of switching circuits

3. Rich library of ADI IC models and application principles

​ 4. Accurate/verified IC models and circuit behavior

5. Comprehensive schematic drawing and editing functions, making it easy to view and analyze waveforms

​ 6. Seamlessly integrated with the ADIsimPower design tool to create complete virtual prototype development functions.
