WinCE series total station USB driver

WinCE series total station usb driverIt is a WinCE series total station connected USB driver synchronization software, suitable for all series of Windows operating systems, supporting early WIN9X and current mainstream operating systems XP/WIN7, supporting WINSERVER2K3/2K8 systems, and used for WINDOWS/LINUX/MAC operating platforms. First, you need to turn on the instrument and enter the USB transmission waiting state. At this time, install the USB driver.

Driver installation

First, let the instrument power on and enter the USB transfer waiting state. Total station operation: power on the instrument

Connect the instrument and computer with a USB cable.

Press the MENU button to enter the menu. Press the 3 button to enter the storage management. Press the 2 button to enter the data transfer. Press the 2 button to enter the USB transfer mode. Press the 1 or 2 button to send or receive data interface.....

Finally, let the USB enter the interface waiting for connection. Now you can install the USB driver

If the "New hardware found" prompt appears in the taskbar in the lower right corner of the computer desktop, double-click its icon and go directly to step 1. Otherwise: Start directly with step 4.

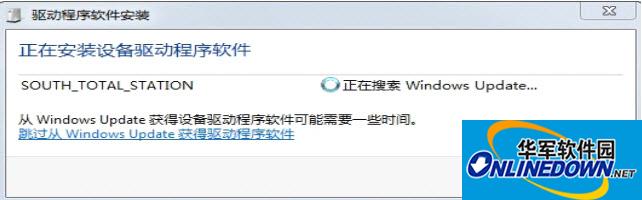

Step 1: Click "Skip getting driver software from WindowsUpdata"

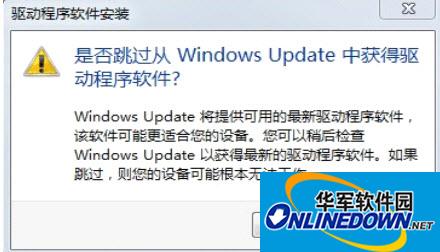

Step 2: Select "Yes"

;

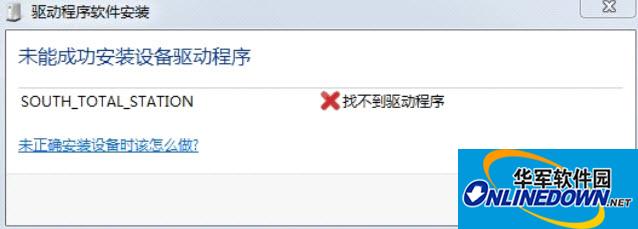

Step 3: Click "Close".

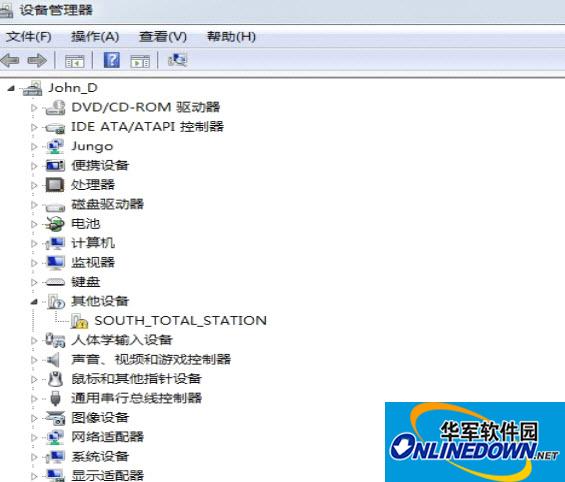

Step 4: Open the properties of "My Computer", click the "Hardware" tab, and click "Device Manager". The window that opens is as shown in the figure:

Notice: (yellow exclamation mark)

Step 5:

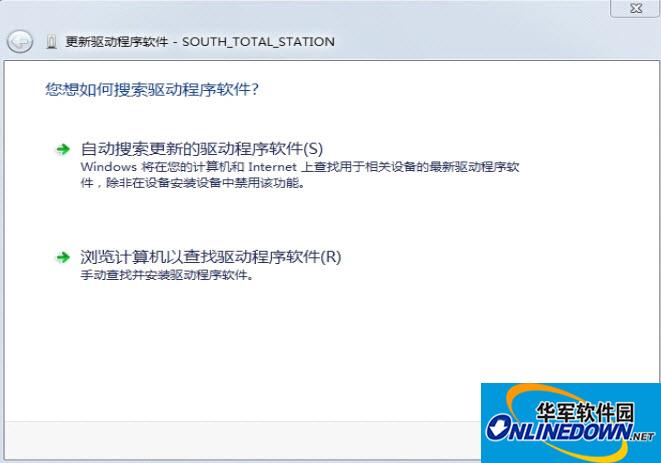

Right-click SOUTH_TOTAL_STATION and click "Update Driver Software" to enter the following interface (Figure 5):

Step 6: Select "Browse my computer for driver software (R)" to enter Figure 6:

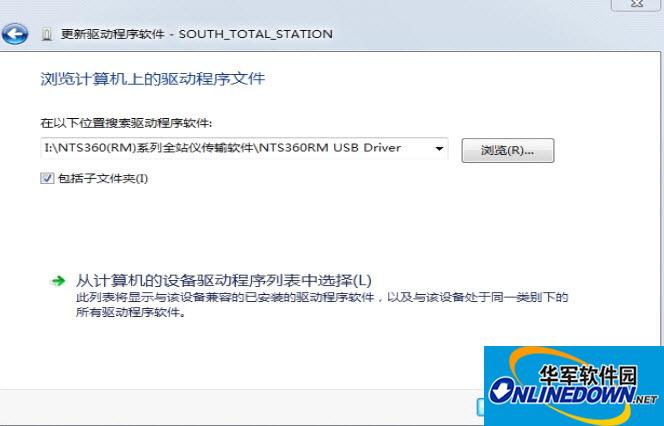

Step 7: This driver is suitable for 32-bit systems and 64-bit systems) Click "Browse (R)" to find the "360RM Transfer and USB Driver" folder in the CD. (Pay attention to the path and check "Include subfolders") Click to enter, click "Next" and the screen will appear as shown in Figure 4:

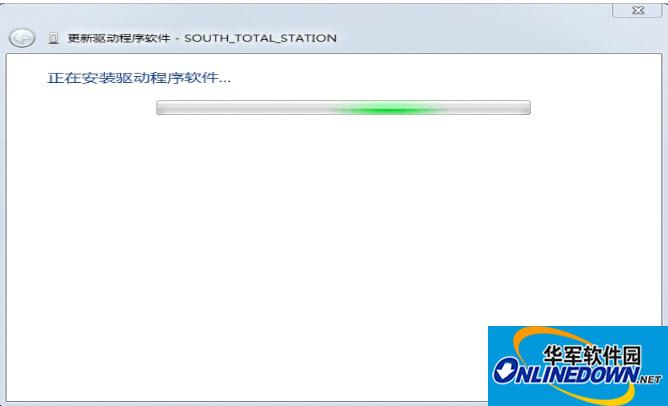

Step 8: Wait for 1-2 minutes, the page will appear as shown in Figure 8:

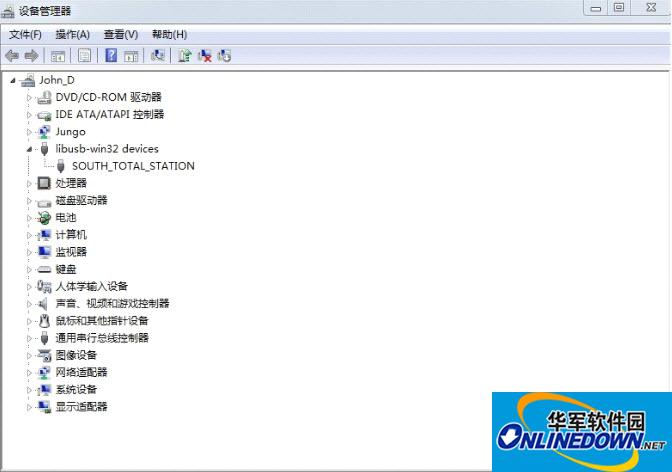

Step 9: Click Close to complete the driver installation. Enter "Device Manager" again

observe

The discovery (yellow exclamation point) disappears, indicating that the driver has been installed successfully.
