CAD quick view

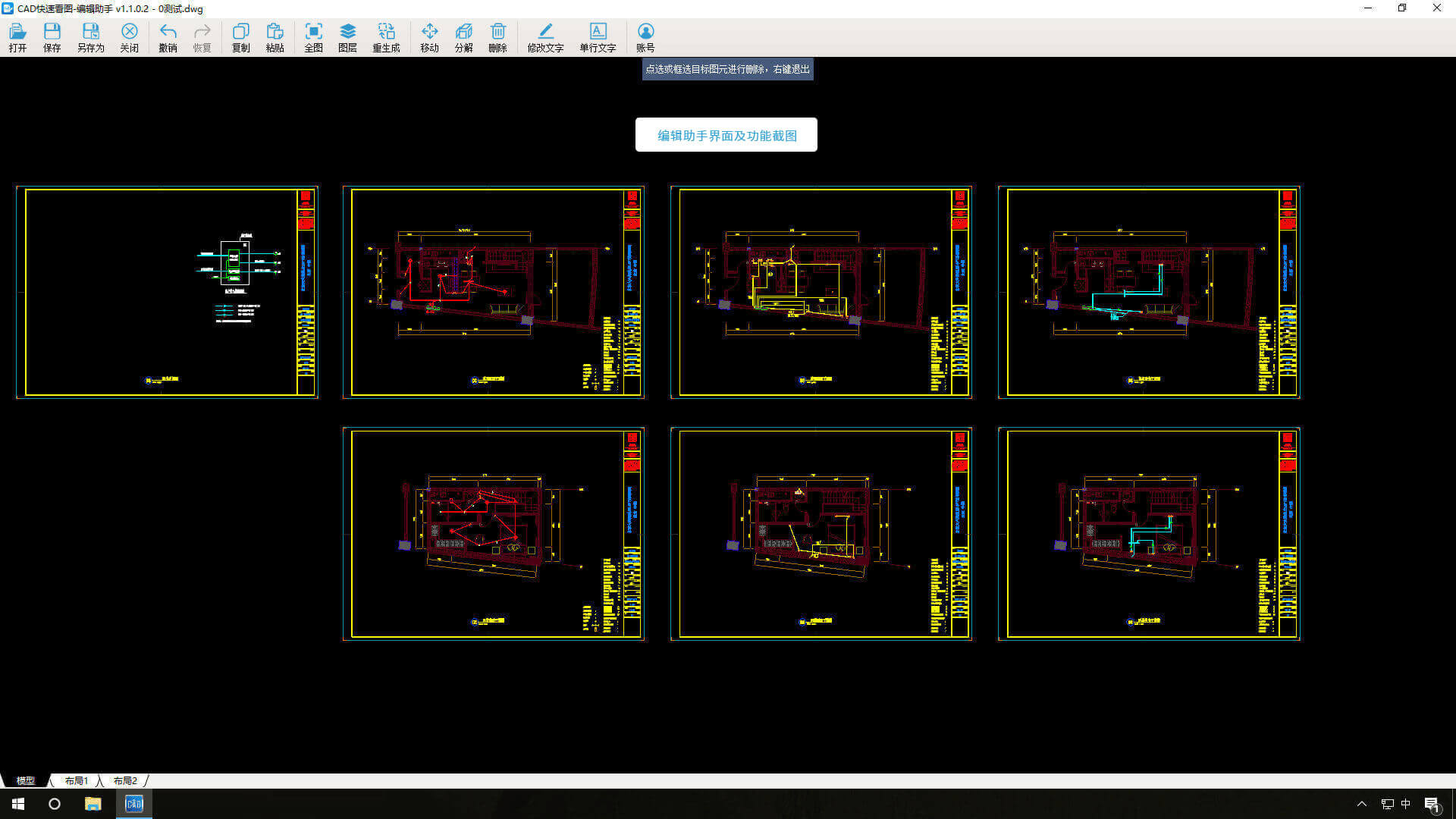

CAD quick viewIt is launched by Glodon CompanyPicture viewing software, CAD quick view can help you view drawings without installing CAD. CAD quick viewing supports direct viewing of all versions of DWG drawings and Tianzheng drawings, and the drawings can be opened quickly. Here you can view all pictures and preview CAD drawings to help users provide drawing office services. It supports multiple format files and can collect drawings.WindowsThe platform is one of the most ideal CAD viewing software on the market. Interested friends, come to Huajun Software Park to download it!

Frequently Asked Questions about Quick Viewing of CAD Drawings

      Question one:How to measure the area of a figure with arcs?

The special-shaped area of arc + straight line can be easily measured by clicking to select the line segment. When encountering an arc, placing the mouse on the arc will turn into "Back". After turning into "Back", click directly to select the entire arc. After checking all the graphics edges and closing them, you can get the area data.

      Question 2: How to convert CAD quick viewing pictures intopdfFormat?

​​Click on the A character in the upper left corner of the CAD graphics interface.

​​Select [Output]-[PDF] in the pop-up window.

​​Set the name and save path of the PDF and click the [Save] button.

CAD Quick Viewing Tips

      How to use CAD to quickly view and print drawings

1. OpenCAD quick view, open the drawing that needs to be converted, click the [Print] option in the upper right corner,

​​ 2. After clicking print, you can use the mouse to move and zoom the drawing for adjustment or directly use the "frame selection print range" function to set it.

3. Click [Frame Select Printing Range], you can hold down the left mouse button to see the cross icon, click the right mouse button to cancel the operation, and then drag and drop to select the range you want to print.

​​ 4. Click Print Settings in the upper left corner, and the settings dialog box will pop up. You can set the number of printed pages and paper orientation according to your needs, and click OK to start printing.

CAD quick viewing software functions

      1. Quickly open pictures and display accurately

Quickly open DWG drawings without fonts, and smoothly display all versions of drawings

      2. Import, export and share with one click

You can see the drawings and annotations after importing them from other computers or mobile phones. It supports one-click export of kkf files. Local or cloud disk drawings can be exported.

3. Measurement statistics

​​You can view, mark, measure distances, etc. on CAD drawings, and automatically count the measured length and area

   4. Continuous measurement, special-shaped area

Able to quickly measure area and length, both straight lines and arcs

Features of CAD quick viewing software

​ ​ 1.Support text search within the layout

​ ​ 2. Text search supports special-shaped areas

3. The area offset function supports retaining the original annotations

​ ​ 4. Add shortcut keys for common functions of the editing assistant

CAD Quick View Installation Tutorial

​ ​ 1. Download CAD Quick View on this site, double-click the .exe file to enter the CAD Quick View installation interface, click [Install Now], and the software will be installed by default. Or click [Change Directory] to choose the installation location for CAD Quick View. After completing the selection, click [Install Now].

2. The CAD quick viewing software is being installed, you need to wait patiently for the installation to be completed.

Recommended similar software for quick CAD viewing

1.HaochenCAD2017It is a professional 3D drawing tool that uses tile sharing technology to improve tile processing performance and significantly reduce the memory usage of drawings with a large number of tiles. Haochen CAD2017 has good functional stability and is a good helper for users to design and share drawings. It is widely used in civil construction, decoration, urban planning, and many other fields.

   Download address:http://softwaredownload4.com/soft/588586.htm

2.Jinzhou CAD converterThe official version is a versatile CAD format conversion tool. The latest version of Jinzhou CAD Converter supports converting CAD to PDF, JPG, etc. Multiple file formats, high conversion quality and fast conversion speed. Jinzhou CAD converter has a simple interface and is compatible with the mutual conversion of CAD versions, covering dozens of versions from CAD2000 to CAD2018, improving drawing efficiency.

      Download address:http://softwaredownload4.com/soft/10031737.htm

3.CAD mini drawingIt is a free CAD drawing software. CAD mini drawing software is small but very powerful and easy to operate. It is a good helper for making CAD. It is compatible with various other versions of CAD software (all versions of AutoCAD from R14 to 2013). It not only supports multiple windows but also can browse DWG drawings at extremely high speeds.

Download address:http://softwaredownload4.com/soft/378406.htm

CAD quick view update log

​​ 1. Optimize the way to quickly open drawings by calling CAD from external applications

2. Supports opening drawings in compressed files (zip, rar format) directly from external applications

3. Optimize some interface operations
