adb toolkit

adb toolkitIt is developed by Google to provide services specifically for Android mobile phone users.System auxiliary tools. The adb toolkit is powerful and can help users manage all your Android mobile devices and even emulators. You can also use it toFlash the machine, install related programs, etc. It can be said to be an essential tool for Android development and testers. Huajun Software Park provides you with free download of adb toolkit 2025. Friends who like adb toolkit come to Huajun Software Park to download and experience it!

How to use adb toolkit

1. Enter the fastboot mode on your phone:

First turn off the phone (note that you need to turn off the "quick start" function in the settings menu first, or unplug the battery after shutting down, and then reinsert it after more than 2 seconds), then press the volume down button and the power button at the same time (for tablets, please press the volume up button and the power button at the same time), and hold for more than 10 seconds to enter fastboot mode.

2. Connect the mobile phone and PC:

Use a USB cable to connect the mobile phone and the PC, open the command line window of the PC, enter the ADB installation directory, and confirm that the connection between the mobile phone and the PC is normal. The confirmation method is to enter fastboot devices in the command line window. You can see the normal connection information, such as: 9e42530e fastboot.

3. Execute the unlock command:

Enter fastboot oem unlock ****************** in the PC command line window. The * number is the 16-digit unlock password, for example: fastboot oem unlock 1234567812345678.

4. Wait for the phone to be unlocked:

After entering the unlock password, the phone will automatically restart. If the password is correct, the phone will enter the factory reset mode. After the factory settings are restored, the phone automatically restarts and enters the standby interface to complete the entire unlocking operation. If the user enters incorrect password information, the phone will prompt an error message and enter the standby interface.

5. Check whether the phone is successfully unlocked:

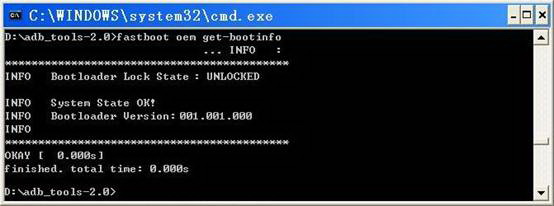

Repeat steps 1 and 2, and then enter fastboot oem get-bootinfo in the command line window of the PC. The status information of the current phone's bootloader will be displayed, such as "Bootloader Lock State: LOCKED", which means that the bootloader is still locked. Please re-unlock the operation or confirm whether the password is correct before proceeding; if "Bootloader Lock State: UNLOCKED" is displayed, it means that the phone has been unlocked and the flash operation can be performed.

adb toolkit FAQ

1. What is the reason why the adb toolkit crashes?

This is caused by abnormal code execution and not being caught and handled. Users can try to restart the computer.

2. How to unlock the phone with adb toolkit?

First run the adb toolkit. Note that after decompressing the software, place it in the root directory of the computer's C drive. Connect the mobile phone. The connection here refers to the connection without turning on the USB mode. As long as the mobile phone shows that it is charging after the connection. Then open adb and choose to delete the file named *.key, so that the lock screen password can be cleared.

adb toolkit features

Device connection management: Supports USB and Wi-Fi connections to Android devices, and can check the connection status.

Convenient file transfer: files can be quickly pushed and pulled between computers and devices.

Application debugging management: can install, uninstall, start applications, and clear application data.

The system has various operations: you can enter the Shell terminal, check logs, and take screenshots.

Analog input control: can send analog events such as key presses and touches.

Rich in advanced functions: port forwarding, backup and recovery, switching developer options, etc.

adb toolkit installation steps

1. First download the adb tool package from this site. The adb tool mainly contains the following files, as shown in the figure:

2. adb is an installation-free tool. When using adb, you only need the adb tool to be called by the cmd command.

3. Click "Start" in the lower left corner of the computer, enter "cmd" in the command window, and press Enter

4. After the above operation is completed, enter the command prompt interface. It can be seen that the default environment variable path is "C:UsersAdministrator"; the display on different computers is slightly different. Some computers will display "C:Userszhangsan", where "zhangsan" is the user name of the local user.

5. Copy the adb tool to the above path. If the previous step showed C:UsersAdministrator, then put adb in the C drive->User->Administrator folder. If the previous step showed C:Userszhangsan, then put adb in the C drive->User->zhangsan folder. (Note that you copy the path directly, do not copy it as a whole in a folder)

6. Close the command prompt window and reopen it (that is, repeat the first step), enter adb in the command prompt, and press Enter. A lot of help information related to adb debugging will be printed in the command prompt.

Installation summary: This software is green software and does not require installation, but it needs to call the command window to enable it. The user only needs to press the "Windows" + "R" keys to bring up the command window and enter cmd, press Enter and follow the steps.
