Recently, some friends have consulted the editor about how to mark chamfers in AutoCAD 2010? Here is what AutoCAD brings to you Friends in need can learn more about the method of marking chamfers in 2010.

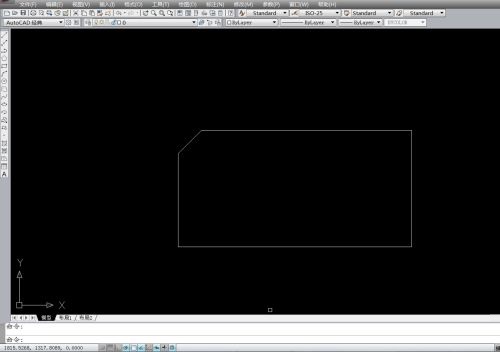

The first step: First open [AutoCAD 2010], draw a graphic on the drawing, and draw a chamfer (as shown in the picture).

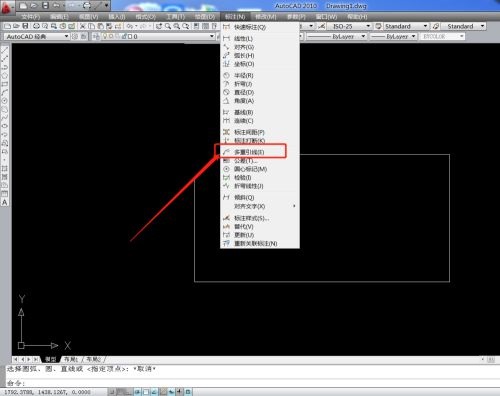

Step 2: Secondly, click [Annotation] in the top column of the drawing interface. Click on the [Multiple Leaders] command in the pop-up interface (as shown in the figure).

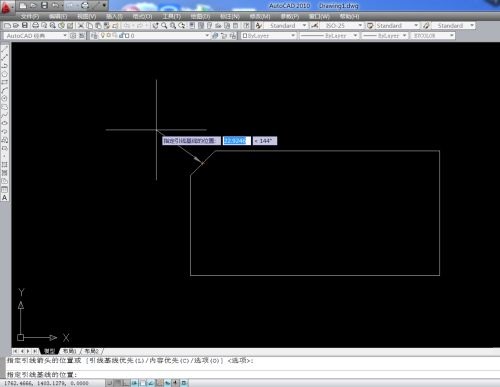

Step 3: Place the mouse cursor in the middle of the chamfer, then pull it to the appropriate [length] and [angle], and press the [left button] of the mouse to complete the operation (as shown in the picture).

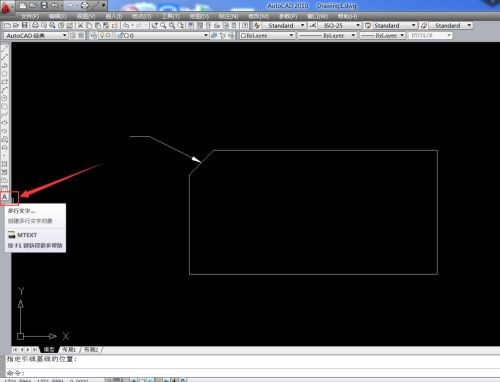

Step 4: Click the [Multi-Line Text] command in the [Toolbar] on the left side of the drawing interface (as shown in the picture).

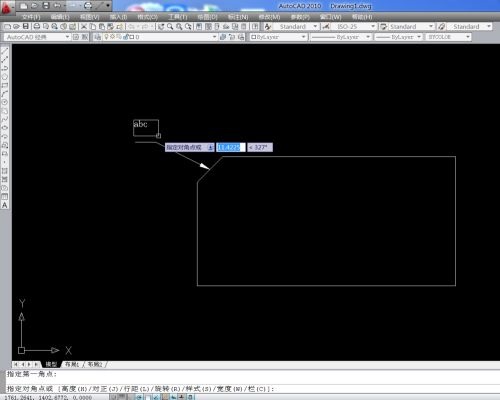

Step 5: Place the mouse cursor above the [Lead Line], hold down the left mouse button, and pull the [Text Box] to the appropriate size (as shown in the picture).

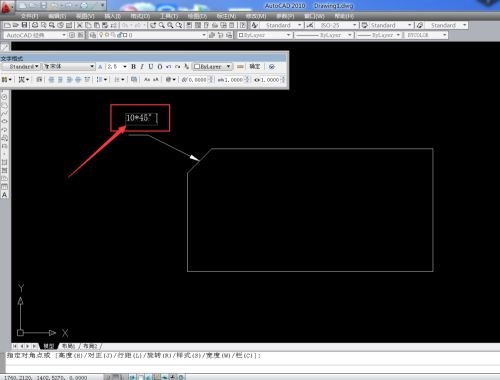

Step 6: Enter the chamfering parameters in the newly created [text box], for example (10*45°) to complete the chamfering label (as shown in the picture).
The above is the entire content of how to mark chamfers in AutoCAD 2010 brought to you by the editor. I hope it can help you.
