Recently, many friends have expressed that they still don’t know how to draw equal walls in Tianzheng Architectural CAD. The following editor will explain to you the method of drawing equal walls in Tianzheng Architectural CAD. I hope it can help you.

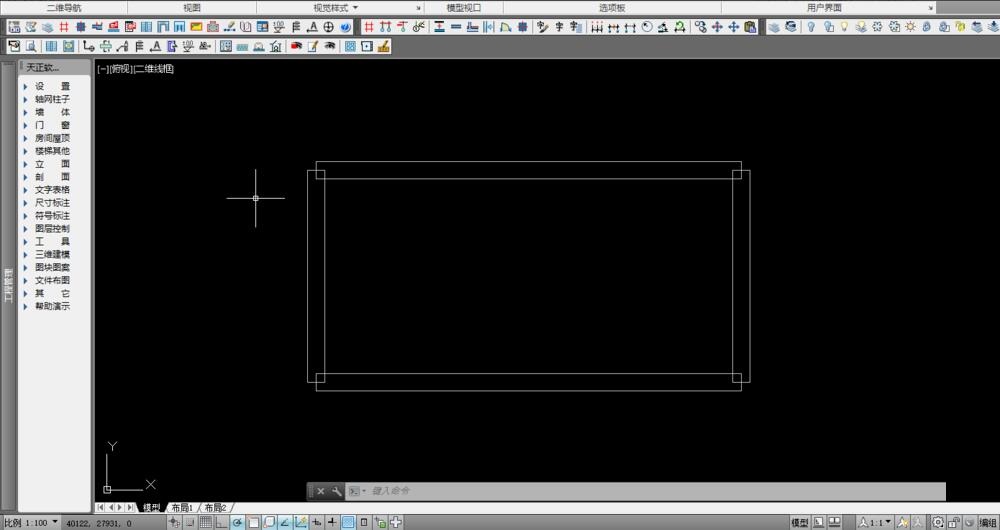

First, open Tianzheng Building and draw four sections of interconnected walls, as shown in the picture below

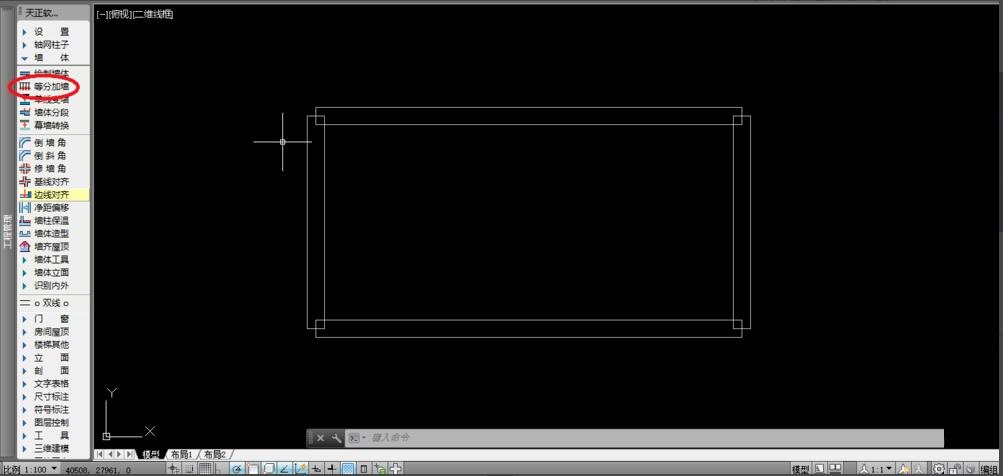

Click "Wall", then click the secondary directory "Add Walls in Equal Parts", as shown in the figure below

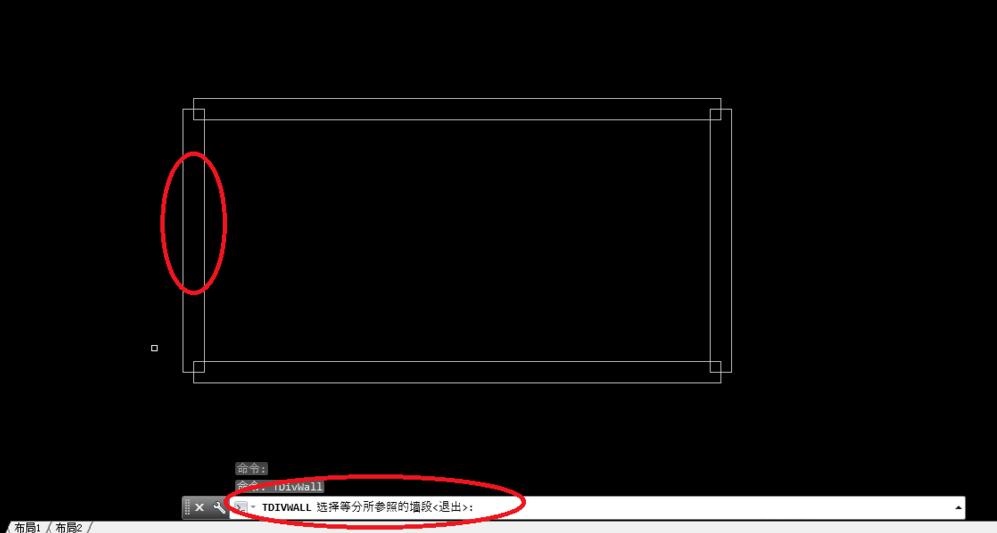

According to the command line prompt "Select the wall segment referenced by the equal division"; select the wall segment, as shown in the figure below
After selecting the wall segment, the "equal fraction plus wall" editing page will automatically open, and select the "equal fraction", "wall thickness", "material", and "purpose" you need in sequence, as shown in the figure below
According to the command line prompt "Select a wall segment as another boundary"; select the wall segment, as shown in the figure below

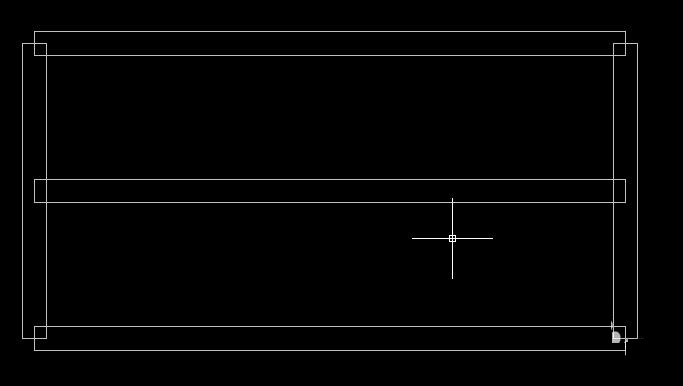

After the drawing is completed, as shown in the figure below
The above is the method of drawing equal parts of the wall in Tianzheng Architectural CAD explained by the editor. For those who are not familiar with it, hurry up and learn it.
