How to set layers using AutoCAD2010-AutoCAD2010 tutorial

Time: 2020-11-11Source: Huajun Software TutorialAuthor: Huluwa

How to set layers using AutoCAD2010? How to operate it? Below, the author will bring you the method of setting layers using AutoCAD2010. Friends who don’t know how to do it can learn it. I hope it will be helpful to everyone.

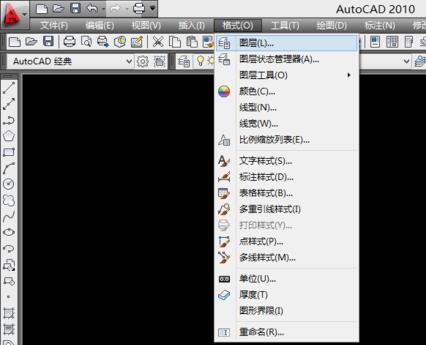

First, open AutoCAD2010 and select "Format" - "Layer".

How to set layers in autocad2010

Click the icon shown by the arrow to create a new layer.

How to set layers in autocad2010

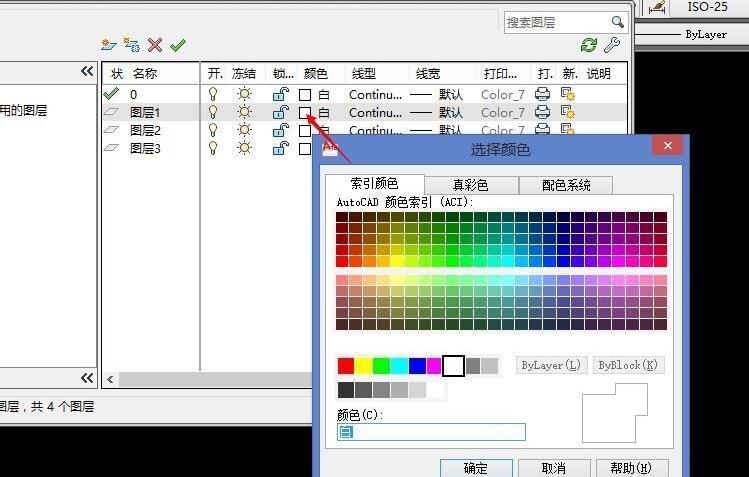

Click the color indicated by the arrow to change the color of the line on the layer you are on.

How to set layers in autocad2010

Click on the line indicated by the arrow, and then click Load below to select other types of lines.

How to set layers in autocad2010

Click the "Print" icon, and you will see a difference sign displayed on the icon. This means that when the drawing is printed, the lines of this layer will not be displayed, which means that the lines of this layer will not be printed. Click the icon again to cancel.

How to set layers in autocad2010

The above is the method of setting layers using AutoCAD2010 brought by the author. Friends in need can take a look.
