Recently, some friends have consulted the editor about how to install the WIN764-bit system on the Nantian pr2e printer. The following will bring you the specific method of installing the WIN764-bit system on the Nantian pr2e printer. Friends in need can come and learn more.
If Nantian pr2e needs to successfully install the driver, the printer settings and the computer driver settings must be the same to work properly. This printer can use IBM, LQ, OKI emulation methods, and can use serial port or parallel port to print.
Here we use parallel port installation; LQ simulation driver.
This tutorial refers to the Epson driver that is easy to download on the Internet and uses the Epson LQ-1600 driver.

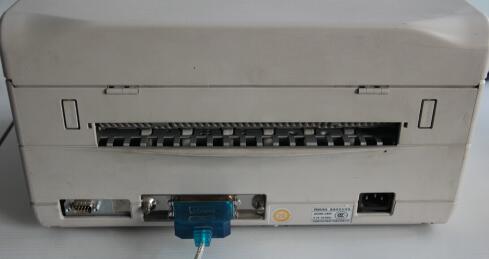

First, we connect the printer and computer through a dedicated cable, and then connect the power cord. At this time, the printer is in standby mode.
1. We first install the setting driver on the computer:

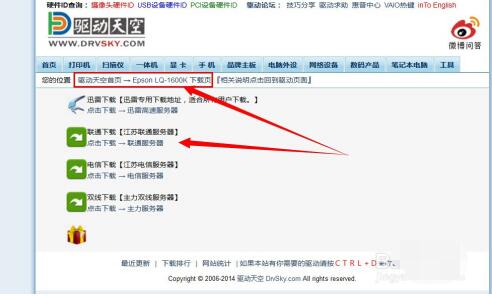

(1) Turn on the computer, open the web page, search for Epson LQ-1600K win7 64-bit, and then download
(2) After downloading, we open the driver to install it. Please note during the installation process: since we are using a parallel port to USB cable.

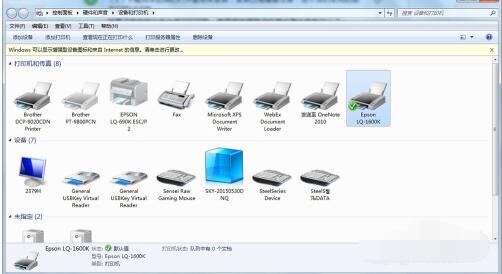

If you have not installed a printer on your computer before, just follow the driver installation steps to install it;

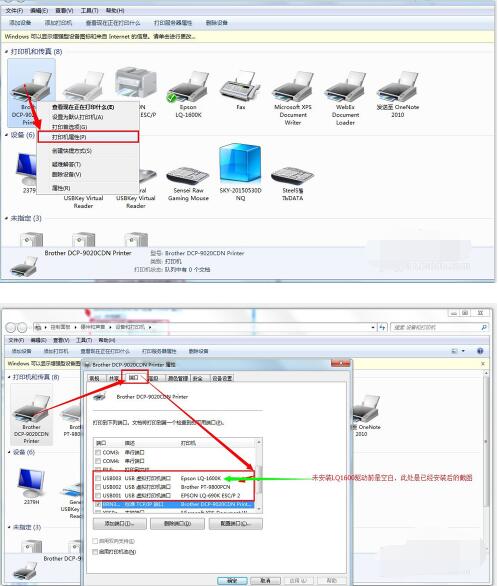

If you have installed a printer with a USB cable before, then we may have used one or two of the computer ports, so we need to see which ports are used and select the unused ports to set. The steps are as follows: right-click one of the installed printers, select Printer Properties, then select the port in the pop-up dialog box, and then find the USB option in the lower bar, as can be seen from the picture Before installing the QL-1600K, two ports have been occupied. If we select USB001 or USB002 without knowing it, we will not be able to successfully install the printer.
2. Basic setting method of Nantian printer: To carry out parameter setting (SET-UP), you must follow the following operations: Illustrated operation process ● Shut down. ● Press the STATION1 and STATION2 keys at the same time, then turn on the printer until the printer initialization is completed, and then release your hand. ● Insert a piece of A4 size paper into the paper input slot. At this time, the printer prints out a line of prompt information: Press STATION1 to accept the current parameters. Press STATION2 to select the next parameter. Press LOCAL to start setting parameters. ● Press the LOCAL key to enter the setting state. At the same time, the following line is printed out: MENU: Configuration Mode ● If the STATION1 key is pressed at this time, it will mean that the current parameter "Configuration Mode" item is recognized and the "Configuration Parameter Settings" under "Configuration Mode" are selected one by one. ● If the STATION2 key is pressed at this time, it will mean that the current parameter "Configuration Mode" item is not selected. At this time, the printer will print out: Do not press it randomly, and continue with step (3)! (3) Select: Configuration mode, parallel port simulation: Nantian-LQ. (4) Settings, PNS #4002K, paper feeding mode: continuous paper. Continue the previous step, press the STATION2 key, select until "LQ Configuration" is printed, and then press the STATION1 key to confirm. Check whether the LQ settings are correct. Generally, there is no need to modify them. Press STATION1 until it prints out again: MENU: Configuration mode. Press STATION1 until it prints out again: Parallel port simulation: Nantian-LQ. In addition, if it is not "Nantian-LQ", select STATION2 and change it to "Nantian-LQ". Press STATION1. Press STATION1 until it prints out again: Select PNS, No. After changing the STATION2 key to "Yes", press STATION1. Press STATION1 until it prints out again: PNS #4002K, continuous paper:
Press LOCAL, then STATION1 to save parameters. You will hear a beep, shut down and restart to get it done!

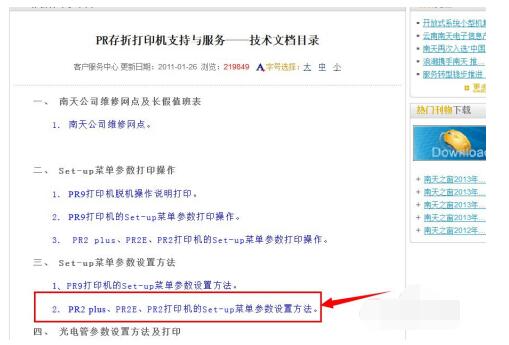

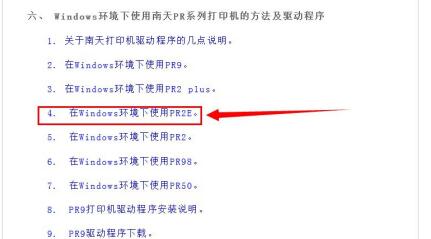

In summary, we can complete the settings of the Nantian pr2e printer. For these steps and methods, please refer to the driver setting method page on the Nantian official website. This is how to set it up on the computer
This is the printer side setting method
The above is all the content brought to you by the editor. Have you all learned it?
