Recently, some friends have consulted the editor about how to draw fillets in AutoCAD 2014. The following will bring you the detailed operation of drawing fillets in AutoCAD 2014. Friends in need can come and learn more.

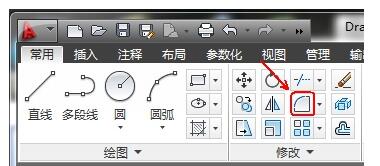

1. Select "Fillet" on the "Modify" toolbar of AutoCAD2014; or execute the command FILLET.
2.AutoCAD2014 command prompt:
FILLET Select the first object or [Discard (U) Polyline (P) Radius (R) Trim (T) Multiple (M)]: (At this prompt, select Radius (R) or enter R at the command line and press the space bar.
3. FILLET specifies the fillet radius <0.0000>: (specifies the fillet radius) For example, enter the fillet radius of 100, and then press the space bar.

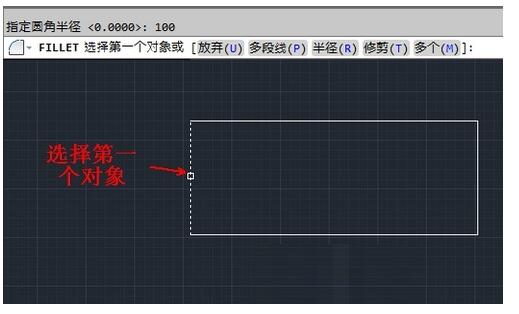

4.FILLET select the first object or [Discard (U) Polyline (P) Radius (R) Trim (T) Multiple (M)]: (Select the first object in the drawing window)

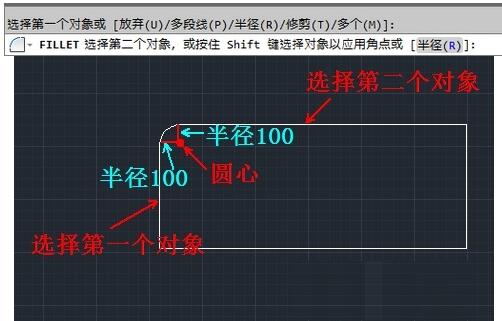

5.FILLET select the second object, or hold down the Shift key to select the object to apply corner points or [Radius (R)]: (select the second object in the drawing window)
Above, I have shared with you the detailed operation of drawing fillets in AutoCAD 2014. Friends in need should hurry up and read this article.
